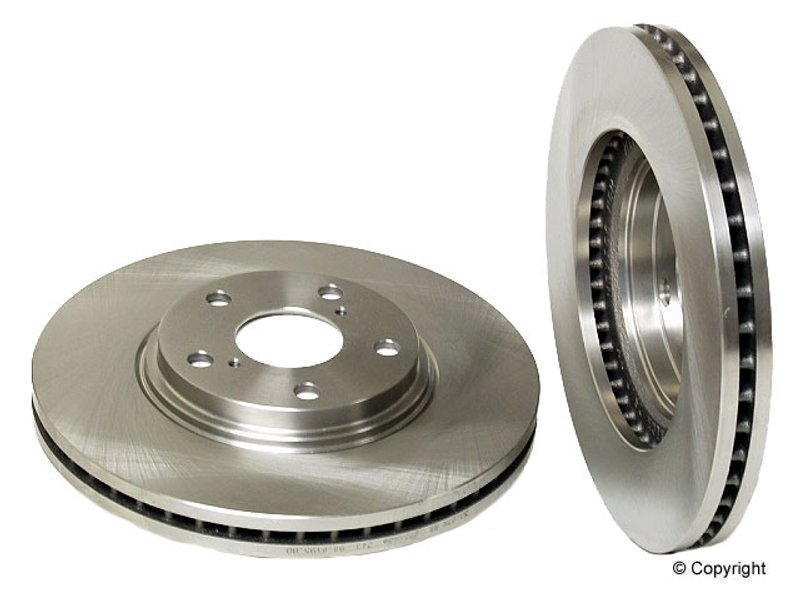

Brembo 09.A110.11 Disc Brake Rotor - Front

Overview of Brembo 09.A110.11 Disc Brake Rotor

The Brembo 09.A110.11 disc brake rotor is engineered for reliable braking performance on select Lexus and Toyota vehicles. Designed with durable grey cast iron and a UV coated finish, this rotor offers consistent stopping power and corrosion resistance for models like the Camry, ES300, ES330, Highlander, and RX300.

• Material: Grey cast iron for strength and heat dissipation
• Centering Diameter: 62 mm for precise fitment
• Height: 49.3 mm ensuring proper rotor alignment
• Minimum Thickness: 26 mm to maintain safety standards
• Nominal Thickness: 28 mm for optimal braking surface
• Number of Holes: 5 for secure mounting
• Outside Diameter: 296 mm compatible with specified vehicles
• Rust Resistant Coating: UV coated to reduce corrosion
• Rotor Type: Vented design for improved heat management
• Torque Specification: 103 Nm for correct installation

About the Premium UV Coated OE Equivalent Rotor Line

The Premium UV Coated OE Equivalent Rotor line by Brembo is designed to meet original equipment specifications while providing enhanced corrosion resistance through a UV protective coating. This product line ensures that the rotor maintains its structural integrity and appearance over time, making it suitable for drivers seeking OE-level quality and durability on Lexus and Toyota vehicles.

Detailed Product Description

This Brembo disc brake rotor (part number 09.A110.11) is constructed from grey cast iron, a material known for its excellent thermal conductivity and wear resistance. The vented rotor design improves heat dissipation during braking, reducing the risk of brake fade under demanding conditions. With a 296 mm outside diameter and 5 mounting holes, it is engineered to fit specific Lexus and Toyota models including the Camry, ES300, ES330, Highlander, and RX300. The UV coating provides an additional layer of protection against rust and corrosion, extending the rotor's service life. The rotor's dimensions, including a centering diameter of 62 mm and a height of 49.3 mm, ensure precise fitment and alignment with the vehicle's braking system.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing corrosion and rust buildup on original rotors
• Improving braking performance on Lexus Camry and Toyota Highlander models
• Restoring proper rotor thickness to meet safety standards
• Reducing brake fade with vented rotor design for consistent stopping power

Installation Notes and Tips

• Ensure torque specification of 103 Nm is followed for mounting bolts
• Check rotor thickness before installation; minimum thickness is 26 mm
• Clean hub surface and centering diameter (62 mm) for proper rotor seating
• Inspect brake pads and replace if worn to prevent uneven rotor wear
• Use proper tools to avoid damage to the UV coating during installation

Quality Assurance and Warranty

Brembo's Premium UV Coated OE Equivalent Rotor line is manufactured to meet strict quality standards consistent with original equipment. The UV coating enhances corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Brembo products typically come with manufacturer-backed quality assurance to support reliability and performance on Lexus and Toyota vehicles.
