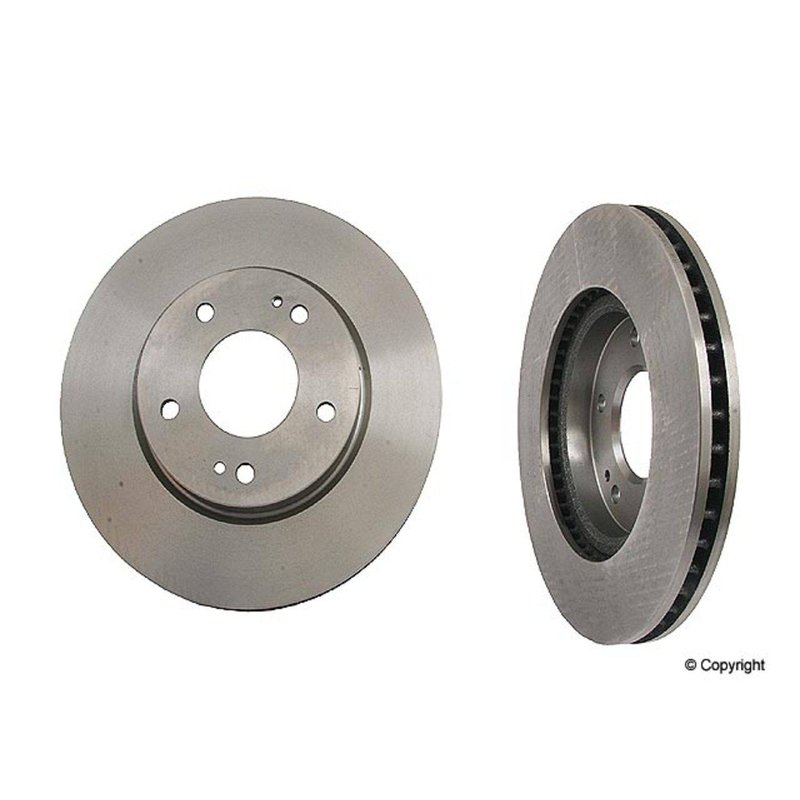

Brembo 09.A148.11 Disc Brake Rotor - Front

Overview of Brembo Premium UV Coated OE Equivalent Rotor

The Brembo 09.A148.11 disc brake rotor is engineered for reliable braking performance on select Chrysler, Dodge, and Mitsubishi vehicles. Designed with a vented structure and a UV resistant coating, this rotor offers durability and consistent heat dissipation for models like the Eclipse, Galant, Lancer, Outlander, Sebring, and Stratus.

• Material: Grey cast iron for strength and heat resistance
• Vented rotor design for improved cooling
• UV coated surface to resist rust and corrosion
• Outside diameter: 276 mm, suitable for specific vehicle fitments
• Centering diameter: 69 mm with 5 mounting holes
• Height: 45.7 mm, nominal thickness: 26 mm, minimum thickness: 24.4 mm
• Torque specification: 98 Nm for proper installation

Details on the Premium UV Coated OE Equivalent Rotor Line

The Brembo Premium UV Coated OE Equivalent Rotor line is designed to meet original equipment specifications while providing enhanced protection against rust through a specialized UV coating. This coating extends the rotor's service life by reducing corrosion, which is especially beneficial in humid or wet environments. The vented design improves heat dissipation, helping maintain braking efficiency under demanding conditions. The 09.A148.11 rotor is part of this line, ensuring compatibility and performance for the specified Chrysler, Dodge, and Mitsubishi models.

Technical Specifications and Compatibility

This disc brake rotor is constructed from grey cast iron, a material known for its durability and thermal stability. The vented rotor design allows air to flow between the rotor surfaces, reducing heat buildup during braking. With an outside diameter of 276 mm and a centering diameter of 69 mm, it fits vehicles equipped with a 5-hole mounting pattern. The rotor's height is 45.7 mm, with a nominal thickness of 26 mm and a minimum thickness of 24.4 mm, ensuring it meets safety and performance standards. The torque specification for installation is 98 Nm, which should be followed to maintain proper fit and function.

Compatible Vehicles and Applications

• Chrysler Eclipse
• Dodge Stratus
• Dodge Sebring
• Mitsubishi Lancer
• Mitsubishi Galant
• Mitsubishi Outlander

This rotor is designed to replace original equipment parts on these models, providing consistent braking performance and durability.

Common Issues Addressed by This Rotor

• Brake rotor warping due to heat buildup
• Corrosion and rust on rotor surfaces
• Reduced braking efficiency from worn or thin rotors
• Brake noise caused by uneven rotor wear
• Vibration or pulsation during braking

Installation Notes and Tips

Ensure the rotor surface and hub are clean and free of debris before installation. Use the specified torque of 98 Nm when tightening mounting bolts to avoid rotor distortion. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Verify rotor thickness before installation; do not install if below the minimum thickness of 24.4 mm. Proper bedding-in of new rotors and pads will help achieve consistent braking results.

Quality Assurance and Warranty

Brembo rotors are manufactured to meet OE standards for fit, form, and function. The Premium UV Coated OE Equivalent Rotor line includes corrosion-resistant coatings to extend service life. While specific warranty details are not provided here, Brembo products typically come with manufacturer-backed quality assurance to ensure reliability and performance.
