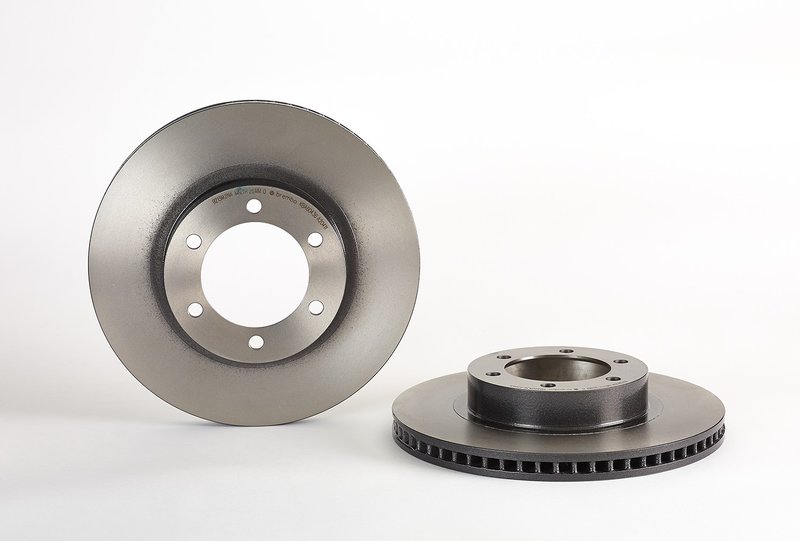

Brembo 09.A204.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

The Brembo 09.A204.11 is a front disc brake rotor built as a direct OE-style replacement for select Lexus GX470 and Toyota 4Runner applications. It uses a UV-coated surface for corrosion resistance and cleaner handling during installation, while the vented design supports consistent braking performance.

Key Features

• Grey cast iron construction for stable braking performance
• UV coated finish helps protect the rotor surface, including braking plate surfaces
• Vented rotor design for front axle use
• 338 mm outside diameter, 108 mm centering diameter, and 67.3 mm height
• Minimum thickness: 26 mm; nominal thickness: 28 mm
• Six-hole bolt pattern with 112 Nm torque spec
• Intelligent marking location shows part number and minimum thickness

Product Line Details

Brembo’s Premium UV Coated OE Equivalent Rotor line focuses on direct replacement fitment and corrosion protection. The solvent-free UV coating is used to protect the rotor surface, while the cast iron construction and vented layout support braking feel and driving comfort. For brake service, Brembo recommends replacing rotors and pads together to restore braking performance.

Detailed Description

This Brembo rotor, part number 09.A204.11, is engineered for front brake service on 2003-2009 Lexus GX470 and 2005-2009 Toyota 4Runner models, including 2003-2009 Toyota 4Runner front applications with 17-inch rotors. The rotor’s grey cast iron build and vented profile help manage heat and reduce noise and vibration where applicable. The UV-coated finish adds surface protection and supports long-term appearance and corrosion resistance. This part cross-references Raybestos Brakes 980160 and PowerStop JBR975 for the same application.

What It Helps Address

• Brake pulsation from worn or out-of-spec front rotors
• Noise and vibration during braking
• Surface corrosion on exposed rotor areas
• Reduced braking consistency from heat-stressed rotors
• Service replacement for OE-equivalent front brake maintenance

Installation Notes and Tips

Fits 2003-2009 Lexus GX470, front. Fits 2005-2009 Toyota 4Runner, front. Fits 2003-2009 Toyota 4Runner, front, with 17in rotors. Replace pads at the same time as the rotor to help restore braking performance. Verify rotor dimensions, hub centering, and minimum thickness before installation. Confirm torque to 112 Nm during assembly.

Quality Assurance

Brembo positions this rotor as a direct replacement that meets or exceeds OEM specifications. The UV-coated surface, cast iron construction, and OE-equivalent design support consistent fitment and braking service on the listed vehicles.
