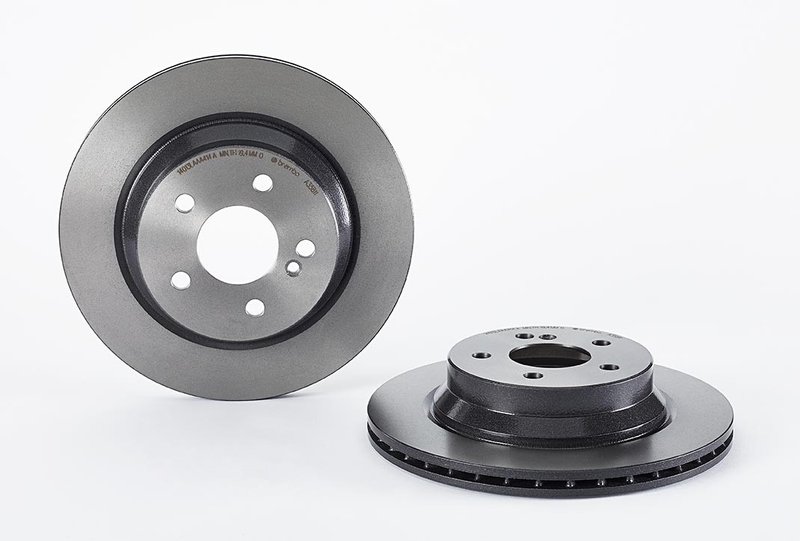

Brembo 09.A358.11 Disc Brake Rotor - Rear

Brembo Rear Rotor for Mercedes-Benz

The Brembo 09.A358.11 is a Premium UV Coated OE Equivalent Rotor built for rear brake service on select Mercedes-Benz models. It combines a UV-protected surface with high carbon cast iron where applicable to help reduce noise and vibration while supporting consistent braking feel.

For drivers servicing Mercedes-Benz E-Class, CLS, and GLK rear brakes, this rotor is engineered as a direct replacement that follows OEM specifications and includes the details needed for a clean, accurate install. The Brembo 09.A358.11 also features intelligent marking for part number and minimum thickness identification.

Key Features

• Premium UV Coated OE equivalent disc brake rotor
• UV coating protects braking plate surfaces and helps resist corrosion
• High carbon cast iron construction where applicable for quieter operation
• Vented rotor design for rear brake applications
• Fixing screw kit included with necessary hardware
• Intelligent marking shows part number and minimum thickness
• Outside diameter: 300 mm; nominal thickness: 22 mm; minimum thickness: 19.4 mm
• 5-lug rotor with 67 mm centering diameter and 68 mm height

Product Details

Brembo’s UV Coated rotor line is made for OE-style replacement on vehicles that need dependable rear braking performance and corrosion protection. This rotor is a strong match for Mercedes-Benz E350 rear brake rotor replacement, Mercedes-Benz E320 rear disc brake service, and Mercedes-Benz CLS550 rear rotor applications. The 09.A358.11 part number is also useful when cross-shopping OE-style replacements for Mercedes-Benz E400, GLK350, and E550 rear brake jobs. This part cross-references Centric Parts 121.35063 and Raybestos Brakes 980270 for the same application.

Common Issues This Rotor Helps Address

• Brake pulsation from worn or below-spec rear rotors
• Noise and vibration during braking
• Corrosion on exposed rotor surfaces
• Reduced braking consistency from heat-worn discs
• Thickness wear that reaches service limits

Installation Notes

Replace rotors and pads together to restore braking performance. Pair this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations for balanced rear brake service. Verify rotor dimensions, minimum thickness, and torque specification during installation. The included fixing screw kit supports straightforward replacement, and the 130 Nm torque spec should be followed during assembly.

Compatible With rear brake applications on 2003-2017 Mercedes-Benz models including E320, E350, E400, E500, E550, E55 AMG, CLS500, CLS550, CLS400, E280, E300, and GLK250/GLK350, depending on year and trim.

Quality Assurance

Brembo develops this rotor as a direct replacement that meets or exceeds OEM specifications. The UV-coated surface, high carbon material where applicable, and clear service markings are intended to support accurate brake maintenance and consistent performance.
