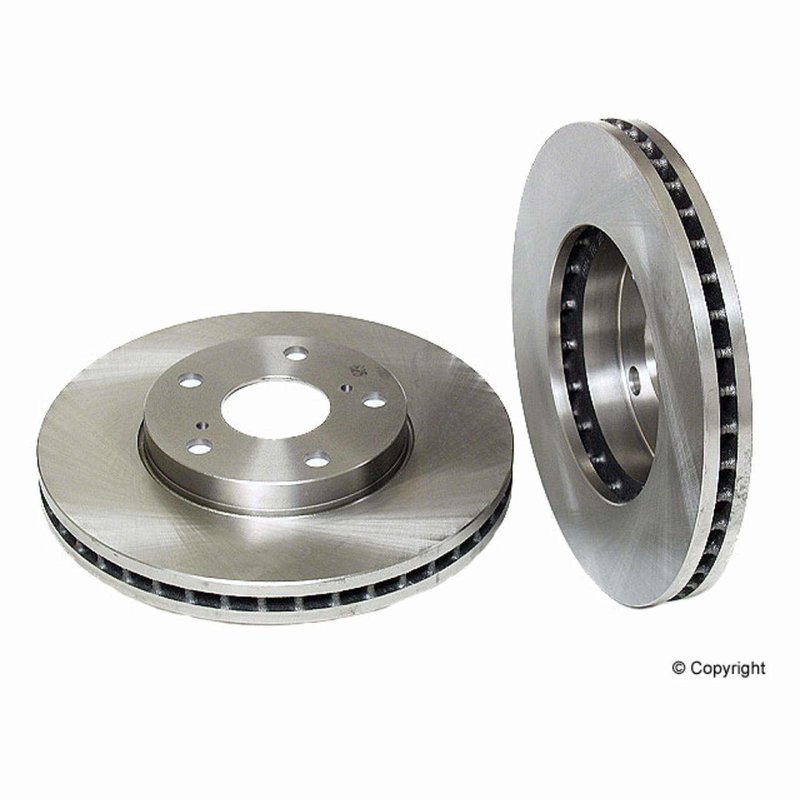

Brembo 09.A386.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

Brembo 09.A386.11 is a Premium UV Coated OE Equivalent Rotor built for front brake service on select Toyota and Lexus applications. It uses grey cast iron construction, a vented design, and a UV-coated surface to help protect the disc and braking plate surfaces from corrosion.

The Brembo Premium UV Coated Rotor line is made as a direct replacement for OE-style brake service, with attention to fit, finish, and braking consistency. For Toyota Camry front rotor replacement, Toyota Avalon front brake rotor service, or Lexus ES300 front disc brake maintenance, this part number is built to match the original application requirements.

• Grey cast iron construction for stable braking performance
• UV-coated rust-resistant surface for added protection
• Vented rotor design for front axle heat management
• Outside diameter: 275 mm
• Nominal thickness: 28 mm; minimum thickness: 26 mm
• 5-hole bolt pattern with 62 mm centering diameter
• Height: 49.2 mm
• Torque spec: 103 Nm

Detailed Product Overview

Part number 09.A386.11 is engineered as an OE-equivalent front disc brake rotor for 1992-2006 Toyota Camry, 1995-2004 Toyota Avalon, 1998-2003 Toyota Sienna, 1999-2003 Toyota Solara, and 1992-2001 Lexus ES300 applications. It also covers select 2004-2005 Toyota Camry configurations with 15-inch rotors, including USA-built and Japan-built notes where specified. The UV coating helps protect exposed surfaces, while the high-carbon cast iron design used where applicable is intended to reduce noise and vibration and support smoother braking feel.

This Brembo rotor cross-references Raybestos Brakes 96754 for the same application.

What This Rotor Helps Address

• Brake pulsation from worn or warped front rotors
• Corrosion on rotor surfaces and braking plate areas
• Noise and vibration during braking
• Reduced stopping consistency from rotor wear
• Front brake service needs on Toyota Camry, Avalon, Sienna, Solara, and Lexus ES300 models

Installation Notes

Verify rotor diameter, thickness, and vehicle notes before installation, especially on 2004-2005 Toyota Camry and 2005 Toyota Camry applications with 15-inch rotors. Clean the hub mounting surface, confirm torque to 103 Nm where specified, and replace pads at the same time to restore braking performance. Pairing the rotor with Brembo NAO/Ceramic or Low Met brake pads is recommended for a balanced brake service.

Quality Assurance

Brembo develops this UV Coated rotor as a direct replacement that meets or exceeds OEM specifications. The solvent-free coating process is designed for environmental responsibility while providing surface protection and consistent OE-style fitment.
