Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

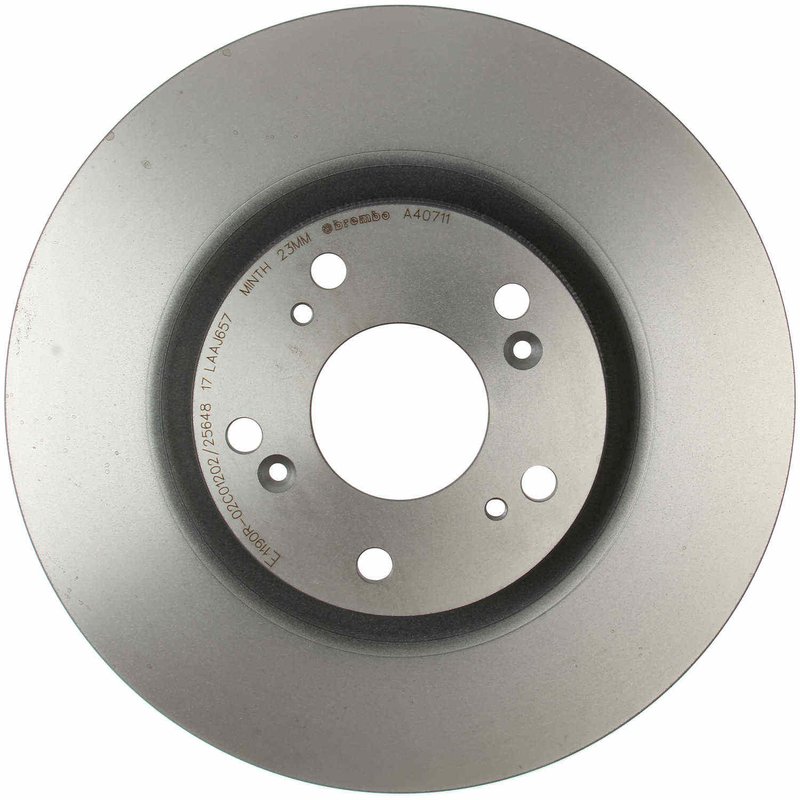

Brembo 09.A407.11 Disc Brake Rotor - Front
| Brand | Brembo 09.A407.11 |
|---|---|
| Position | Front |
| Centering Diameter (MM) | 64.2 |
| Fixing Screws | included |
| Height (MM) | 47.2 |
| Material | Grey Cast Iron |
| Minimum Thickness (MM) | 23 |
| Nominal Thickness (MM) | 25 |
| Number of Holes | 5 |
| Outside Diameter (MM) | 300 |
| Rust Resistant Coating | UV Coated |
| Solid Or Vented Type Rotor | vented |
| Torque Spec(NM) | 108 |
| Product line | Premium UV Coated OE Equivalent Rotor |
| Fits | Honda and Acura · 25 vehicles |
OE equivalent rotor. Direct replacement that meets or exceeds OEM specifications.
UV coated finish. Provides superior protection for the disc and braking surfaces.
Vented design. Helps reduce noise and vibration for smoother braking.
Cross-references Beck/Arnley 083-2912, Centric Parts 120.40057 and Centric Parts 121.40057 for the same application. See all 37.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Brembo UV Coated Front Rotor
The Brembo 09.A407.11 is a premium UV coated disc brake rotor built as a direct OE-style replacement for front brake service. It is engineered for select Acura ILX, Honda Civic, Acura RSX, and Honda CR-V applications, with a vented grey cast iron design that supports stable braking performance and everyday driving comfort.
- Premium UV coated OE equivalent rotor for front brake applications
- Grey cast iron construction with vented rotor design
- Outside diameter: 300 mm; nominal thickness: 25 mm; minimum thickness: 23 mm
- Centering diameter: 64.2 mm; height: 47.2 mm; 5-hole bolt pattern
- Rust-resistant UV coating protects the disc and braking plate surfaces
- High carbon cast iron is used where applicable to reduce noise and vibration
- Fixing screws included for straightforward rotor replacement
- Intelligent marking shows part number and minimum thickness
Product Details
Brembo’s Premium UV Coated OE Equivalent Rotor line is developed as a direct replacement for factory brake rotors and is built to meet or exceed OEM specifications. The solvent-free UV coating helps protect the rotor from corrosion while preserving the braking surfaces, and the vented design supports heat management during repeated stops. For restored braking performance, Brembo recommends replacing rotors and pads together. This Brembo 09.A407.11 rotor is a practical choice for drivers servicing front brakes on 2002-2006 Acura RSX, 2005-2006 Honda CR-V, 2006-2011 Honda Civic, and 2012-2015 Honda Civic, as well as 2013-2015 Acura ILX.
This part cross-references Raybestos Brakes 980317 and PowerStop JBR991 for the same application.
What This Rotor Helps Address
- Brake pulsation caused by worn or uneven front rotors
- Corrosion on exposed rotor surfaces
- Noise and vibration during braking
- Reduced braking consistency from rotor wear
- Service needs on front brake systems for Acura and Honda models
Installation Notes
Verify rotor dimensions, hub fitment, and minimum thickness before installation. Clean the hub mounting surface thoroughly to help prevent runout-related issues. Replace brake pads at the same time to restore braking performance, and follow the vehicle torque specification of 108 Nm during wheel installation. Confirm fitment for your exact vehicle configuration before ordering.
Quality Assurance
Brembo is a trusted braking brand with OE-equivalent replacement parts engineered for consistent fit and performance. The UV coated surface, grey cast iron construction, and minimum-thickness marking support accurate service and long-term maintenance planning.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Acura | ILX | — | — | — | Front | PRIME UV Coated |
| 2015 | Honda | Civic | Si | — | — | Front | PRIME UV Coated |
| 2014 | Acura | ILX | — | — | — | Front | PRIME UV Coated |
| 2014 | Honda | Civic | Si | — | — | Front | PRIME UV Coated |
| 2013 | Acura | ILX | — | — | — | Front | PRIME UV Coated |
| 2013 | Honda | Civic | Si | — | — | Front | PRIME UV Coated |
| 2012 | Honda | Civic | Si HFP | 2.4L | L4 | Front | PRIME UV Coated |
| 2011 | Honda | Civic | Si | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2010 | Honda | Civic | Si | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2009 | Honda | Civic | Si | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2008 | Honda | Civic | Si | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2008 | Honda | Civic | MUGEN Si | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2007 | Honda | Civic | Si | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2006 | Acura | RSX | Type-S | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2006 | Honda | Civic | Si | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2006 | Honda | CR-V | SE | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2006 | Honda | CR-V | LX | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2006 | Honda | CR-V | EX | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2005 | Acura | RSX | Type-S | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2005 | Honda | CR-V | SE | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2005 | Honda | CR-V | LX | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2005 | Honda | CR-V | EX | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2004 | Acura | RSX | Type-S | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2003 | Acura | RSX | Type-S | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| 2002 | Acura | RSX | Type-S | — | — | Front | Premium UV Coated OE Equivalent Rotor |
| No rows match your filter. | |||||||
