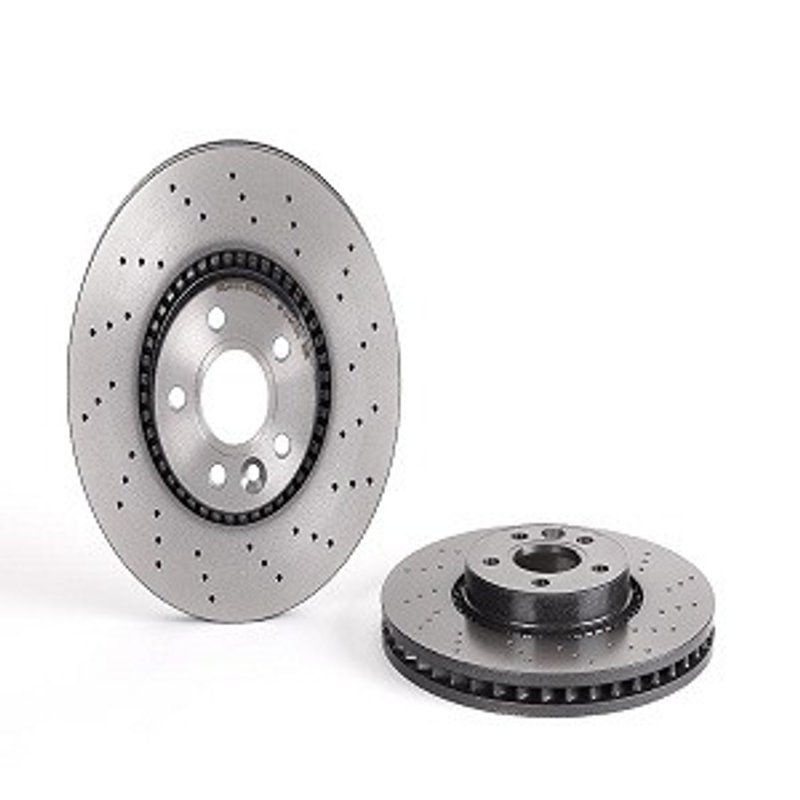

Brembo 09.A426.1X Disc Brake Rotor - Front

Brembo UV Coated Front Rotor for Volvo and Land Rover

The Brembo 09.A426.1X is a front disc brake rotor built as a direct replacement for select Volvo and Land Rover applications. It uses a drilled braking surface and UV-coated finish to help protect exposed surfaces while supporting consistent braking performance.

For drivers searching for a Brembo Premium Xtra Cross Drilled UV Coated Rotor for Volvo S60, Volvo V60, Volvo S80, Volvo XC70, Volvo V70, or Land Rover LR2 front brake service, this rotor is built around OE-style dimensions and fitment.

Key Features

• Part number: 09.A426.1X
• Premium Xtra Cross Drilled UV Coated Rotor design
• Grey cast iron construction
• Drilled braking surface for improved heat management
• UV-coated rust-resistant finish on the disc and braking plate surfaces
• Vented rotor design
• Outside diameter: 316 mm
• Nominal thickness: 28 mm; minimum thickness: 26.5 mm
• 5-lug rotor with 63.6 mm centering diameter
• Height: 52 mm
• Torque spec: 170 Nm

Product Details

Brembo developed this rotor as a direct replacement that meets or exceeds OEM specifications. The UV coating is solvent-free and helps protect the rotor from corrosion during service and storage. Where applicable, the high-carbon cast iron construction is used to reduce noise and vibration while supporting stable braking feel and driving comfort. Intelligent marking locations identify the part number and minimum thickness for easier inspection during brake service. The 09.A426.1X is a practical choice for front brake repair on Volvo S60, Volvo V60, Volvo S80, Volvo XC70, Volvo V70, and Land Rover LR2 models listed below.

This part cross-references Raybestos Brakes 980642 and PowerStop EBR1001EVC for the same application.

What It Helps Address

• Brake pulsation from worn or uneven front rotors
• Reduced braking consistency caused by rotor wear
• Surface corrosion on exposed brake rotor areas
• Noise and vibration during braking
• Front brake service needs on OE-size 316 mm rotor applications

Installation Notes and Fitment

Replace rotors and pads together to restore braking performance. Pair this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations for a matched brake service. Verify rotor dimensions, hub centering, and torque specification during installation.

• Fits 2011-2018 Volvo S60, front
• Fits 2016-2018 Volvo S60 Cross Country, front
• Fits 2015-2018 Volvo V60, front
• Fits 2015-2018 Volvo V60 Cross Country, front
• Fits 2007-2016 Volvo S80, front
• Fits 2008-2016 Volvo XC70, front
• Fits 2008-2015 Land Rover LR2, front
• Fits 2008-2010 Volvo V70, front

Quality Assurance

Brembo is a trusted braking brand known for OE-style replacement components and controlled manufacturing standards. The 09.A426.1X is engineered to meet the dimensional and performance requirements listed for the confirmed applications above.
