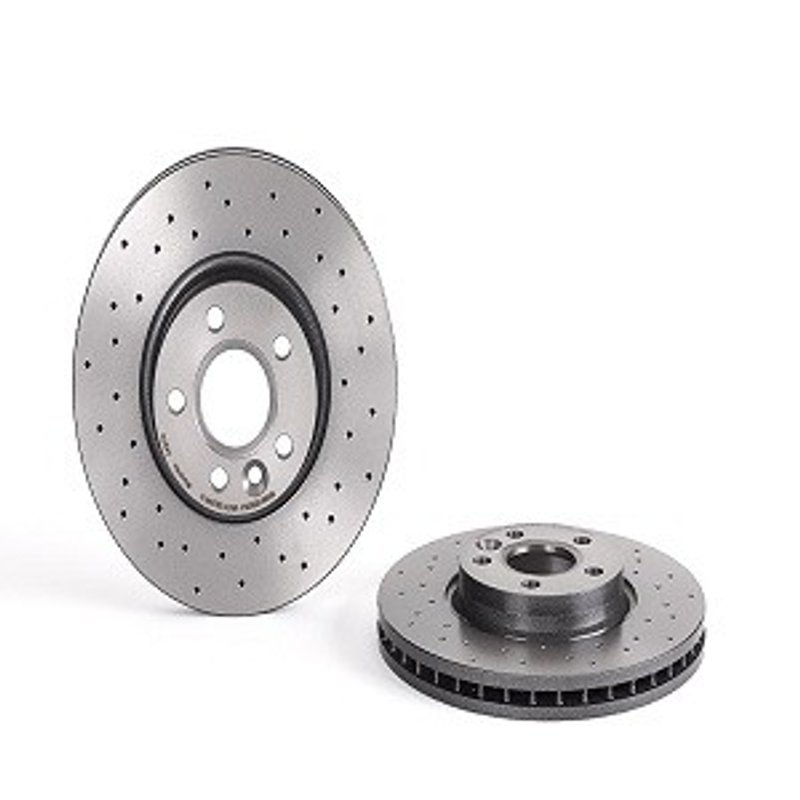

Brembo 09.A427.1X Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

The Brembo 09.A427.1X is a front disc brake rotor built as a direct replacement for select Volvo and Land Rover applications. It combines a drilled braking surface with a UV-coated finish to help protect exposed surfaces while supporting consistent braking performance.

Compatible With 2007-2016 Volvo S80 front, 2008-2016 Volvo XC70 front, 2011-2018 Volvo S60 front, 2015-2018 Volvo V60 front, and select Land Rover Range Rover Evoque front applications, this rotor is sized for 300 mm diameter fitments.

Premium Xtra Cross Drilled UV Coated Rotor

Brembo’s Premium Xtra Cross Drilled UV Coated Rotor line focuses on OE-style replacement fitment with added surface protection and a drilled braking face. The UV coating is solvent-free and applied to protect the disc, including the braking plate surfaces. Where applicable, high carbon cast iron helps reduce noise and vibration while improving driving comfort.

• Grey cast iron construction
• Drilled braking surface
• UV-coated rust-resistant finish
• Vented rotor design
• 300 mm outside diameter
• 5-hole bolt pattern
• Minimum thickness: 26.5 mm
• Nominal thickness: 28 mm
• Centering diameter: 63.6 mm
• Height: 52 mm
• Torque spec: 170 Nm

Detailed Description

The Brembo 09.A427.1X rotor is engineered for drivers replacing worn front brake rotors on Volvo S60, Volvo V60, Volvo S80, Volvo XC70, and Range Rover Evoque models. Its drilled surface supports heat management and braking consistency, while the UV-coated finish helps resist corrosion on exposed areas. The rotor is marked with the part number and minimum thickness for easier service checks.

This part cross-references Raybestos Brakes 980725 and PowerStop EBR1000EVC for the same application.

What This Rotor Helps Address

• Brake pulsation from rotor wear or thickness variation
• Surface rust on exposed rotor areas
• Noise and vibration during braking
• Reduced braking performance from worn front rotors
• Service replacement needs on drilled front rotor applications

Installation Notes and Tips

Replace rotors and pads together to restore braking performance. Brembo recommends pairing this rotor with NAO/Ceramic or Low Met brake pad formulations. Verify rotor dimensions, bolt pattern, and minimum thickness before installation, and follow the vehicle’s service procedure for front brake service.

Quality Assurance

Brembo develops this rotor as a direct replacement that meets or exceeds OEM specifications. The UV-coated finish is environmentally friendly and designed to protect the disc surface during service life.
