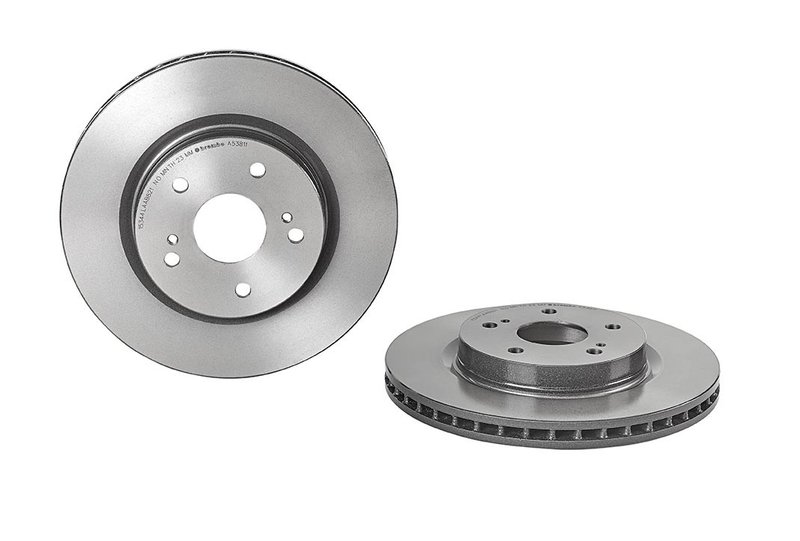

Brembo 09.A538.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor for Grand Vitara

The Brembo 09.A538.11 is a front disc brake rotor built as an OE-equivalent replacement for the 2006-2013 Suzuki Grand Vitara. It uses a UV-coated surface for corrosion protection and a vented grey cast iron design to support stable braking performance and everyday driving comfort.

Key Features

• Direct replacement rotor for front brake service
• UV coated surface helps protect braking plate surfaces from rust
• Grey cast iron construction for consistent braking performance
• Vented rotor design helps manage heat during repeated stops
• Nominal thickness: 25 mm; minimum thickness: 23 mm
• Outside diameter: 294 mm with 5-hole mounting pattern
• Centering diameter: 62 mm and height: 49 mm
• Torque specification: 95 Nm

Product Line Details

Brembo’s Premium UV Coated OE Equivalent Rotor line is developed as a direct replacement for vehicles that need factory-style fit and braking characteristics. The UV coating is solvent-free and applied to help protect the rotor surface, while the vented grey cast iron construction supports noise and vibration control where applicable. Part number 09.A538.11 is also identified by cross-reference applications such as Beck/Arnley 083-3269 and DuraGo BR900638.

Vehicle Fitment

• Fits 2006-2013 Suzuki Grand Vitara, front

Common Issues This Rotor Can Address

• Brake pulsation from worn or uneven rotor surfaces
• Rust buildup on exposed rotor faces
• Reduced braking smoothness during daily driving
• Noise and vibration associated with aged front rotors
• Loss of braking consistency from rotor wear near minimum thickness

Installation Notes and Tips

Replace rotors and pads together to restore braking performance and maintain even wear. Confirm rotor thickness before installation and verify the 5-hole, 62 mm centering dimensions match the vehicle hub. For best results on the Suzuki Grand Vitara, pair Brembo 09.A538.11 with Brembo NAO/Ceramic or Low Met brake pad formulations.

Quality Assurance

Brembo manufactures this rotor as an OE-equivalent replacement that meets or exceeds OEM specifications for the listed application. The intelligent marking location shows the part number and minimum thickness for easier service checks.
