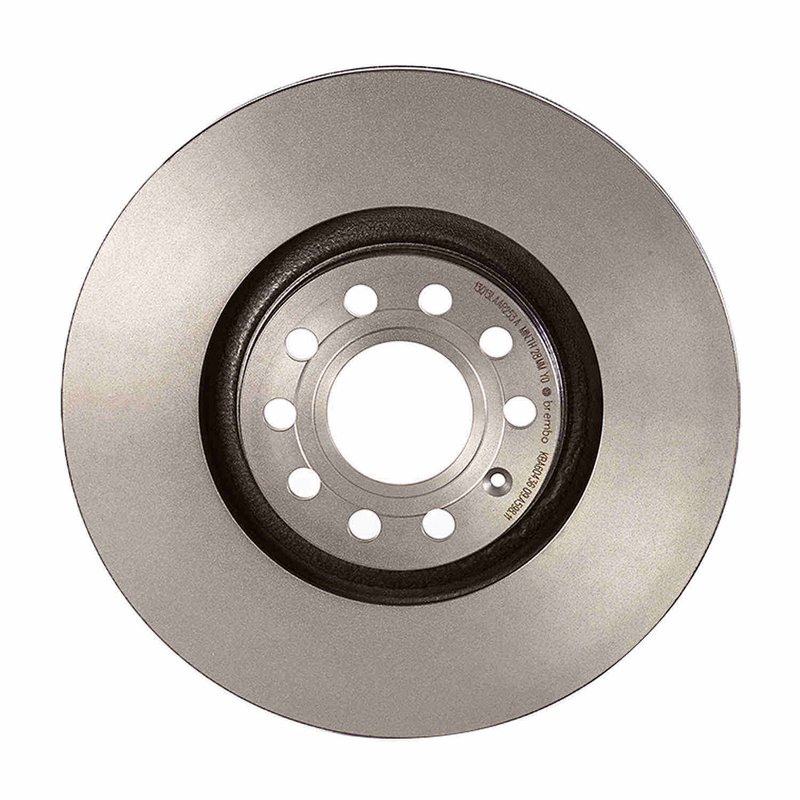

Brembo 09.A598.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

The Brembo 09.A598.11 is a premium UV coated disc brake rotor built as a direct OE-style replacement for select Audi front brake applications. It combines a high carbon cast iron design, vented construction, and corrosion-resistant coating to support consistent braking feel, reduced noise, and cleaner long-term appearance.

For Audi A4, A4 Quattro, A6, A6 Quattro, Allroad Quattro, S4, and S6 front brake service, this rotor is engineered to meet or exceed OEM specifications while restoring braking performance with the correct pad pairing.

Key Features

• Part number 09.A598.11 Brembo front disc brake rotor
• Premium UV coated surface for rust resistance and protection on braking plate surfaces
• High carbon cast iron construction where applicable for reduced noise and vibration
• Vented rotor design for front axle braking applications
• Outside diameter: 320 mm; nominal thickness: 29.9 mm; minimum thickness: 28 mm
• 5-lug design with 68 mm centering diameter and 46.2 mm height
• Fixing screws included for installation
• Intelligent marking location shows part number and minimum thickness

Product Details

Brembo’s Premium UV Coated OE Equivalent Rotor line is focused on direct replacement fitment and stable braking performance. The UV coating is solvent free and helps protect the rotor from corrosion, including exposed surfaces that are often vulnerable during daily driving. Where specified, the high carbon material helps control vibration and noise for a smoother pedal response. Pairing the rotor with Brembo NAO/Ceramic or Low Met brake pads is recommended when restoring the braking system on Audi A4 and Audi A6 front brake setups.

This part cross-references Centric Parts 121.33096 and Raybestos Brakes 980028 for the same application.

Fitment and Application

• Fits 2005-2009 Audi A4, front, 320mm diameter; Premium UV Coated OE Equivalent Rotor
• Fits 2005-2009 Audi A4 Quattro, front, 320mm diameter; Premium UV Coated OE Equivalent Rotor
• Fits 2001-2005 Audi Allroad Quattro, front, 321mm diameter; Premium UV Coated OE Equivalent Rotor
• Fits 2002-2004 Audi A6, front, 320mm diameter; Premium UV Coated OE Equivalent Rotor
• Fits 2002-2004 Audi A6 Quattro, front, 320mm diameter; Premium UV Coated OE Equivalent Rotor
• Fits 2002-2003 Audi S6, front, PRIME
• Fits 1999-2002 Audi A4 Quattro, front, PRIME
• Fits 2002 Audi S4, front, 320mm diameter; Premium UV Coated OE Equivalent Rotor
• Fits 1998-2001 Audi A6 Quattro, front, PRIME
• Fits 2000-2001 Audi S4, front, 321mm diameter; Premium UV Coated OE Equivalent Rotor

Installation Notes

Confirm rotor diameter, thickness, and hub centering before installation on Audi A4, A4 Quattro, A6, A6 Quattro, Allroad Quattro, S4, or S6 front brake systems. Replace rotors and pads together to restore braking performance, and verify the rotor is within the 28 mm minimum thickness specification before service. Use the included fixing screw kit and torque fasteners to the specified 120 Nm where applicable.

Quality Assurance

Brembo manufactures this rotor as an OE-equivalent replacement with materials and coating technology selected for durability and braking consistency. The part includes intelligent wear marking for service reference and is built to support reliable front brake maintenance on the listed Audi applications.
