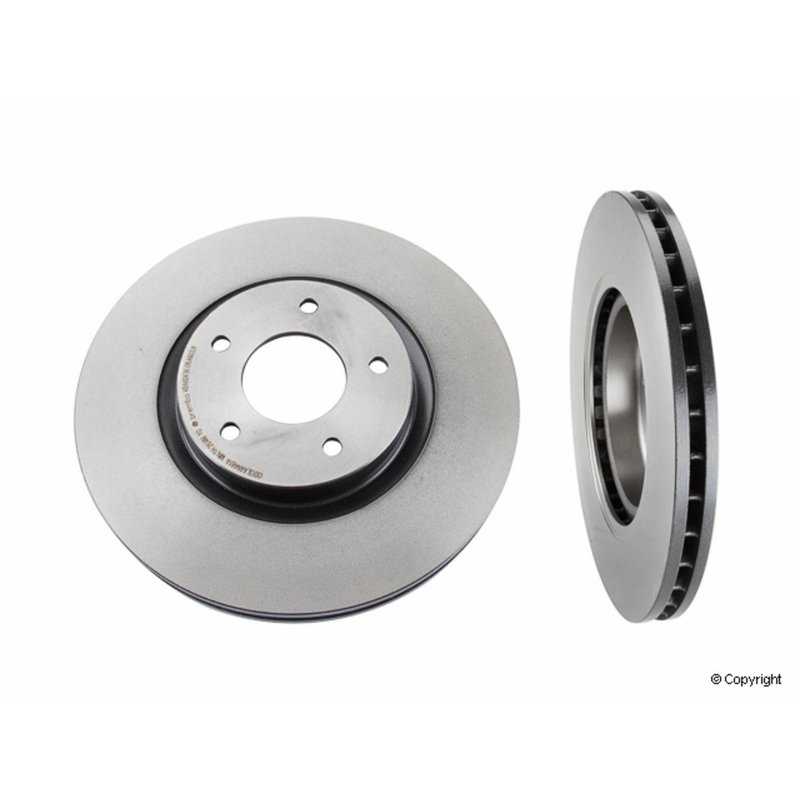

Brembo 09.A603.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

Brembo 09.A603.11 is a premium UV coated OE equivalent disc brake rotor for front brake service on select Jaguar applications. It is built from grey cast iron with a vented design, 325 mm outside diameter, and a 5-hole pattern to match the original braking setup.

The Brembo Premium UV Coated Rotor line focuses on direct replacement fitment with corrosion protection on the braking surfaces and hat area. For vehicles such as the Jaguar XK8, XKR, XJ8, XJR, and Vanden Plas, this rotor supports a clean OE-style repair when restoring front brake performance.

• Grey cast iron construction for stable braking performance
• UV coated surface for rust resistance and protection of exposed areas
• Vented rotor design for front brake heat management
• 325 mm outside diameter, 28 mm nominal thickness, 26 mm minimum thickness
• 73.8 mm centering diameter and 103 Nm torque spec
• Intelligent marking location shows part number and minimum thickness
• OE equivalent replacement for select Jaguar front brake applications

Detailed Product Overview

Brembo 09.A603.11 is engineered as a direct replacement rotor that meets or exceeds OEM specifications for the listed Jaguar front axle applications. The UV coating is solvent free and helps protect the disc, including the braking plate surfaces, while the high carbon cast iron design used where applicable helps reduce noise and vibration for smoother operation. This rotor is a practical choice for drivers servicing a Jaguar XK8 front brake rotor, Jaguar XKR front rotor, or Jaguar XJ8 front brake replacement where OE-style dimensions and finish matter.

This part cross-references Beck/Arnley 083-3402 and Raybestos Brakes 980505 for the same application. Part number 09.A603.11 is also referenced in aftermarket catalogs under related interchange numbers for the same front rotor fitment.

Common Brake Issues It Can Address

• Brake pulsation from worn or uneven front rotors
• Noise and vibration during braking
• Corrosion on exposed rotor surfaces
• Reduced braking consistency from rotor wear below minimum thickness
• Loss of OE-style braking feel on select Jaguar front applications

Installation Notes

Replace rotors and pads together to restore braking performance. Pair Brembo 09.A603.11 with Brembo NAO/Ceramic or Low Met brake pad formulations for a matched brake service. Verify rotor dimensions, hub fitment, and minimum thickness before installation, and follow the vehicle service manual for torque and bedding procedures.

Fits 2000-2006 Jaguar XK8, front; 2003-2006 Jaguar XKR, front; 2000-2001 Jaguar XKR, front; 2002-2003 Jaguar Vanden Plas, front; 2002-2003 Jaguar XJR, front; 1999-2002 Jaguar XJ8, front; 2002 Jaguar XKR, front; 2000-2001 Jaguar Vanden Plas, front; 1998-2001 Jaguar XJR, front; 1998-1999 Jaguar Vanden Plas, front; 1999 Jaguar XK8, front.

Quality Assurance

Brembo is a trusted braking brand with OE-equivalent replacement parts developed for accurate fit and consistent performance. The rotor includes clear part-number and minimum-thickness marking for service reference during inspection and replacement.
