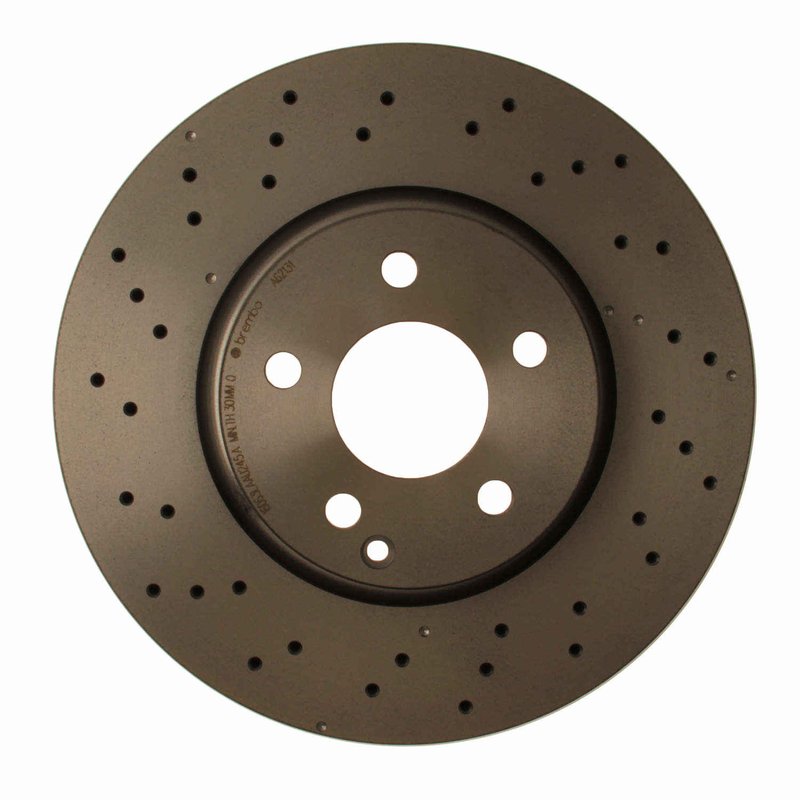

Brembo 09.A621.31 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor for Mercedes-Benz

The Brembo 09.A621.31 is a premium OE-equivalent front disc brake rotor built for select Mercedes-Benz applications, including E-Class and C-Class models with front axle fitment. Its UV-coated finish helps protect exposed surfaces from corrosion, while the high-carbon cast iron construction, where applicable, is used to reduce noise and vibration for smoother braking.

Key Features

• Premium UV coated OE equivalent rotor from Brembo
• High carbon construction for improved braking comfort and reduced vibration
• Drilled braking surface
• Vented rotor design
• Outside diameter: 322 mm
• Nominal thickness: 32 mm; minimum thickness: 30 mm
• Centering diameter: 67 mm
• Five-hole bolt pattern
• Fixing screws included
• Intelligent marking shows part number and minimum thickness

Product Details

Brembo 09.A621.31 is engineered as a direct replacement rotor that meets or exceeds OEM specifications for front brake service. The UV-coated surface is solvent-free and protects the disc, including the braking plate surfaces, which helps maintain appearance and resist rust. For Mercedes-Benz E350 front brake rotor replacement, Mercedes-Benz C350 front brake rotor replacement, and Mercedes-Benz E400 front brake rotor replacement, this rotor provides the dimensions and construction needed for proper OE-style service. This part cross-references Zimmermann 400.3654.20 and Raybestos Brakes 980793FZN for the same application.

What It Helps Address

• Brake pulsation from worn or uneven front rotors
• Noise and vibration during braking
• Surface corrosion on exposed rotor areas
• Reduced braking consistency from rotor wear
• Front brake service needs on select Mercedes-Benz E-Class and C-Class models

Installation Notes

Fits 2015-2017 Mercedes-Benz E400, front; 2014-2016 Mercedes-Benz E250, front; 2012-2016 Mercedes-Benz E300, front; 2012-2016 Mercedes-Benz E350, front; 2013-2015 Mercedes-Benz C350, front; 2013-2015 Mercedes-Benz E400, front; 2014 Mercedes-Benz C300, front; 2013 Mercedes-Benz C300, front; 2008-2012 Mercedes-Benz C350, front; 2010-2012 Mercedes-Benz E350, front; 2010-2011 Mercedes-Benz E350, front; and 2010-2011 Mercedes-Benz E550, front. Replace rotors and pads together to restore braking performance, and verify rotor thickness, torque specification, and wheel clearance before final assembly. Use with Brembo NAO/Ceramic or Low Met brake pad formulations for a matched brake service.

Quality Assurance

Brembo develops this rotor as an OE-equivalent replacement with application-specific dimensions and wear markings for service accuracy. The UV-coated finish, high-carbon material, and included hardware support consistent brake maintenance on select Mercedes-Benz front brake applications.
