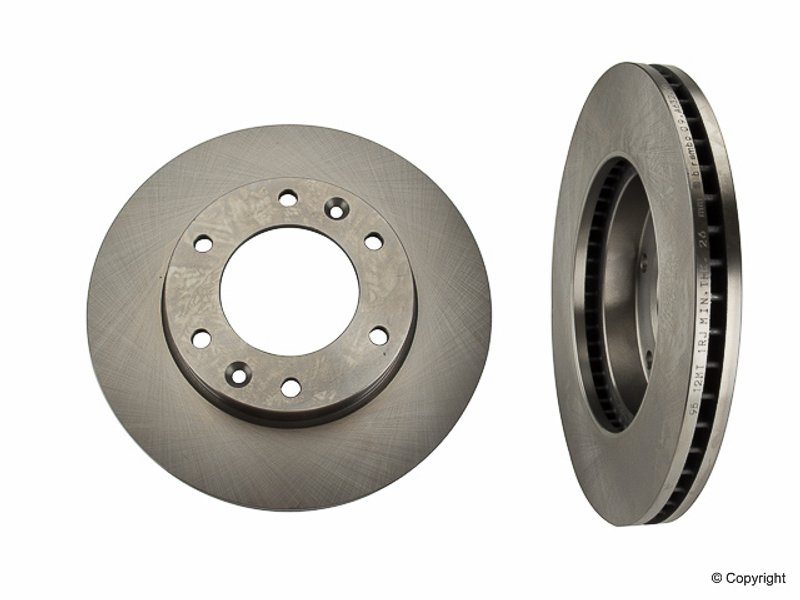

Brembo 09.A632.21 Disc Brake Rotor - Front

Brembo UV Coated Front Brake Rotor

The Brembo 09.A632.21 is a premium UV coated OE equivalent disc brake rotor built for front axle applications on select Kia Sedona and Hyundai Entourage models. It is engineered as a direct replacement rotor with a vented design, grey cast iron construction, and corrosion-resistant surface protection for dependable braking performance.

Key Features

• OE equivalent replacement rotor for front brake service
• UV coated surface helps protect the disc and braking plate surfaces from corrosion
• Grey cast iron construction for stable braking characteristics
• Vented rotor design for improved heat management
• 298 mm outside diameter, 54 mm height, 28 mm nominal thickness
• 26 mm minimum thickness with intelligent marking location for service reference
• 6-hole bolt pattern for confirmed vehicle applications

Product Details

Brembo Premium UV Coated OE Equivalent Rotor part number 09.A632.21 is designed to restore braking performance with dimensions and construction that align with OEM specifications. The UV coated finish uses a solvent-free process to help protect exposed surfaces, while the vented grey cast iron rotor supports consistent braking feel and reduced noise and vibration where applicable. This rotor is a direct fit for 2006-2012 Kia Sedona front brake applications, 2014 Kia Sedona front brake applications, 2007-2008 Hyundai Entourage front brake applications, and 2009-2010 Hyundai Entourage front brake applications. For service planning, Brembo recommends replacing rotors and pads together to restore braking performance. This part cross-references Beck/Arnley 083-3291 and Raybestos Brakes 980464 for the same application.

Common Brake Issues This Rotor Can Address

• Brake pulsation caused by worn or uneven rotor surfaces
• Noise and vibration during front brake operation
• Corrosion on exposed rotor surfaces
• Reduced braking consistency from rotor wear near minimum thickness
• Heat-related brake fade from an aging vented rotor

Installation Notes and Tips

Verify rotor diameter, bolt pattern, and minimum thickness before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Replace pads at the same time as the rotor when the friction material is worn or contaminated. Confirm fitment for 2014 Kia Sedona front, 2006-2012 Kia Sedona front, 2007-2008 Hyundai Entourage front, and 2009-2010 Hyundai Entourage front before ordering. The Brembo 09.A632.21 is a front rotor only and should be matched to the correct axle position.

Quality Assurance

Brembo develops this UV coated rotor as an OE equivalent replacement that meets or exceeds OEM specifications. The brand’s braking-focused engineering, corrosion-resistant coating process, and service markings support accurate installation and long-term maintenance.
