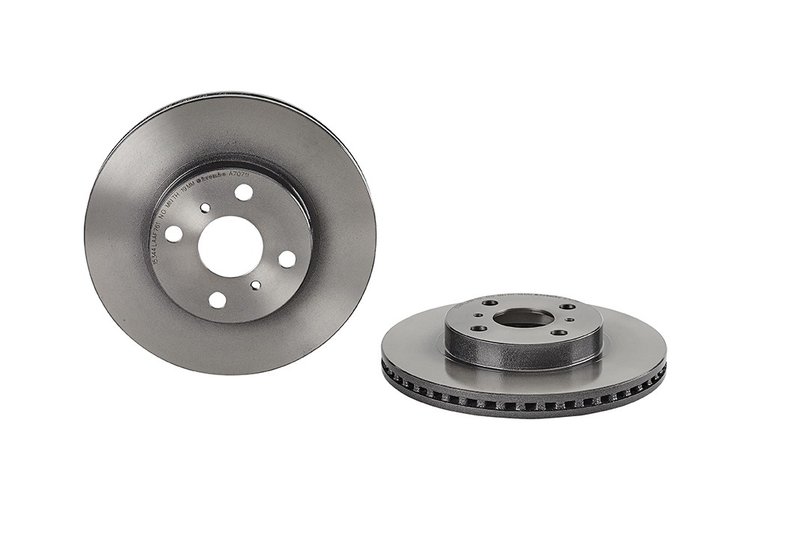

Brembo 09.A707.11 Disc Brake Rotor - Front

Brembo UV Coated Front Brake Rotor

The Brembo 09.A707.11 is a premium UV coated OE equivalent disc brake rotor built for front axle applications on select Toyota and Scion models. It combines a grey cast iron construction with a vented design to support stable braking performance, reduced noise, and consistent pedal feel.

For drivers searching for a front brake rotor for a Toyota Prius C, Toyota Yaris, or Scion iQ, this rotor is engineered as a direct replacement that follows OEM specifications and dimensions.

Key Features

• Grey cast iron construction for dependable braking performance
• UV coated surface for rust resistance and added disc protection
• Vented rotor design for improved heat management
• 55 mm centering diameter and 255 mm outside diameter
• 46.2 mm height, 22 mm nominal thickness, and 19 mm minimum thickness
• 4-hole bolt pattern with 103 Nm torque specification
• Intelligent marking location shows part number and minimum thickness
• OE equivalent replacement for front brake service

Product Details

Brembo’s Premium UV Coated OE Equivalent Rotor line is built for direct-fit replacement service where factory-style dimensions and braking characteristics matter. The solvent-free UV coating helps protect the braking plate surfaces from corrosion, while the vented rotor layout and high carbon cast iron design, where applicable, are used to reduce vibration and noise. The Brembo 09.A707.11 is a practical choice for restoring braking performance on front brake systems for 2006-2019 Toyota Yaris, 2012-2019 Toyota Prius C, and 2013 Scion iQ applications.

This part cross-references Centric Parts 120.44143 for the same application.

Common Brake Issues This Rotor Can Address

• Brake pulsation caused by rotor wear or thickness variation
• Noise and vibration from worn front brake components
• Surface corrosion on exposed rotor faces
• Reduced braking consistency from an aging rotor
• Uneven stopping feel during everyday driving

Installation Notes and Tips

Replace rotors and pads together to help restore braking performance. Before installation, confirm rotor dimensions, bolt pattern, and minimum thickness against the vehicle’s service requirements. This rotor is listed for front position use on 2006-2019 Toyota Yaris, front; 2012-2019 Toyota Prius C, front; and 2013 Scion iQ, front.

For best results, pair the rotor with Brembo NAO/Ceramic or Low Met brake pad formulations. The 09.A707.11 also includes a marking location for part identification and minimum thickness reference during service.

Quality Assurance

Brembo develops this rotor as an OE equivalent replacement that meets or exceeds OEM specifications. The UV coated finish, cast iron construction, and dimensional accuracy are intended to support reliable brake service and consistent fitment across the listed applications.
