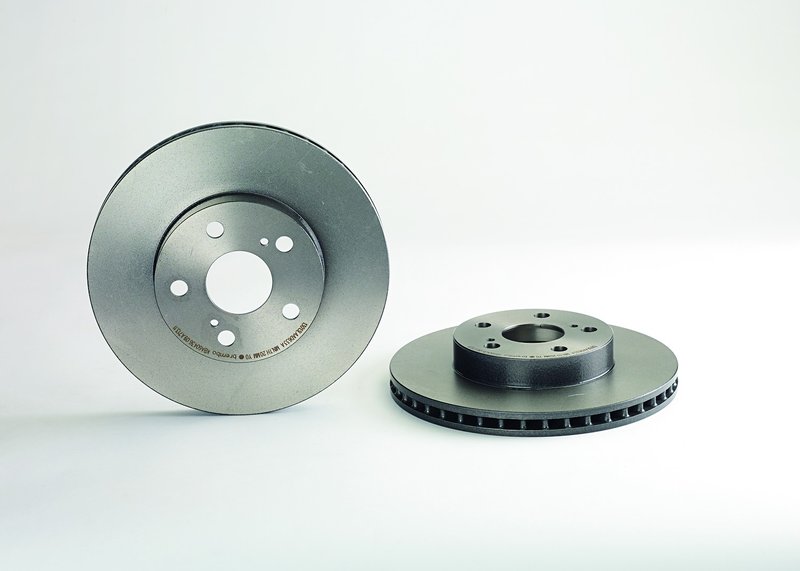

Brembo 09.A713.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor for Prius

The Brembo 09.A713.11 is a front disc brake rotor built as a direct OE-style replacement for select 2004-2009 Toyota Prius models. It uses a UV-coated surface for corrosion protection and a vented design to support consistent braking performance on daily-driven vehicles.

Key Features

• Premium UV coated OE equivalent rotor from Brembo
• Fits 2004-2009 Toyota Prius, front
• Grey cast iron construction with high carbon content where applicable for reduced noise and vibration
• 255 mm outside diameter, 22 mm nominal thickness, 20 mm minimum thickness
• 5-lug rotor with 55 mm centering diameter and 49.2 mm height
• Vented rotor design for front brake applications
• UV-coated braking surfaces help resist rust on exposed areas
• Intelligent marking location shows part number and minimum thickness

Detailed Description

Brembo’s Premium UV Coated OE Equivalent Rotor line is engineered for drivers who want a replacement rotor that follows original equipment specifications while adding corrosion protection. The UV-coated finish helps protect the disc, including the braking plate surfaces, and the grey cast iron construction supports stable braking feel. For applications where high carbon cast iron is used, Brembo notes improved noise and vibration control along with better driving comfort. This Brembo 09.A713.11 rotor is a direct replacement for the front brake position on the Toyota Prius, making it a practical choice for restoring braking consistency on 2004-2009 Prius models.

This part cross-references Centric Parts (e.g., 120.44135, 121.44135) for the same application.

What It Helps Address

• Brake pulsation from worn or uneven rotor surfaces
• Rust buildup on exposed rotor areas
• Noise and vibration during braking
• Reduced braking consistency from rotor wear
• Front brake service needs on a Toyota Prius

Installation Notes and Tips

Fits 2004-2009 Toyota Prius, front. Verify rotor thickness before installation and replace rotors and pads together to restore braking performance. Brembo recommends pairing this rotor with NAO/Ceramic or Low Met brake pad formulations for balanced braking results. The rotor uses a 103 Nm torque specification and includes an intelligent marking location for part identification and minimum thickness reference.

Quality Assurance

Brembo develops this rotor as an OE-equivalent replacement built to meet or exceed OEM specifications. The UV coating is solvent-free and designed for environmental protection as well as surface durability. Brembo is a long-established braking brand with a focus on replacement parts that match original fit and function.
