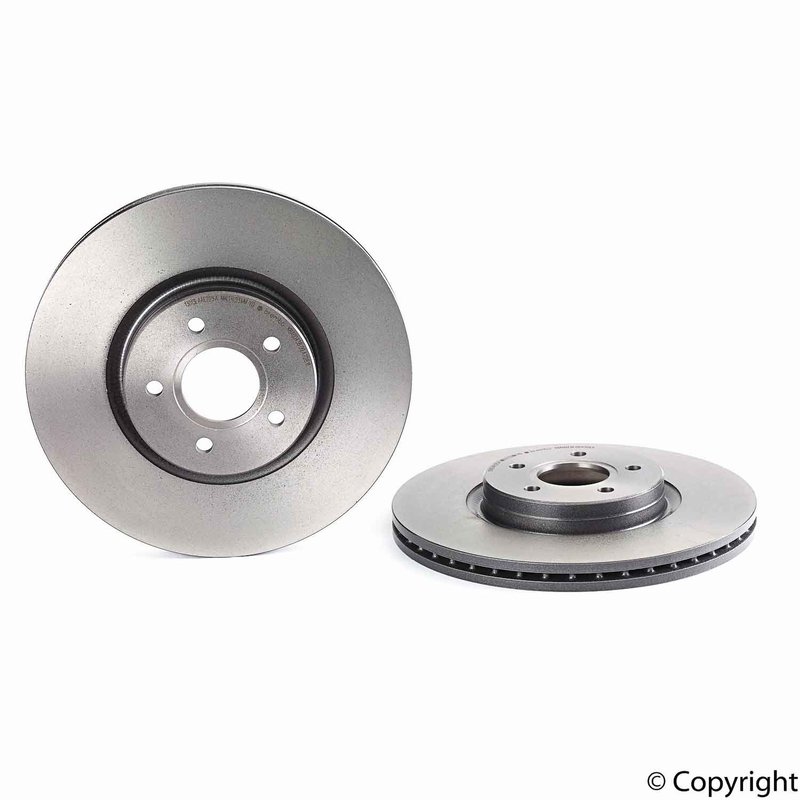

Brembo 09.A728.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

Brembo 09.A728.11 is a premium UV coated OE equivalent disc brake rotor built for direct replacement service. It is engineered for front brake applications on select Volvo C70, S40, and V50 models, with a vented design and high carbon cast iron construction where applicable for stable braking feel.

The UV coated surface helps protect the disc and braking plate surfaces from corrosion, while the rotor’s intelligent marking location identifies the part number and minimum thickness for service checks. For restored braking performance, Brembo recommends replacing rotors and pads together.

Key Features

• Part number: 09.A728.11
• Premium UV coated OE equivalent rotor
• Front position disc brake rotor
• Vented rotor design
• High carbon material for reduced noise and vibration where applicable
• Outside diameter: 320 mm
• Nominal thickness: 25 mm
• Minimum thickness: 23 mm
• Centering diameter: 63.6 mm
• 5-lug bolt pattern
• Torque spec: 130 Nm

Product Details

Brembo’s Premium UV Coated OE Equivalent Rotor line focuses on direct-fit replacement rotors that meet or exceed OEM specifications. This rotor is built for front brake service on Volvo C70, Volvo S40, and Volvo V50 applications, including 2004-2010 Volvo S40 front, 2005-2010 Volvo V50 front, and 2006-2009 Volvo C70 front. The UV coating provides added surface protection, and the high carbon cast iron construction supports consistent braking performance and driving comfort. Brembo 09.A728.11 is also referenced by 09A72811 for catalog and interchange use.

This part cross-references Centric Parts (e.g., 121.39038, 125.39038) for the same application.

What This Rotor Helps Address

• Brake pulsation from rotor wear or thickness variation
• Noise and vibration during braking
• Surface corrosion on exposed rotor areas
• Reduced braking consistency from worn front rotors
• Service issues when replacing worn Volvo front brake components

Installation Notes and Tips

Verify rotor diameter, thickness, centering diameter, and bolt pattern before installation. This rotor is listed for front use on compatible Volvo applications, including 2010-2013 Volvo C70 front, 2011 Volvo S40 front, and 2011 Volvo V50 front PRIME listings. For best results, inspect pads, caliper hardware, and hub condition during service, and replace pads at the same time when wear or contamination is present.

Quality Assurance

Brembo develops this UV coated rotor as an OE equivalent replacement built to meet or exceed OEM specifications. The coating is solvent free, and the rotor includes intelligent wear marking information for service reference. Brembo is a recognized braking brand with a long OE and aftermarket presence.
