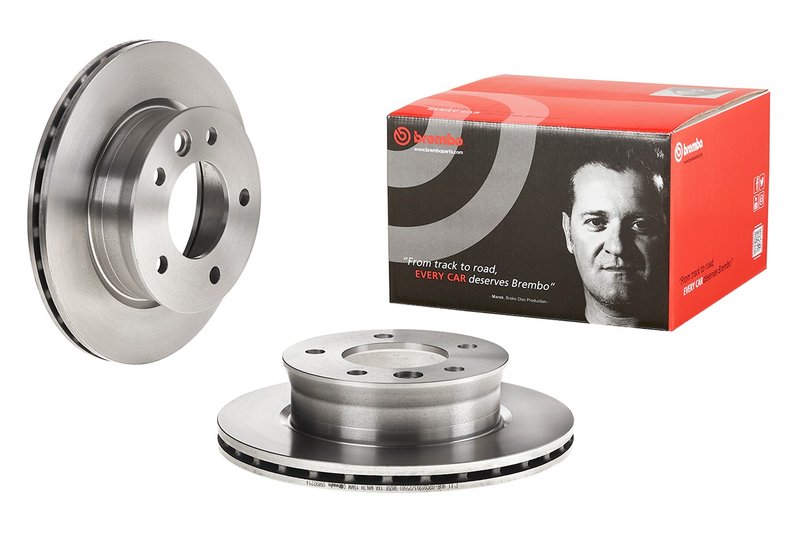

Brembo 09.A922.14 Disc Brake Rotor - Front

OE Equivalent Front Brake Rotor

This Brembo disc brake rotor is a direct replacement for select Dodge Sprinter front brake applications. It is built to meet or exceed OEM specifications and uses a UV-coated surface for added protection on the braking plate surfaces.

Fits 2003-2006 Dodge Sprinter 2500, front. Fits 2003-2006 Dodge Sprinter 3500, front. Part number 09.A922.14 appears on the rotor for identification and service reference.

Key Features

• Premium OE equivalent rotor from Brembo
• UV-coated finish helps protect exposed surfaces
• High carbon cast iron construction for reduced noise and vibration
• Solid or vented type rotor design: PVT
• Minimum thickness marking and part number identification on the rotor
• Centering diameter: 85 mm; outside diameter: 285 mm

Detailed Description

Brembo 09.A922.14 is a UV coated disc brake rotor engineered as a direct replacement for the front axle on select Dodge Sprinter 2500 and Dodge Sprinter 3500 models. The high carbon material helps control brake noise and vibration, while the coated surface adds corrosion resistance to the disc and braking plate surfaces. The rotor is marked with the part number and minimum thickness for easier inspection during brake service. For restoring braking performance, Brembo recommends replacing rotors and pads together, and pairing this rotor with NAO/Ceramic or Low Met pad formulations.

This rotor is part of Brembo’s Premium OE Equivalent Rotor line, which focuses on replacement parts built to OEM-level specifications for service work that calls for accurate fit and consistent braking feel. The 09.A922.14 rotor is a practical choice for Sprinter brake service when the original rotor has worn below specification or shows surface damage.

What It Is Used For

• Brake pulsation caused by rotor wear or thickness variation
• Noise and vibration from worn or heat-affected rotors
• Corrosion on the braking surface
• Reduced braking performance from rotors below minimum thickness
• Service replacement during front brake maintenance

Installation Notes and Tips

Verify rotor diameter, centering diameter, hole count, and thickness before installation. This rotor uses a 5-hole pattern and a 175 Nm torque specification. Brembo includes a fixing screw kit with the rotor for installation convenience. For best results, inspect pads and replace them with the rotor when wear or uneven transfer is present.

Quality Assurance

Brembo develops this rotor as an OE-equivalent replacement that meets or exceeds OEM specifications. The UV coating is solvent free, and the high carbon construction is used where applicable to improve braking comfort and reduce noise.
