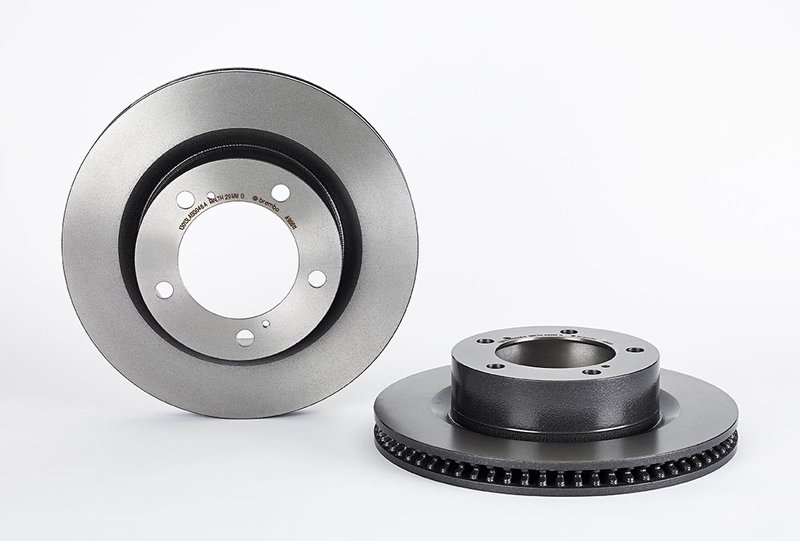

Brembo 09.A966.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

The Brembo 09.A966.11 is a premium UV coated disc brake rotor built as a direct OE-equivalent replacement for front brake service. It is engineered for Lexus LX570 and Toyota Land Cruiser applications, with a vented grey cast iron design that supports stable braking performance and consistent pedal feel.

The UV coated surface helps protect exposed rotor areas from corrosion, while the high carbon cast iron construction, where applicable, is used to reduce noise and vibration. Brembo 09.A966.11 is a practical choice for drivers looking to restore braking performance on a Lexus LX570 front rotor or Toyota Land Cruiser front rotor application.

Key Features

• OE-equivalent replacement rotor for front brake service
• UV coated finish for corrosion resistance on disc and braking plate surfaces
• Grey cast iron construction
• Vented rotor design for heat management
• Outside diameter: 340 mm
• Nominal thickness: 32 mm; minimum thickness: 29 mm
• Centering diameter: 112 mm
• 5-hole bolt pattern
• Torque spec: 112 Nm
• Part number: 09.A966.11

Product Details

This Brembo Premium UV Coated OE Equivalent Rotor is developed to meet or exceed OEM specifications for the listed front applications. The coating is solvent-free and intended to protect the rotor during service and storage, while the intelligent marking location displays the part number and minimum thickness for easier inspection. For best braking restoration, Brembo recommends replacing rotors and pads together, and pairing this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations.

Fits 2008-2011 Lexus LX570, front. Fits 2013-2015 Lexus LX570, front. Fits 2008-2011 Toyota Land Cruiser, front. Fits 2013-2015 Toyota Land Cruiser, front. This part cross-references Beck/Arnley 083-3361 and Raybestos Brakes 980671 for the same application.

Common Brake Issues Addressed

• Brake pulsation from worn or uneven front rotors
• Noise and vibration during braking
• Corrosion on exposed rotor surfaces
• Reduced braking consistency from rotor wear
• Front brake service needs on Lexus LX570 and Toyota Land Cruiser models

Installation Notes

Inspect the hub and brake pads before installation, and verify rotor thickness against the minimum specification marked on the rotor. Clean the rotor and mating surfaces before assembly, then torque the wheel hardware to the vehicle specification. For a complete brake refresh, replace pads at the same time as the rotor.

Quality Assurance

Brembo is a trusted braking brand known for OE-style replacement components. The 09.A966.11 rotor is built to OE-equivalent standards and includes corrosion-resistant UV coating, dimensional markings, and application-specific engineering for front brake service on the listed vehicles.
