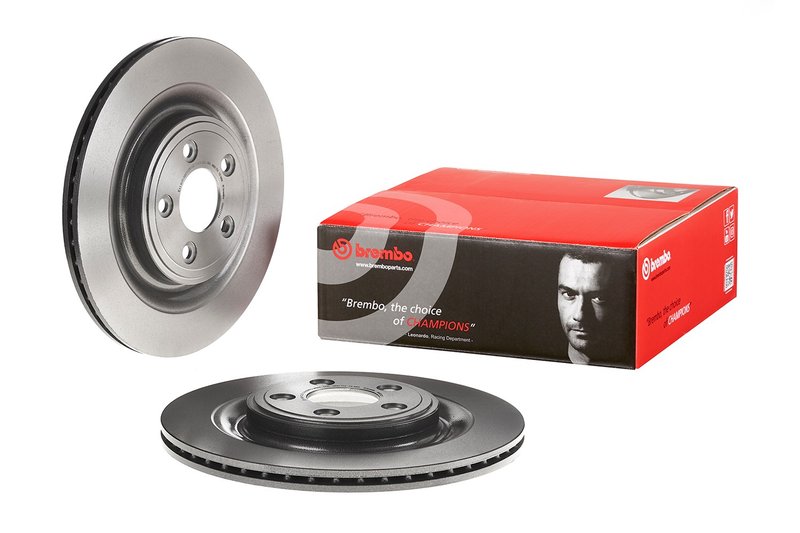

Brembo 09.B312.11 Disc Brake Rotor - Rear

Overview of Brembo 09.B312.11 Disc Brake Rotor

The Brembo 09.B312.11 disc brake rotor is engineered for Jaguar vehicles, including the S-Type, Super V8, Vanden Plas, XF, XJ, XJ8, XJR, XK, and XKR models. Designed with high carbon material and a UV coated finish, this rotor offers reliable performance and corrosion resistance for your braking system.

• High carbon material for enhanced durability and heat dissipation
• UV coated rust-resistant finish to protect against corrosion
• 326 mm outside diameter with 5 mounting holes
• Centering diameter of 64.5 mm for precise fitment
• Nominal thickness of 20 mm and minimum thickness of 18 mm
• Private vented (Pvt) rotor design for improved cooling
• Torque specification of 103 Nm for proper installation

Details on the Premium UV Coated OE Equivalent Rotor Line

The Premium UV Coated OE Equivalent Rotor line by Brembo is designed to meet or exceed original equipment specifications. This product line focuses on providing rotors with UV resistant coatings that help prevent rust and extend rotor life. The 09.B312.11 rotor benefits from this coating technology, ensuring consistent braking performance and durability comparable to factory-installed parts.

Technical Description and Specifications

This Brembo disc brake rotor is constructed from high carbon steel, which improves thermal conductivity and reduces the risk of warping under heavy braking conditions. The rotor measures 326 mm in outside diameter and features a centering diameter of 64.5 mm, ensuring a precise fit on compatible Jaguar models. With a nominal thickness of 20 mm and a minimum thickness of 18 mm, the rotor maintains structural integrity throughout its service life. The rotor includes 5 mounting holes and is designed as a private vented (Pvt) type, which enhances heat dissipation during braking. The UV coating provides a protective layer against rust, maintaining rotor surface quality over time. Installation requires a torque of 103 Nm to secure the rotor properly.

Compatible Vehicles and Common Applications

• Jaguar S-Type brake system replacement
• Jaguar Super V8 rotor upgrade or maintenance
• Jaguar Vanden Plas brake rotor service
• Jaguar XF front or rear disc brake rotor replacement
• Jaguar XJ, XJ8, XJR, XK, and XKR brake rotor maintenance

Installation Notes and Tips

Ensure the rotor surface and hub are clean and free of debris before installation. Use the specified torque of 103 Nm when tightening mounting bolts to avoid rotor distortion. Verify rotor thickness before installation; replace if below the minimum thickness of 18 mm. Properly seat the rotor on the hub using the 64.5 mm centering diameter for accurate alignment. It is recommended to inspect brake pads and other braking components during rotor replacement for optimal system performance.

Quality Assurance and Warranty

Brembo rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. The Premium UV Coated OE Equivalent Rotor line is designed to match original equipment specifications for fit and function. While specific warranty details are not provided here, Brembo products typically come with manufacturer-backed quality assurance. Always consult product documentation or the manufacturer for warranty information.
