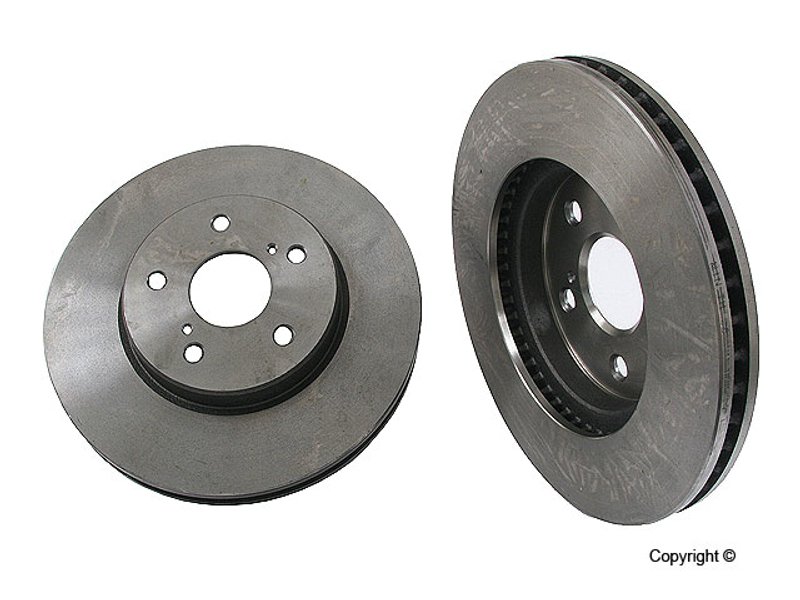

Brembo 09.B452.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor

Brembo 09.B452.11 is a premium UV coated OE equivalent disc brake rotor for front axle applications. It is built for direct replacement use on select Toyota and Lexus models, with a vented grey cast iron design that supports stable braking performance and everyday driving comfort.

Key Features

• Grey cast iron construction for consistent braking characteristics
• UV coated rust-resistant surface for added protection on the disc and braking plate surfaces
• Vented rotor design for front brake applications
• High carbon cast iron used where applicable to reduce noise and vibration
• Intelligent marking location shows part number and minimum thickness
• OE equivalent replacement for factory-style fit and function

Product Line Details

Brembo’s Premium UV Coated Rotor line is developed as a direct replacement for OE-style braking systems. The solvent-free UV coating helps protect exposed surfaces from corrosion, while the rotor design focuses on restoring braking feel and maintaining smooth operation. For applications such as Toyota Camry, Toyota Sienna, Toyota Solara, Toyota Avalon, and Lexus ES300, this line is aimed at drivers who want a factory-style front rotor with corrosion protection and consistent pedal response.

Fitment

• Fits 2004-2010 Toyota Sienna, front
• Fits 2004-2008 Toyota Solara, front
• Fits 2005-2007 Toyota Avalon, front
• Fits 2006 Toyota Camry, front, except Japan built
• Fits 2005 Toyota Camry, front, USA built
• Fits 2005 Toyota Camry, front, without 15in wheels
• Fits 2004 Toyota Camry, front, stepped hat rotor design
• Fits 2004 Toyota Camry, front, without 15in wheels, stepped hat rotor design
• Fits 2002-2003 Lexus ES300, front, to 09/2002
• Fits 2002-2003 Toyota Camry, front, Japan built, plain hat rotor design

What It Helps Address

• Brake pulsation from worn or uneven front rotors
• Noise and vibration during braking
• Surface corrosion on exposed rotor areas
• Reduced braking consistency from rotor wear
• Factory-style replacement needs for Toyota and Lexus front brake service

Installation Notes

Verify rotor dimensions before installation, including 296 mm outside diameter, 49 mm height, 28 mm nominal thickness, and 26 mm minimum thickness. This rotor uses a 5-hole pattern and a vented design. For best braking restoration, replace rotors and pads together and pair the rotor with Brembo NAO/Ceramic or Low Met brake pad formulations where specified by the application.

Quality Assurance

Brembo manufactures this rotor as an OE equivalent replacement with corrosion-resistant UV coating and application-specific engineering. Part number 09.B452.11 is also referenced by several aftermarket numbers, including Centric Parts 120.44125.
