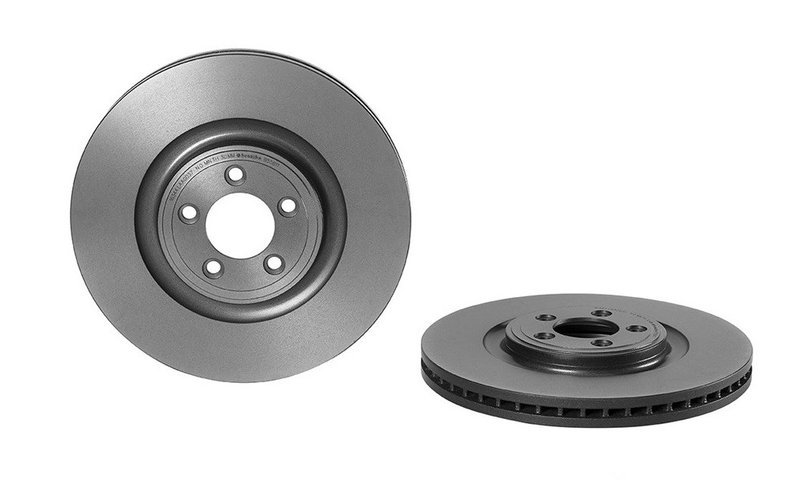

Brembo 09.B556.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor for Jaguar

The Brembo 09.B556.11 is a Premium UV Coated OE Equivalent Rotor built as a direct replacement for select Jaguar front brake applications. It uses high carbon cast iron where applicable to help reduce noise and vibration, while the UV-coated surface adds corrosion protection to the disc and braking plate surfaces.

For Jaguar F-Type, XJ, XF, XK, XJR, XKR, S-Type, and Super V8 front brake service, this rotor is sized for 355 mm applications and is engineered to restore braking consistency with OE-style fit and finish.

Key Features

• Premium UV Coated OE equivalent disc brake rotor
• High carbon construction for reduced noise and vibration where applicable
• UV coating helps protect exposed rotor surfaces from rust
• Vented rotor design for front brake applications
• 355 mm outside diameter, 32 mm nominal thickness, 30 mm minimum thickness
• 5-lug pattern with 71 mm centering diameter and 48 mm height
• Intelligent marking location shows part number and minimum thickness

Detailed Description

Brembo 09.B556.11 is part of the Premium UV Coated OE Equivalent Rotor line, a direct-replacement rotor family focused on OE-style dimensions, corrosion resistance, and consistent braking feel. The solvent-free UV coating is applied to protect the rotor surface during service and help maintain a cleaner appearance over time. On applications that use high carbon cast iron, the material helps control brake noise and vibration while supporting stable performance under repeated stops.

This rotor is a strong match for front brake service on Jaguar F-Type, Jaguar XJ, Jaguar XF, Jaguar XK, Jaguar XJR, Jaguar XKR, Jaguar S-Type, and Jaguar Super V8 models within the listed fitment range. Part number 09.B556.11 also appears in cross-reference listings such as Beck/Arnley 083-3430 and Raybestos Brakes 980646 for the same application.

What It Helps Address

• Brake pulsation from worn or uneven front rotors
• Noise and vibration during braking
• Surface rust on exposed rotor areas
• Reduced braking consistency from rotor wear
• Fitment issues when replacing an OE-style front rotor on select Jaguar models

Installation Notes and Tips

Replace rotors and pads together to restore braking performance and maintain even wear. Verify rotor diameter, thickness, and centering dimensions before installation, especially on Jaguar F-Type, XJ, and XF front brake systems. Confirm the vehicle is not equipped with excluded brake packages such as ceramic composite brakes or Alcon brakes where noted in the fitment data. Follow factory torque procedures and inspect caliper hardware, pad condition, and hub surfaces during service.

Quality Assurance

Brembo manufactures this rotor as an OE-equivalent replacement with corrosion-resistant UV coating and application-specific dimensions for the listed Jaguar front brake platforms. The rotor includes clear minimum-thickness marking for service reference and is built to meet or exceed OEM specifications for the covered applications.
