Brembo 09.B563.11 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Brembo
 Premium UV Coated OE Equivalent Rotor

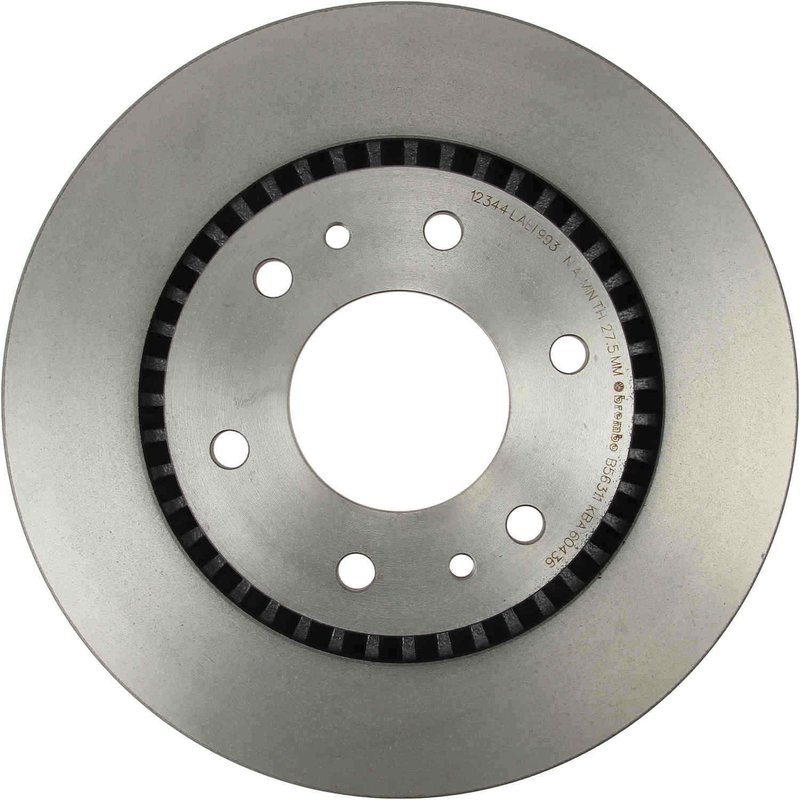

Brembo 09.B563.11 Disc Brake Rotor - Front

Brand Brembo 09.B563.11
Position Front
Material Grey cast iron
Height (MM) 55
Minimum Thickness (MM) 29
Nominal Thickness (MM) 29
Number of Holes 6
Outside Diameter (MM) 302
Rust Resistant Coating Uv coated
Solid Or Vented Type Rotor Vented
Product line Premium UV Coated OE Equivalent Rotor
Fits Buick, Chevrolet, and GMC · 17 vehicles

OE-equivalent replacement. Built to meet or exceed OEM specifications for direct service replacement.

UV-coated surface. Solvent-free coating helps protect exposed rotor surfaces from corrosion.

Vented cast iron design. Grey cast iron construction supports stable braking and reduced noise.

Cross-references Centric Parts 120.66063, Centric Parts 121.66063 and Centric Parts 320.66063 for the same application. See all 27.

$122.52Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $122.52
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

OE-Equivalent Front Brake Rotor

This Brembo disc brake rotor is a direct replacement for select Chevrolet Trailblazer, GMC Envoy, and Buick Rainier applications. It is built to meet or exceed OEM specifications and uses a UV-coated surface for added protection on the braking plate surfaces.

  • Fits 2006-2009 Chevrolet Trailblazer, front.
  • Fits 2006-2009 GMC Envoy, front.
  • Fits 2006-2007 Buick Rainier, front.

Key Features

  • Premium UV-coated rotor with solvent-free surface protection.
  • Grey cast iron construction for stable braking performance.
  • Vented design helps manage heat during repeated stops.
  • 302 mm outside diameter and 29 mm nominal thickness.
  • Six-hole rotor configuration for the listed applications.

Product Details

Brembo 09.B563.11 is a vented disc brake rotor engineered as an OE-equivalent replacement for the front axle on select Chevrolet Trailblazer, GMC Envoy, and Buick Rainier models. The UV coating helps protect exposed surfaces from corrosion, while the grey cast iron rotor construction supports quieter operation and consistent pedal feel. The rotor is marked with the part number and minimum thickness for service reference. Brembo 09.B563.11 is intended for brake service where rotor wear, surface damage, or corrosion has reduced braking performance. For best results, replace rotors and pads together and pair this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations. This part cross-references Centric Parts (e.g., 120.66063, 121.66063) for the same application.

Common Issues This Part Can Address

  • Brake pulsation from rotor wear or thickness variation.
  • Surface rust on the braking face or hat area.
  • Noise and vibration during braking.
  • Reduced stopping consistency from heat-related rotor fatigue.

Installation Notes

Verify rotor diameter, thickness, and hole count before installation. Clean the hub mounting surface and inspect pads, calipers, and hardware during brake service. Follow the minimum thickness marking during inspection and replace pads at the same time when wear is present.

Quality Assurance

Brembo develops this rotor as a direct replacement that meets or exceeds OEM specifications. The UV-coated finish is solvent free, and the rotor includes service markings for thickness inspection and part identification.

Related reading

This part fits 17 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
2009ChevroletTrailblazerLT——FrontPremium UV Coated OE Equivalent Rotor
2009GMCEnvoySLT——FrontPremium UV Coated OE Equivalent Rotor
2009GMCEnvoySLE——FrontPremium UV Coated OE Equivalent Rotor
2008ChevroletTrailblazerLT4.2LL6FrontPremium UV Coated OE Equivalent Rotor
2008ChevroletTrailblazerBase4.2LL6FrontPremium UV Coated OE Equivalent Rotor
2008GMCEnvoySLT——FrontPremium UV Coated OE Equivalent Rotor
2008GMCEnvoySLE——FrontPremium UV Coated OE Equivalent Rotor
2007BuickRainierCXL4.2LL6FrontPremium UV Coated OE Equivalent Rotor
2007ChevroletTrailblazerLT4.2LL6FrontPremium UV Coated OE Equivalent Rotor
2007ChevroletTrailblazerLS4.2LL6FrontPremium UV Coated OE Equivalent Rotor
2007GMCEnvoySLT——FrontPremium UV Coated OE Equivalent Rotor
2007GMCEnvoySLE——FrontPremium UV Coated OE Equivalent Rotor
2006BuickRainierCXL4.2LL6FrontPremium UV Coated OE Equivalent Rotor
2006ChevroletTrailblazerLT4.2LL6FrontPremium UV Coated OE Equivalent Rotor
2006ChevroletTrailblazerLS4.2LL6FrontPremium UV Coated OE Equivalent Rotor
2006GMCEnvoySLT——FrontPremium UV Coated OE Equivalent Rotor
2006GMCEnvoySLE——FrontPremium UV Coated OE Equivalent Rotor
Directly replaces or cross-references 27 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 120.66063Centric Parts — 121.66063Centric Parts — 320.66063DuraGo — BR55112Intermotor — 55112PowerStop — AR8659PowerStop — AR8659EVCPowerStop — AR8659SCRRaybestos Brakes — 580359Raybestos Brakes — 580359FZNRaybestos Brakes — 580359RStandard Ignition — 2743209 B563 1009.B563.10125.660630986UB06494420516219985322582610232066063FBD126446BD126446EBR5511201BR5511202CW29707NB 48880359PFR 248880359
