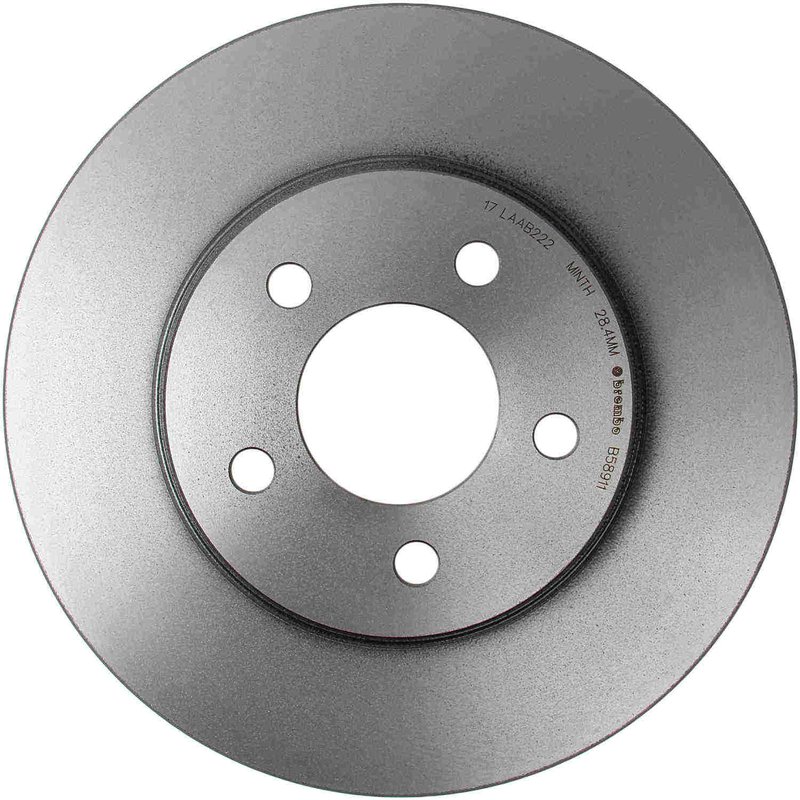

Brembo 09.B589.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor for Mustang

The Brembo 09.B589.11 is a front disc brake rotor built as a direct OE-style replacement for 2005-2010 Ford Mustang applications. Its UV-coated surface helps protect exposed areas of the rotor, while the grey cast iron construction supports consistent braking performance and everyday driving comfort.

Key Features

• Fits 2005-2010 Ford Mustang, front
• Premium UV Coated OE Equivalent Rotor from Brembo
• Grey cast iron construction for stable braking characteristics
• Vented rotor design for front brake use
• 293 mm outside diameter, 30 mm nominal thickness
• 28.4 mm minimum thickness with intelligent wear marking location
• 5-hole bolt pattern
• UV-coated finish helps resist rust on exposed surfaces

Product Details

Brembo 09.B589.11 is part of Brembo’s Premium UV Coated OE Equivalent Rotor line, developed for direct replacement service where OEM-level fit and function are required. The UV coating is solvent-free and applied to protect the disc, including braking plate surfaces, which helps preserve appearance and surface integrity over time. Where applicable, the high carbon cast iron construction is used to reduce noise and vibration while supporting smooth pedal feel and driving comfort. This rotor is a strong match for drivers looking for a front brake rotor for Ford Mustang 2005-2010 service, especially when restoring braking performance on a vehicle that needs OE-style dimensions and finish. This part number is 09.B589.11, and it is also referenced as Brembo 09.B589.11 in catalog listings.

This part cross-references Raybestos Brakes (e.g., 680313, 680313FZN) for the same application.

What It Helps Address

• Brake pulsation caused by rotor wear or thickness variation
• Surface rust on exposed rotor areas
• Noise and vibration during braking
• Reduced braking consistency from worn front rotors
• Need for an OE-equivalent front rotor on a Ford Mustang

Installation Notes and Tips

For best results, replace rotors and pads together to restore braking performance evenly. Verify rotor dimensions, bolt pattern, and minimum thickness before installation. The rotor includes an intelligent marking location that shows the part number and minimum thickness for service reference. Confirm fitment for 2005-2010 Ford Mustang front brake applications before ordering. The part number 09.B589.11 should be matched to the vehicle’s front axle brake setup.

Quality Assurance

Brembo manufactures this rotor to meet or exceed OEM specifications for direct replacement use. The UV-coated finish, OE-equivalent dimensions, and service markings support accurate installation and long-term maintenance on compatible Ford Mustang front brake applications.
