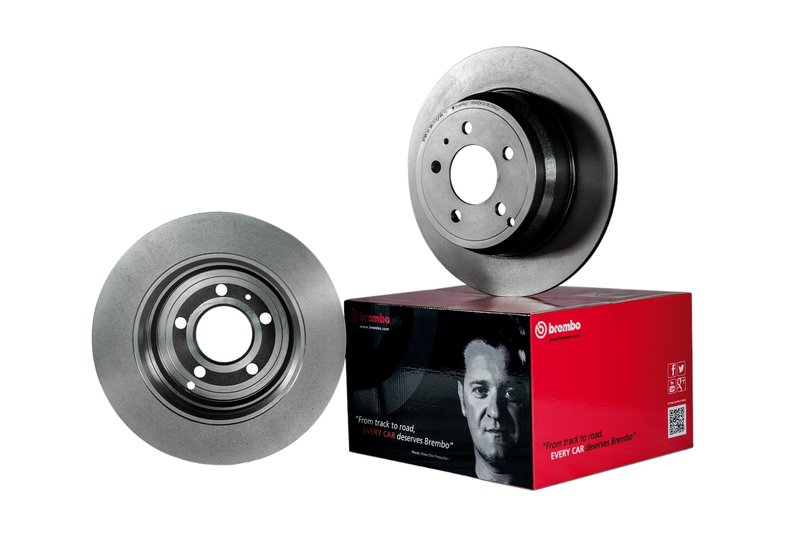

Brembo 09.C005.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor for Enclave, Traverse, Acadia

Brembo 09.C005.11 is a premium UV coated OE equivalent disc brake rotor for front axle applications on select Buick, Chevrolet, GMC, and Saturn models. It is built as a direct replacement rotor with a vented design, grey cast iron construction, and corrosion-resistant UV coating for dependable braking performance and cleaner long-term appearance.

Key Features

• OE-equivalent replacement rotor for front brake service
• UV coated rust-resistant surface on the braking plate and exposed areas
• Grey cast iron construction for stable braking characteristics
• Vented rotor design for improved heat management
• 325 mm outside diameter, 29 mm nominal thickness, 27.5 mm minimum thickness
• 6-hole bolt pattern with 55 mm height
• Intelligent marking location shows part number and minimum thickness

Product Details

The Brembo Premium UV Coated Rotor line is developed for drivers who want an OE-style brake rotor with corrosion protection and consistent fitment. Part number 09.C005.11 uses a solvent-free UV coating to help protect the rotor surface, including the braking plate surfaces, while the grey cast iron construction supports smooth operation and reduced noise and vibration where applicable. For restoring braking performance, Brembo recommends replacing rotors and pads together, and pairing this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations.

Compatible With 2008-2017 Buick Enclave, front; 2009-2017 Chevrolet Traverse, front; 2017 GMC Acadia Limited, front; 2007-2016 GMC Acadia, front; and 2007-2010 Saturn Outlook, front. This part cross-references Raybestos Brakes (e.g., 580560, 580560FZN) for the same application. The Brembo 09.C005.11 rotor is also referenced by multiple aftermarket part numbers for these front brake applications.

What This Rotor Helps Address

• Brake pulsation from worn or uneven front rotors
• Surface rust on exposed rotor areas
• Noise and vibration during braking
• Reduced braking consistency from heat buildup
• Loss of braking performance caused by rotor wear beyond minimum thickness

Installation Notes and Tips

Verify rotor diameter, bolt pattern, and minimum thickness before installation. Replace brake pads at the same time as the rotor when restoring front brake performance. Confirm front axle fitment for 2008-2017 Buick Enclave, 2009-2017 Chevrolet Traverse, 2017 GMC Acadia Limited, 2007-2016 GMC Acadia, or 2007-2010 Saturn Outlook before ordering. The rotor includes an intelligent marking location for part identification and wear inspection.

Quality Assurance

Brembo manufactures this rotor as an OE-equivalent replacement built to meet or exceed OEM specifications. The UV coated finish is engineered for corrosion resistance, and the vented grey cast iron design supports consistent braking performance in everyday driving.
