Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

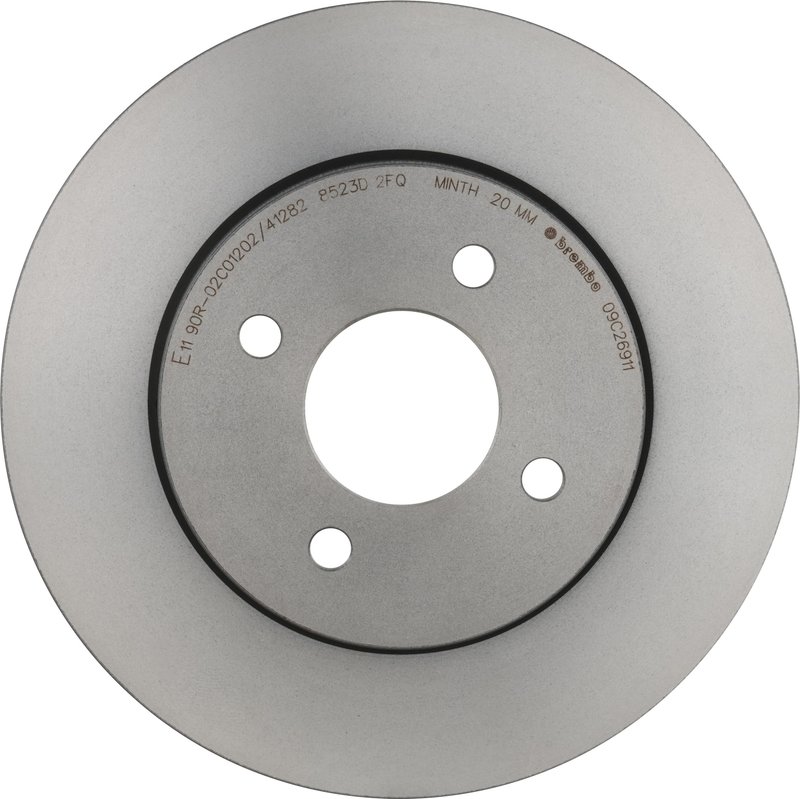

Brembo 09.C269.11 Disc Brake Rotor - Front
| Brand | Brembo 09.C269.11 |
|---|---|
| Position | Front |
| Material | Gray cast iron |
| Discard Thickness | 20 |
| Nominal Thickness | 22 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.73 |
| Overall Height | 44 |
| Outside Diameter | 10.24 |
| Outside Diameter | 260 |
| Grade Type | Premium |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Weight | 4.7 |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.40 |
| Center Hole Diameter | 61.00 |
| Stud/Lug Hole Quantity | 4 |
| Product line | PRIME |
| Fits | Nissan · 19 vehicles |
OE-style replacement. Brembo PRIME rotor built for direct-fit brake service.
Vented design. Helps manage heat during repeated braking.
Rust-resistant coating. Helps protect the rotor surface during storage and use.
Cross-references DuraGo BR901112, PowerStop JBR1539 and PowerStop JBR1539EVC for the same application. See all 13.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Brake Rotor Overview
The Brembo PRIME disc brake rotor, part number 09.C269.11, is a vented front rotor built for select Nissan small-car applications. It combines gray cast iron construction with a smooth surface and rust-resistant coating for consistent braking performance and corrosion protection.
Compatible with Nissan Micra, Nissan Versa, and Nissan Versa Note front brake applications, this rotor is sized at 260 mm outside diameter with a 61 mm center hole and 4-lug pattern. The PRIME line focuses on OE-style replacement parts with the fit and finish expected for routine brake service.
Key Features
- Gray cast iron, full-cast construction for stable braking performance.
- Vented rotor design helps manage heat during repeated stops.
- Rust-resistant coating helps protect the rotor surface from corrosion.
- Smooth friction surface supports even pad contact.
- Premium-grade Brembo PRIME rotor, part number 09.C269.11.
Detailed Description
Built for front brake service on select Nissan Micra, Versa, and Versa Note models, the Brembo 09.C269.11 rotor is engineered as a direct replacement-style disc brake rotor for applications that use a vented, 4-lug design. The gray cast iron body, 22 mm nominal thickness, and 20 mm discard thickness provide the dimensional foundation needed for proper brake service, while the rust-resistant coating helps preserve the rotor during storage and early use. The PRIME product line is Brembo's OE-oriented replacement range, aimed at consistent fitment and dependable braking feel. If you are replacing worn front rotors on a Nissan Versa or Nissan Micra, this part number 09.C269.11 matches the listed applications and specifications.
What It Is Used For
- Replacing worn or below-spec front brake rotors.
- Addressing brake pulsation caused by rotor wear or uneven surfaces.
- Restoring braking contact when the rotor face is scored or corroded.
- Supporting proper brake service on vented front rotor applications.
- Matching OE-style dimensions for listed Nissan fitments.
Installation Notes and Tips
Verify rotor diameter, center hole size, and lug count before installation. Clean the hub mounting surface thoroughly to reduce runout concerns, and inspect pads and caliper components at the same time. For best results, follow the vehicle manufacturer's brake service procedures and bed in new pads according to the pad maker's instructions.
Quality Assurance
Brembo PRIME parts are positioned as OE-style replacement components with attention to material quality, coating, and dimensional accuracy. Part number 09.C269.11 is cross-referenced to DuraGo BR901112 for the same application.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Nissan | Micra | — | — | — | Front | PRIME |
| 2019 | Nissan | Versa | — | — | — | Front | PRIME |
| 2019 | Nissan | Versa Note | — | — | — | Front | PRIME |
| 2018 | Nissan | Micra | — | — | — | Front | PRIME |
| 2018 | Nissan | Versa | — | — | — | Front | PRIME |
| 2018 | Nissan | Versa Note | — | — | — | Front | PRIME |
| 2017 | Nissan | Micra | — | — | — | Front | PRIME |
| 2017 | Nissan | Versa | — | — | — | Front | PRIME |
| 2017 | Nissan | Versa Note | — | — | — | Front | PRIME |
| 2016 | Nissan | Micra | — | — | — | Front | PRIME |
| 2016 | Nissan | Versa | — | — | — | Front | PRIME |
| 2016 | Nissan | Versa Note | — | — | — | Front | PRIME |
| 2015 | Nissan | Micra | — | — | — | Front | PRIME |
| 2015 | Nissan | Versa | 1.6 S | — | — | Front | PRIME UV Coated |
| 2015 | Nissan | Versa Note | — | — | — | Front | PRIME |
| 2014 | Nissan | Versa | — | — | — | Front | PRIME |
| 2014 | Nissan | Versa Note | — | — | — | Front | PRIME |
| 2013 | Nissan | Versa | — | — | — | Front | PRIME |
| 2012 | Nissan | Versa | — | 1.6L | L4 | Front | PRIME UV Coated |
| No rows match your filter. | |||||||
