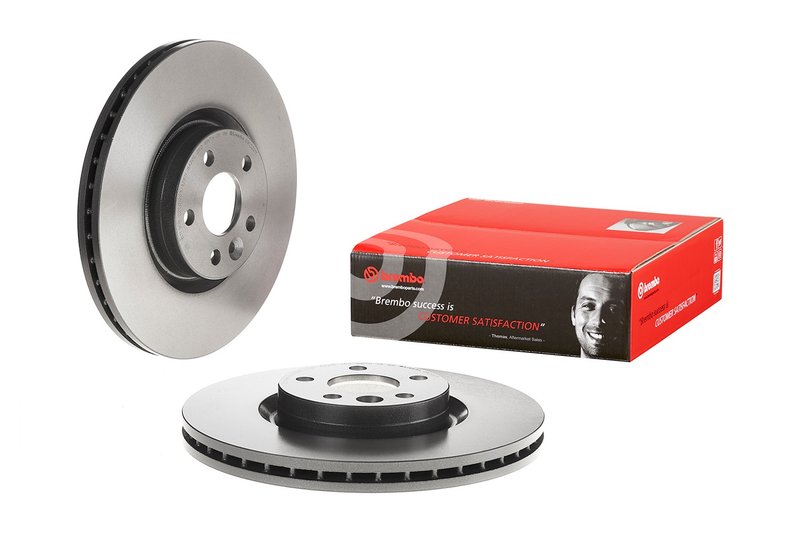

Brembo 09.C522.11 Disc Brake Rotor - Front
| Brand | Brembo 09.C522.11 |
|---|---|
| Position | Front |
| Material | High carbon cast iron |
| Discard Thickness | 26 |
| Nominal Thickness | 28 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.05 |
| Overall Height | 52 |
| Outside Diameter | 12.76 |
| Outside Diameter | 324 |
| Grade Type | Premium |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Weight | 10.6 |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.52 |
| Center Hole Diameter | 64 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PRIME |
| Fits | Volvo · 2 vehicles |
OE-style replacement. Brembo PRIME rotor built for direct-fit brake service.
Vented design. Helps manage heat for steadier braking performance.
Rust resistant coating. Adds surface protection before and after installation.
Cross-references Raybestos Brakes 982111FZN, Raybestos Brakes 982111R and 31423214-0 for the same application. See all 10.
Overview
The Brembo PRIME 09.C522.11 disc brake rotor is a vented, high-carbon cast iron rotor built for direct replacement service. It is engineered for drivers who need consistent braking performance and a smooth rotor surface for everyday use.
Compatible With 2016-2017 Volvo XC60, front. The Brembo 09.C522.11 also matches the PRIME product line, which focuses on OE-style replacement parts with practical corrosion protection and refined rotor construction.
Key Features
- High carbon cast iron construction for stable braking characteristics.
- Vented rotor design helps manage heat during repeated stops.
- Rust resistant coating adds protection against surface corrosion.
- Smooth surface type supports even pad contact.
- Premium-grade rotor built with full cast construction.
Detailed Description
This Brembo brake rotor is identified by part number 09.C522.11 and is built for the front brake application on the Volvo XC60. The rotor uses a full cast, vented design with a 324 mm outside diameter, 64 mm center hole diameter, and five lug holes. Its high carbon cast iron material and premium-grade construction support steady braking feel and dependable wear characteristics in normal road use. The rust resistant coating helps protect the rotor surface before and after installation, while the smooth finish promotes consistent pad contact. Brembo 09.C522.11 is a direct-fit rotor choice for Volvo XC60 brake service.
This part cross-references Raybestos Brakes (e.g., 982111FZN, 982111R) for the same application.
What It Helps Address
- Brake pulsation caused by worn or uneven rotor surfaces.
- Reduced braking consistency from heat buildup in the rotor.
- Surface corrosion on exposed brake components.
- Noise or vibration related to rotor wear.
Installation Notes
Fits 2016-2017 Volvo XC60, front. Verify rotor dimensions, hub fitment, and brake pad condition before installation. Confirm the part number 09.C522.11 against the vehicle application and inspect related brake components for wear during service.
Quality Assurance
Brembo PRIME parts are positioned as OE-style replacement components with corrosion protection and application-specific engineering. The part number 09.C522.11 is built to meet the dimensional and material requirements listed for this application.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Volvo | XC60 | T5 Dynamic | Front | PRIME |
| 2016 | Volvo | XC60 | T5 Platinum | Front | PRIME |
