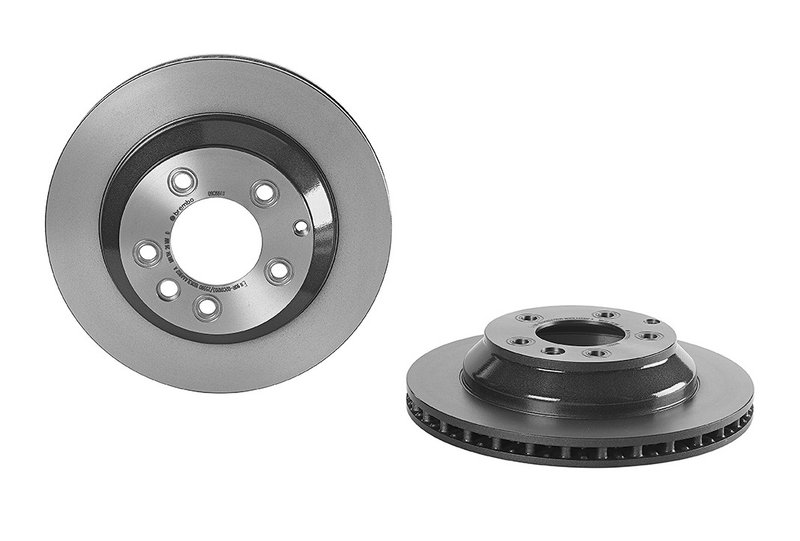

Brembo 09.C884.11 Disc Brake Rotor - Rear

Overview of Brembo 09.C884.11 Disc Brake Rotor

The Brembo 09.C884.11 disc brake rotor is engineered for reliable braking performance on Audi, Porsche, and Volkswagen vehicles, specifically designed for models like the Cayenne, Q7, and Touareg. This rotor features a high carbon material construction and a UV-resistant coating to enhance durability and corrosion resistance.

• High carbon material for improved heat dissipation and wear resistance
• UV coated rust-resistant surface to extend rotor life
• 330 mm outside diameter with 5 mounting holes and 85 mm centering diameter
• Nominal thickness of 28 mm and minimum thickness of 26 mm for consistent braking performance
• Private vented (Pvt) rotor design for optimized cooling
• Torque specification of 160 Nm for proper installation

Detailed Product Features and Specifications

This Brembo disc brake rotor, part number 09.C884.11, is crafted from high carbon steel, which provides enhanced thermal conductivity and resistance to warping under heavy braking conditions. The rotor measures 330 mm in outside diameter and 73.5 mm in height, making it compatible with specific Audi Cayenne, Porsche Cayenne, Volkswagen Q7, and Touareg models. It features a 5-hole mounting pattern with an 85 mm centering diameter to ensure precise fitment. The rotor’s nominal thickness is 28 mm, with a minimum thickness threshold of 26 mm to maintain safe braking performance over time.

The rotor is UV coated, providing a rust-resistant finish that helps prevent corrosion and extends the service life of the part. Its private vented (Pvt) design allows for effective heat dissipation, reducing the risk of brake fade during demanding driving conditions. The recommended torque specification for installation is 160 Nm, ensuring secure and proper mounting.

About the Premium UV Coated OE Equivalent Rotor Line

The Brembo Premium UV Coated OE Equivalent Rotor line is designed to meet or exceed original equipment specifications while offering enhanced protection against rust and corrosion through a specialized UV coating. This product line focuses on delivering rotors that maintain OE fit, form, and function, making them suitable replacements for Audi, Porsche, and Volkswagen vehicles requiring reliable braking components.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Audi Cayenne, Porsche Cayenne, Volkswagen Q7, and Touareg
• Addresses brake noise and vibration caused by uneven rotor surfaces
• Improves braking consistency by restoring proper rotor thickness and surface condition
• Prevents premature rotor corrosion and rust buildup
• Supports safe braking performance under high thermal loads

Installation Notes and Tips

• Ensure rotor thickness meets minimum 26 mm specification before installation
• Use a calibrated torque wrench to tighten mounting bolts to 160 Nm
• Clean hub surface and mounting points to ensure proper rotor seating
• Inspect brake pads and replace if worn to maintain optimal braking
• Follow vehicle manufacturer guidelines for brake system maintenance

Quality Assurance and Warranty

Brembo rotors, including the 09.C884.11, are manufactured to meet stringent quality standards and OE specifications. The Premium UV Coated OE Equivalent Rotor line undergoes rigorous testing to ensure durability, fitment accuracy, and performance consistency. Warranty coverage details should be confirmed with the point of purchase or Brembo directly, as they may vary by region and application.
