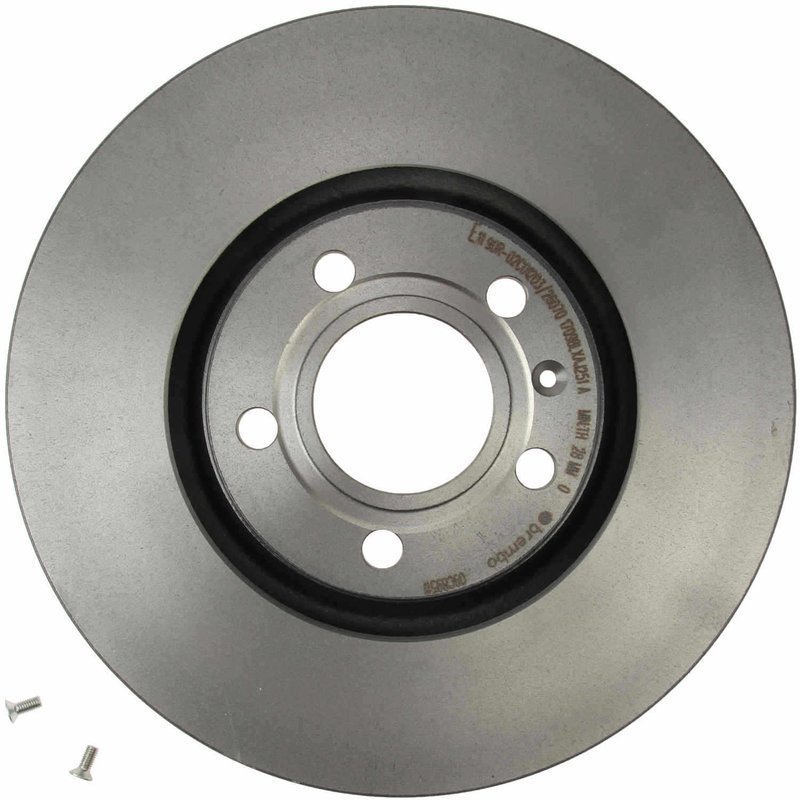

Brembo 09.C895.11 Disc Brake Rotor - Front

Overview of Brembo Premium UV Coated OE Equivalent Rotor

The Brembo 09.C895.11 disc brake rotor is engineered for Audi A6, A6 Quattro, and S6 models, delivering reliable braking performance. Designed with high carbon material and a UV resistant coating, this rotor offers durability and consistent stopping power.

• High carbon material for enhanced heat dissipation
• UV coated rust-resistant finish for extended rotor life
• Centering diameter of 68 mm and outside diameter of 321 mm
• Nominal thickness of 30 mm with a minimum thickness of 28 mm
• Includes fixing screws for straightforward installation
• 5-hole design compatible with specified Audi models
• Private vented (Pvt) rotor type for improved cooling
• Height of 59.4 mm and torque specification of 120 Nm

Details on the Premium UV Coated OE Equivalent Rotor Line

The Brembo Premium UV Coated OE Equivalent Rotor line is designed to meet original equipment specifications while providing additional protection against corrosion through a UV resistant coating. This ensures the rotor maintains its structural integrity and appearance over time, making it suitable for Audi A6, A6 Quattro, and S6 vehicles requiring OE quality replacement parts.

Technical Description and Specifications

This disc brake rotor, part number 09.C895.11, is constructed from high carbon material, which improves thermal conductivity and reduces the risk of warping under heavy braking conditions. The rotor features a 5-hole mounting pattern with a centering diameter of 68 mm and an outside diameter of 321 mm, matching the exact fitment requirements for Audi A6, A6 Quattro, and S6 models. The rotor thickness is nominally 30 mm, with a minimum allowable thickness of 28 mm to ensure safe operation. Its private vented design enhances heat dissipation, while the UV coating provides resistance against rust and corrosion. Fixing screws are included to facilitate proper installation, and the rotor height measures 59.4 mm. The recommended torque specification for mounting is 120 Nm.

Applications and Problem Solving

• Replacement for worn or warped rotors on Audi A6, A6 Quattro, and S6
• Addresses brake noise and vibration caused by uneven rotor surfaces
• Prevents rust and corrosion buildup with UV coated finish
• Improves braking consistency under high thermal stress
• Restores proper rotor thickness for safe braking performance

Installation Notes and Tips

Ensure the rotor surface and hub are clean and free of debris before installation. Use the included fixing screws and tighten to the specified torque of 120 Nm to secure the rotor properly. It is recommended to inspect brake pads and replace if necessary to maintain optimal braking performance. Verify rotor thickness before installation to confirm it meets minimum thickness requirements.

Quality Assurance and Warranty

Brembo rotors are manufactured to meet OE standards for fit, form, and function. The Premium UV Coated OE Equivalent Rotor line undergoes rigorous quality control to ensure durability and performance. Warranty information should be confirmed with the point of purchase or Brembo directly, as it may vary by region.
