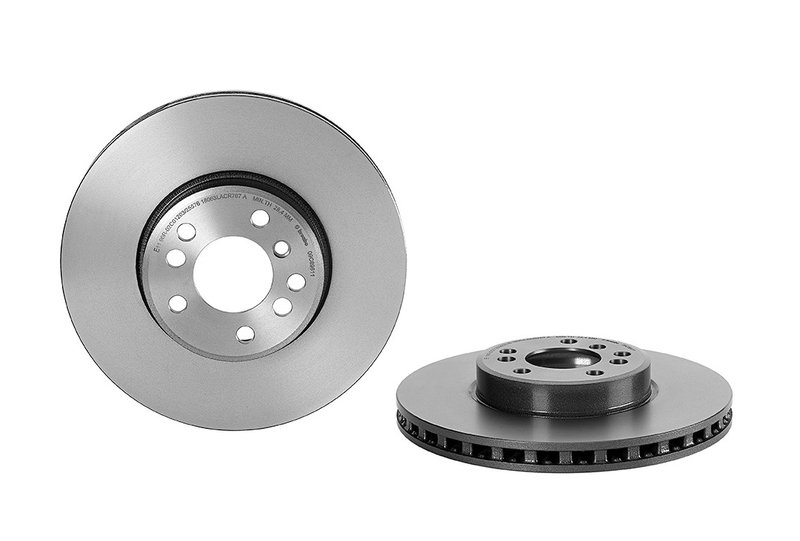

Brembo 09.C896.11 Disc Brake Rotor - Front

Brembo UV Coated Front Rotor for BMW X5

The Brembo 09.C896.11 is a premium UV coated disc brake rotor built as a direct OE-style replacement for the front axle. It is engineered for 2000-2006 BMW X5 applications and uses high carbon cast iron where applicable to help reduce noise and vibration while supporting consistent braking feel.

The UV-coated surface adds corrosion protection to the disc and braking plate surfaces, while the included fixing screw kit supports a cleaner replacement process. This rotor is a strong match for drivers looking for a BMW X5 front brake rotor that restores braking performance with OE-equivalent dimensions and finish.

Key Features

• Part number 09.C896.11
• Fits 2000-2006 BMW X5, front
• Premium UV coated OE equivalent rotor
• High carbon construction for reduced noise and vibration
• Outside diameter: 332 mm
• Nominal thickness: 30 mm
• Minimum thickness: 28.4 mm
• Height: 62.4 mm
• Rust-resistant UV coating on disc and braking plate surfaces
• Fixing screws included
• PVT solid or vented type rotor design

Product Details

Brembo’s UV Coated rotor line is made for direct replacement service where OE dimensions, finish, and braking consistency matter. The solvent-free UV coating helps protect the rotor surface from corrosion, and the intelligent marking location shows the part number and minimum thickness for easier service checks. For best braking restoration, replace rotors and pads together and pair this rotor with Brembo NAO/Ceramic or Low Met brake pad formulations. This part cross-references Centric Parts 121.34050 and Raybestos Brakes 980017 for the same application.

Common Brake Issues This Rotor Can Address

• Brake pulsation from worn or uneven rotor surfaces
• Noise caused by rotor wear or material fatigue
• Corrosion on exposed braking surfaces
• Reduced braking consistency from rotors below service thickness
• Loss of pedal feel from heat-affected front brake components

Installation Notes

Verify rotor thickness and hub condition before installation. Clean the hub mounting surface to help prevent runout-related brake noise or pedal vibration. Because this rotor is specified for the front position, confirm left/right front axle service requirements for your BMW X5 before ordering. For proper brake system restoration, install new pads at the same time as the rotors.

Quality Assurance

Brembo is a trusted braking brand known for OE-equivalent replacement components. The 09.C896.11 is built to meet or exceed OEM specifications for the listed BMW X5 front applications and is manufactured with corrosion protection and service markings to support accurate maintenance.
