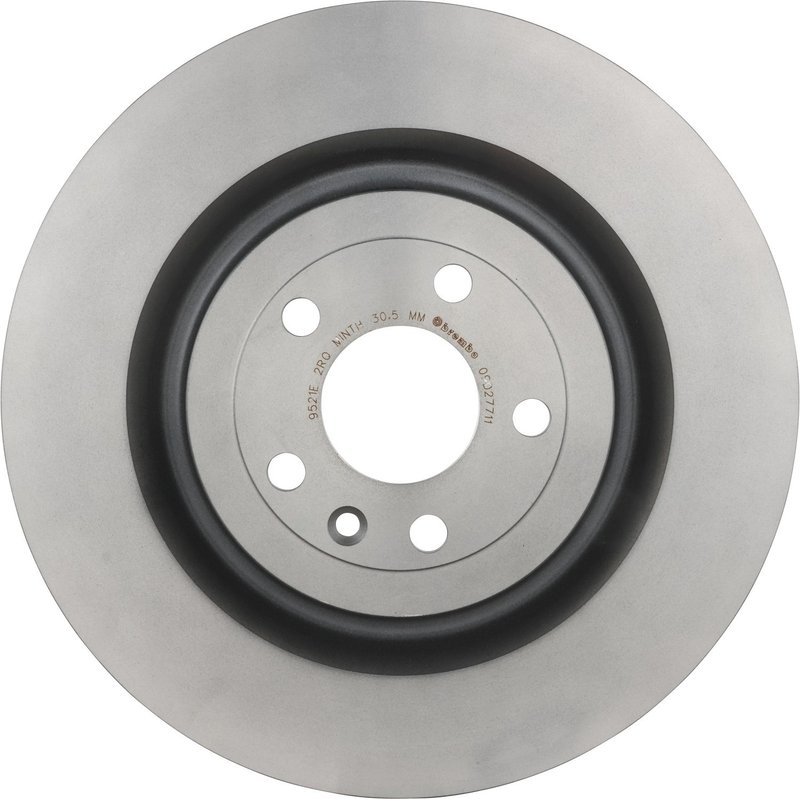

Brembo 09.D277.11 Disc Brake Rotor - Front

Brake Rotor for Ford and Lincoln Front Applications

This Brembo PRIME disc brake rotor, part number 09.D277.11, is built for front brake service on select Ford and Lincoln vehicles. It combines a vented full-cast design with a smooth friction surface and rust-resistant coating for consistent braking performance and easier service life.

Key Features

• Gray cast iron construction with a premium-grade finish
• Vented rotor design for improved heat management
• Rust-resistant coating helps protect non-friction surfaces
• Smooth surface type for even pad contact
• Full cast construction for a solid rotor structure
• 5-lug bolt pattern with 114.3 mm bolt circle

Detailed Description

The Brembo PRIME 09.D277.11 is a vented disc brake rotor engineered for front brake fitment on 2013-2019 Ford Explorer, Ford Flex, Ford Police Interceptor Sedan, Ford Police Interceptor Utility, and Ford Taurus, plus 2013-2019 Lincoln MKT and 2013-2016 Lincoln MKS. It also fits 2014-2018 Ford Special Service Police Sedan, all in front applications. With a 352 mm outside diameter, 32 mm nominal thickness, and 68 mm center hole diameter, this rotor is sized for the listed applications and built from gray cast iron for stable braking characteristics.

Brembo PRIME is the brand’s premium rotor line, focused on OE-style replacement parts with attention to material quality, surface finish, and corrosion protection. Part number 09.D277.11 cross-references Centric Parts 120.65136 and 320.65136 for the same application.

What It Is Used For

• Replacing a worn or below-spec front brake rotor
• Correcting brake pulsation caused by rotor wear or thickness variation
• Restoring braking surface condition after scoring or heat checking
• Addressing corrosion on the rotor hat or non-friction surfaces
• Maintaining proper brake performance on the listed Ford and Lincoln models

Installation Notes and Tips

Verify rotor diameter, thickness, center bore, and bolt pattern before installation. Clean the hub mounting surface thoroughly to reduce runout concerns, and inspect pads and caliper hardware for wear before reassembly. For best results, follow the vehicle manufacturer’s brake service procedure and bed the pads according to the pad maker’s instructions.

Quality Assurance

Brembo PRIME parts are positioned as premium replacement components with OE-style engineering and corrosion protection. Part number 09.D277.11 is manufactured to match the listed fitment and dimensional requirements for the specified applications.
