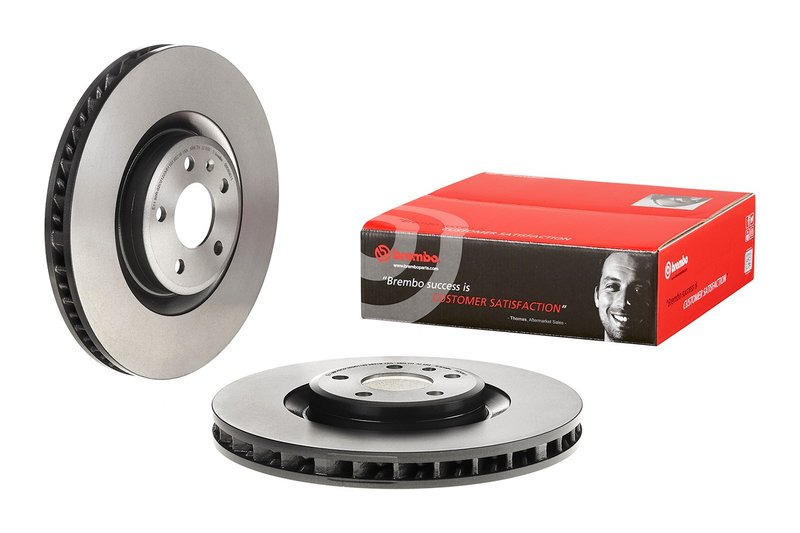

Brembo 09.D936.11 Disc Brake Rotor - Front or Front Left
| Brand | Brembo 09.D936.11 |
|---|---|
| Position | Front Left and Front |
| Material | High carbon cast iron |
| Discard Thickness | 32 |
| Nominal Thickness | 34 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.05 |
| Overall Height | 52 |
| Outside Diameter | 13.78 |
| Outside Diameter | 350 |
| Grade Type | Premium |
| ABS Tone Ring Included | No |
| Surface Type | Slotted |
| Weight | 12.4 |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.68 |
| Center Hole Diameter | 68 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PRIME UV Coated |
| Fits | Porsche · 7 vehicles |
OE-equivalent replacement. Premium rotor built for direct service replacement with Brembo engineering.
Slotted surface. Helps maintain consistent pad contact during repeated braking.
Rust-resistant coating. Helps protect the rotor surface before and after installation.
Cross-references Raybestos Brakes 982323, 95B 615 301 and 95B 615 301 F for the same application. See all 13.
OE-Equivalent Brake Rotor for Porsche Macan
This Brembo disc brake rotor is built for Porsche Macan front applications with fitment that includes front left and front positions by model year. The 09.D936.11 combines a high-carbon cast iron build with a slotted, vented design and a rust-resistant coating for a clean, service-ready replacement.
Key Features
- High carbon cast iron construction for stable braking performance.
- Slotted surface helps maintain consistent pad contact.
- Vented rotor design promotes heat dissipation.
- Rust-resistant coating helps protect the rotor surface.
- Premium OE-equivalent replacement from Brembo.
Detailed Description
The Brembo 09.D936.11 is a premium UV coated OE equivalent rotor engineered for front brake service on the Porsche Macan. It measures 350 mm in outside diameter, 34 mm nominal thickness, and 32 mm discard thickness, with a 68 mm center hole and five lug holes. The full cast construction and high-carbon material support dependable braking characteristics, while the slotted face and vented layout help manage heat and pad interaction during repeated stops. This part cross-references Raybestos Brakes 982323 for the same application.
For buyers searching for a Porsche Macan front brake rotor, this part matches the listed fitment and specifications for direct replacement service. The 09.D936.11 is also a strong fit for shoppers comparing Brembo rotor options by part number.
What It Is Used For
- Replacing a worn front brake rotor on a Porsche Macan.
- Addressing rotor scoring, grooves, or uneven braking feel.
- Restoring proper pad-to-rotor contact on service intervals.
- Reducing surface rust buildup with a coated rotor finish.
- Supporting heat management in vented brake applications.
Installation Notes and Tips
Fits 2024 Porsche Macan, front left. Fits 2023 Porsche Macan, front. Fits 2022 Porsche Macan, front left. Fits 2016-2018 Porsche Macan, front left. Fits 2015 Porsche Macan, front left. Verify rotor diameter, thickness, and center bore before installation. The 2016-2018 Porsche Macan fitment excludes vehicles with ceramic composite brakes.
Quality Assurance
Brembo identifies this rotor as a premium OE-equivalent replacement with UV coating and corrosion protection features. Part number 09.D936.11 is built to the listed dimensional and construction specifications for service replacement use.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Porsche | Macan | — | Front Left | PRIME UV Coated |
| 2023 | Porsche | Macan | T | Front | PRIME UV Coated |
| 2022 | Porsche | Macan | — | Front Left | PRIME UV Coated |
| 2018 | Porsche | Macan | S | Front Left | Excludes compatibility with Ceramic Composite Brakes.; Premium UV Coated OE Equivalent Rotor |
| 2017 | Porsche | Macan | S | Front Left | Excludes compatibility with Ceramic Composite Brakes.; Premium UV Coated OE Equivalent Rotor |
| 2016 | Porsche | Macan | S | Front Left | Excludes compatibility with Ceramic Composite Brakes.; Premium UV Coated OE Equivalent Rotor |
| 2015 | Porsche | Macan | S | Front Left | PRIME |
| No rows match your filter. | |||||
