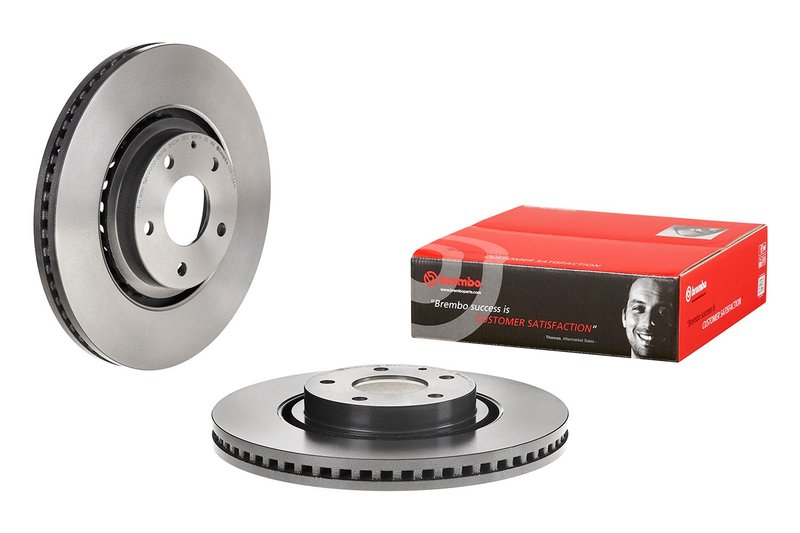

Brembo 09.E034.11 Disc Brake Rotor - Front
| Brand | Brembo 09.E034.11 |
|---|---|
| Position | Front |
| Material | Gray cast iron |
| Discard Thickness | 26 |
| Nominal Thickness | 28 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.02 |
| Overall Height | 51.5 |
| Outside Diameter | 12.60 |
| Outside Diameter | 320 |
| Grade Type | Premium |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Weight | 10.1 |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.68 |
| Center Hole Diameter | 68 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PRIME UV Coated |
| Fits | Mazda · 18 vehicles |
Vented design. Helps promote airflow for more consistent braking performance.
Rust-resistant coating. Helps protect the rotor surface from corrosion.
Full cast construction. Gray cast iron and a smooth finish for dependable braking.
Cross-references Raybestos Brakes 982130FZN, Raybestos Brakes 982130R and 77116DG for the same application. See all 9.
Brembo PRIME Front Brake Rotor for Mazda
The Brembo PRIME 09.E034.11 is a front disc brake rotor built for Mazda CX-5, Mazda CX-9, and Mazda 6 applications that call for a vented, full cast rotor with a smooth braking surface. It uses gray cast iron construction and a rust resistant coating to support consistent braking performance and cleaner rotor appearance.
Key Features
- Part number 09.E034.11 from Brembo PRIME
- Front disc brake rotor for Mazda CX-5, CX-9, and Mazda 6
- Vented rotor design with full cast construction
- Gray cast iron material for stable braking characteristics
- Rust resistant coating for added surface protection
- Smooth surface type for even pad contact
- Outside diameter: 320 mm (12.60 in)
- Nominal thickness: 28 mm; discard thickness: 26 mm
- Overall height: 51.5 mm (2.02 in)
- 5-lug design with 68 mm center hole diameter
Product Details
Brembo PRIME 09.E034.11 is engineered as a premium front brake rotor for 2024-2025 Mazda CX-5, 2019-2023 Mazda CX-5, 2016-2023 Mazda CX-9, and 2018-2020 Mazda 6. The vented rotor layout helps manage heat during repeated stops, while the smooth braking surface supports even pad contact. Brembo’s PRIME line focuses on OE-style replacement parts with attention to fit, finish, and corrosion protection, making this rotor a practical choice for Mazda CX-5 front brake rotor replacement, Mazda CX-9 front rotor service, or Mazda 6 front brake maintenance. This part cross-references Raybestos Brakes (e.g., 982130FZN, 982130R) for the same application.
What It Helps Address
- Brake pulsation caused by worn or uneven rotor surfaces
- Reduced braking consistency from rotor wear beyond discard thickness
- Surface corrosion on exposed brake rotor faces
- Heat buildup during repeated front brake use
- Noise or vibration related to rotor condition
Installation Notes
Verify rotor diameter, center hole diameter, lug count, and thickness before installation. This rotor is a front application and uses a 5-lug pattern with a 68 mm center hole. Inspect pads, calipers, and hub surfaces during service, and confirm the rotor meets the vehicle’s required front brake specifications for your Mazda CX-5, Mazda CX-9, or Mazda 6.
Quality Assurance
Brembo PRIME parts are positioned as premium replacement components with OE-style fit and finish. The rust resistant coating and full cast construction support long-term serviceability in everyday braking conditions.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2025 | Mazda | CX-5 | 2.5 Turbo | Front | PRIME UV Coated |
| 2024 | Mazda | CX-5 | 2.5 Turbo | Front | PRIME UV Coated |
| 2023 | Mazda | CX-5 | 2.5 Turbo Signature | Front | PRIME |
| 2023 | Mazda | CX-9 | — | Front | PRIME |
| 2022 | Mazda | CX-5 | 2.5 Turbo Signature | Front | PRIME |
| 2022 | Mazda | CX-9 | — | Front | PRIME |
| 2021 | Mazda | CX-5 | — | Front | PRIME |
| 2021 | Mazda | CX-9 | — | Front | PRIME |
| 2020 | Mazda | 6 | Grand Touring Reserve | Front | PRIME |
| 2020 | Mazda | CX-5 | Grand Touring Reserve | Front | PRIME |
| 2020 | Mazda | CX-9 | — | Front | PRIME |
| 2019 | Mazda | 6 | Grand Touring Reserve | Front | PRIME |
| 2019 | Mazda | CX-5 | Grand Touring Reserve | Front | PRIME |
| 2019 | Mazda | CX-9 | Touring | Front | PRIME |
| 2018 | Mazda | 6 | Grand Touring Reserve | Front | PRIME |
| 2018 | Mazda | CX-9 | Touring | Front | PRIME |
| 2017 | Mazda | CX-9 | — | Front | PRIME |
| 2016 | Mazda | CX-9 | — | Front | PRIME |
