Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

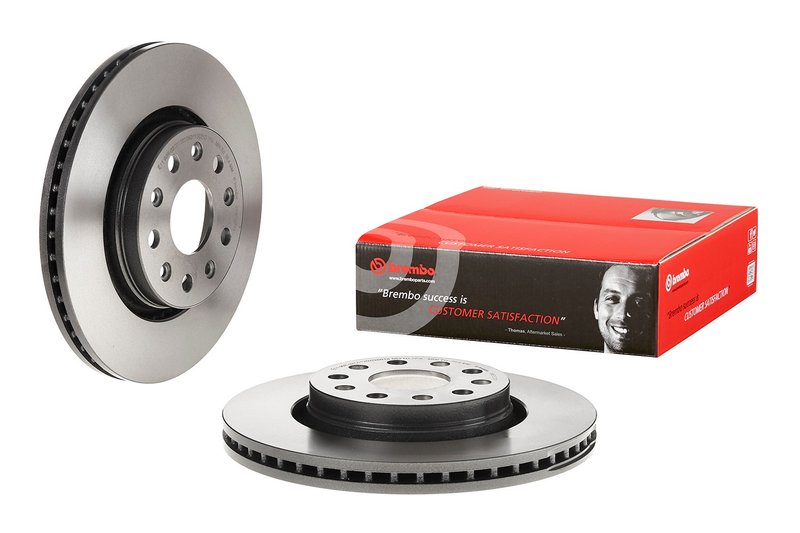

Brembo 09.E127.11 Disc Brake Rotor - Front
| Brand | Brembo 09.E127.11 |
|---|---|
| Position | Front |
| Material | Gray cast iron |
| Discard Thickness | 1.04 |
| Discard Thickness | 26.4 |
| Nominal Thickness | 28 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.20 |
| Overall Height | 56 |
| Outside Diameter | 12.99 |
| Outside Diameter | 330 |
| Grade Type | Premium |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Weight | 10.4 |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.83 |
| Center Hole Diameter | 72 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PRIME |
| Fits | Jeep · 10 vehicles |
OE-style replacement. Direct-fit brake rotor for service on select applications.
Vented full-cast design. Helps manage heat with a smooth braking surface.
Rust-resistant coating. Adds surface protection during storage and service.
Cross-references Raybestos Brakes 782319FZN, Raybestos Brakes 782319R and 6825 0085AA for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Brake Rotor Overview
This Brembo PRIME disc brake rotor is built for drivers who need a vented, full-cast replacement with a smooth braking surface and rust-resistant coating. It is engineered for direct fitment on select Jeep applications and carries part number 09.E127.11.
Key Features
- Gray cast iron construction with a full-cast design for consistent braking performance.
- Vented rotor design helps manage heat during repeated stops.
- Rust-resistant coating helps protect the rotor surface before and after installation.
- Smooth friction surface supports even pad contact.
- Premium-grade rotor with 330 mm outside diameter and 72 mm center hole diameter.
Detailed Description
Brembo PRIME 09.E127.11 is a vented disc brake rotor made from gray cast iron and finished with a rust-resistant coating. The rotor uses a smooth surface and premium full-cast construction, with a nominal thickness of 28 mm and a discard thickness of 26.4 mm. Its 5-lug pattern and 330 mm outside diameter make it a fitment-specific replacement for brake service on Jeep Gladiator and Jeep Wrangler front brake systems. This part cross-references Raybestos Brakes (e.g., 782319FZN, 782319R) for the same application.
What It Is Used For
- Replacing a worn or below-spec front brake rotor.
- Addressing brake pulsation caused by rotor wear or surface irregularity.
- Restoring braking consistency after heat-related rotor damage.
- Correcting corrosion on the braking surface or rotor hat area.
- Supporting proper pad contact when the original rotor is no longer serviceable.
Installation Notes and Tips
Fits 2020-2023 Jeep Gladiator, front. Fits 2018-2023 Jeep Wrangler, front. Verify rotor dimensions, lug count, and brake package details before installation. Inspect pads, caliper hardware, and hub condition during brake service to help ensure even rotor contact and proper braking feel.
Quality Assurance
Brembo PRIME parts are positioned as premium replacement components within Brembo’s brake rotor lineup. Part number 09.E127.11 is built to match the listed application requirements for a direct replacement service part.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Jeep | Gladiator | Front | PRIME |
| 2023 | Jeep | Wrangler | Front | PRIME |
| 2022 | Jeep | Gladiator | Front | PRIME |
| 2022 | Jeep | Wrangler | Front | PRIME |
| 2021 | Jeep | Gladiator | Front | PRIME |
| 2021 | Jeep | Wrangler | Front | PRIME |
| 2020 | Jeep | Gladiator | Front | PRIME |
| 2020 | Jeep | Wrangler | Front | PRIME |
| 2019 | Jeep | Wrangler | Front | PRIME |
| 2018 | Jeep | Wrangler | Front | PRIME |
| No rows match your filter. | ||||
