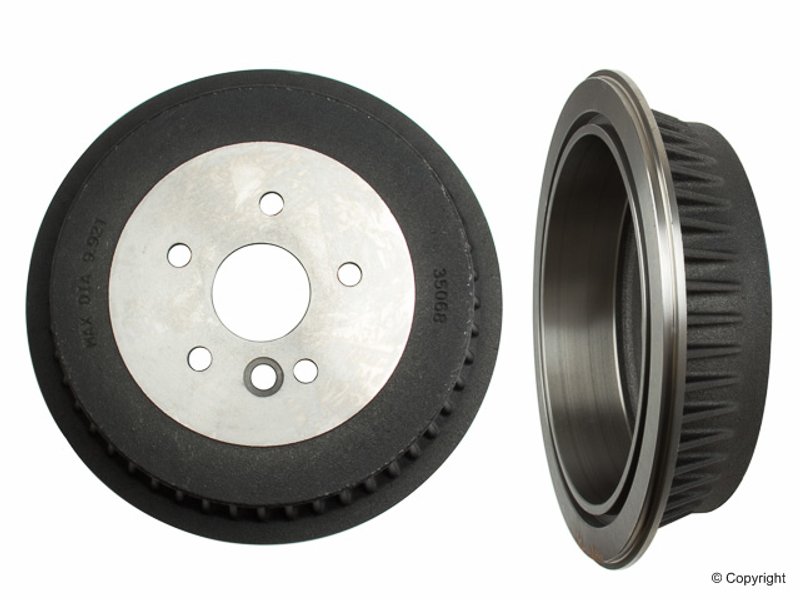

Brembo 14.B465.10 Brake Drum - Rear

Brembo Rear Brake Drum for Toyota Sienna

The Brembo 14.B465.10 is a premium OE equivalent brake drum for the rear of select Toyota Sienna models. Built from grey cast iron with a 250 mm outside diameter, 62.1 mm centering diameter, and 78.4 mm height, it follows the dimensional requirements needed for a proper drum brake service fit.

Brembo developed this replacement to meet or exceed OEM specifications, giving Toyota Sienna owners a direct-fit rear brake drum option for 1998-2003 applications. The 5-hole design supports the original rear brake configuration while maintaining the fit and geometry expected from an OE-style replacement.

Key Features

• OE equivalent rear brake drum for Toyota Sienna
• Part number: 14.B465.10
• Grey cast iron construction for stable braking performance
• 250.0000 mm outside diameter
• 62.1 mm centering diameter
• 78.4 mm height
• 5-hole mounting pattern
• Fits 1998-2003 Toyota Sienna, rear

Product Details

This Brembo brake drum is built for rear drum brake service on the 1998-2003 Toyota Sienna. The OE-equivalent design focuses on dimensional accuracy and material consistency, which helps maintain proper shoe contact, drum fitment, and braking feel. The 14.B465.10 part number is also useful when cross-checking replacement options for the same application.

This part cross-references Beck/Arnley 083-2754 for the same application.

What It Helps Address

• Rear brake drum wear from normal mileage and heat cycling
• Brake pulsation or uneven rear braking caused by drum surface deterioration
• Noise from worn or out-of-round rear drums
• Loss of braking consistency in drum-equipped rear brake systems
• Fitment issues when replacing a damaged rear drum on a Toyota Sienna

Installation Notes

Verify rear drum dimensions, hole count, and centering diameter before installation. Inspect brake shoes, wheel cylinders, and related rear brake components for wear or contamination during service. For best results, confirm compatibility with 1998-2003 Toyota Sienna rear brake applications and compare the existing drum to part number 14.B465.10 before assembly.

Quality Assurance

Brembo positions this drum as a replacement that meets or exceeds OEM specifications. The OE-equivalent construction and cast iron material support consistent fit and serviceability for Toyota Sienna rear brake maintenance.
