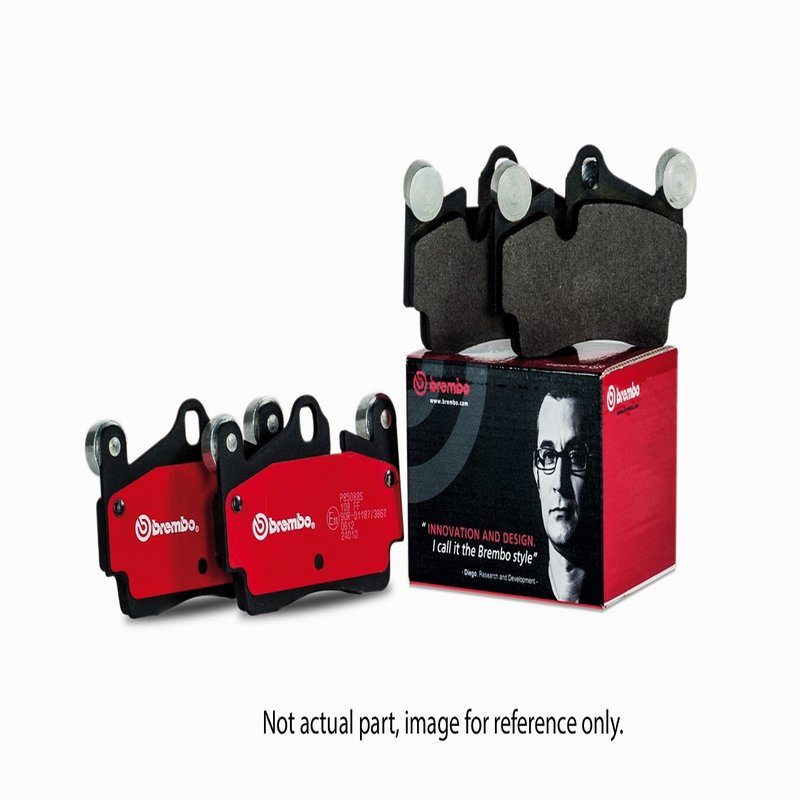

Brembo P49063N Disc Brake Pad Set - Rear
| Brand | Brembo P49063N |
|---|---|
| Position | Rear |
| Pad Wear Sensor Included | Yes |
| Friction Material Composition | Ceramic |
| Grade Type | Premium |
| Pad Shims Included | Yes |
| Brake Lubricant Included | Yes |
| FMSI Number | 9271-d2042 |
| Weight | 0.9 |
| Pad Wear Sensor Type | Mechanical |
| Chamfered Edges | No |
| Prepared For Pad Wear Sensor | Yes |
| Outer Pad Height | 44.00 |
| Inner Pad Height | 44.00 |
| Outer Pad Width | 104.00 |
| Inner Pad Width | 104.00 |
| Outer Pad Overall Thickness | 16.00 |
| Inner Pad Overall Thickness | 16.00 |
| Product line | PRIME Ceramic |
| Fits | Mazda · 4 vehicles |
Ceramic friction material. Provides a premium-grade brake pad formulation for service replacement.
Wear sensor included. Mechanical sensor setup is prepared for brake wear monitoring.
PRIME Ceramic line. Brembo replacement brake pads with application-specific engineering.
Cross-references Akebono ProACT ACT2042, Bosch BC2042 and Centric Parts 105.20420 for the same application. See all 25.
Overview
Brembo PRIME Ceramic disc brake pad set, part number P49063N, is built for rear brake service with ceramic friction material and premium-grade construction. It includes pad shims, a mechanical pad wear sensor, and brake lubricant for a more complete brake pad replacement on compatible Mazda applications.
Compatible with Mazda 3 and Mazda CX-3 rear brake applications, this Brembo brake pad set is engineered around the listed pad dimensions and sensor preparation for a direct-fit service approach. The P49063N part number is also cross-referenced to other aftermarket brake pad numbers for the same application.
Key Features
- Ceramic friction material for consistent braking characteristics.
- Premium-grade disc brake pad set from Brembo PRIME Ceramic.
- Pad shims included for reduced noise and improved pad support.
- Mechanical pad wear sensor included and prepared for sensor use.
- Brake lubricant included for brake service preparation.
- FMSI 9271-D2042 pad shape for application matching.
Product Details
The Brembo PRIME Ceramic line focuses on replacement brake pads with a ceramic friction formulation and application-specific fitment. Part number P49063N uses the 9271-D2042 pad shape, with matching inner and outer pad dimensions and 16.00 mm overall thickness. This makes it a practical choice for rear brake maintenance on the Mazda 3 and Mazda CX-3 when the original pad shape and sensor setup match the listed fitment.
This part cross-references Akebono ProACT ACT2042 and Bosch BC2042 for the same application.
Common Issues This Part Addresses
- Worn rear brake pads that reduce stopping performance.
- Brake noise caused by aged pad material or missing shims.
- Brake wear sensor service needs during pad replacement.
- Uneven pad thickness or reduced friction material remaining.
- Brake service requiring ceramic replacement pads with matched dimensions.
Installation Notes
Verify the rear pad shape, sensor style, and listed dimensions before installation. Inspect the rotor surface, caliper hardware, and sensor connection points during brake service. Follow the vehicle service procedure for pad bedding and brake lubricant application where specified.
Quality Assurance
Brembo supplies brake components with application-specific engineering and premium-grade materials. PRIME Ceramic is Brembo’s replacement brake pad line for drivers seeking ceramic friction construction and OE-style service fitment.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Mazda | CX-3 | Sport | Rear | PRIME Ceramic |
| 2019 | Mazda | CX-3 | Grand Touring | Rear | PRIME Ceramic |
| 2018 | Mazda | 3 | Grand Touring | Rear | PRIME Ceramic |
| 2017 | Mazda | 3 | Grand Touring | Rear | PRIME Ceramic |
| No rows match your filter. | |||||
