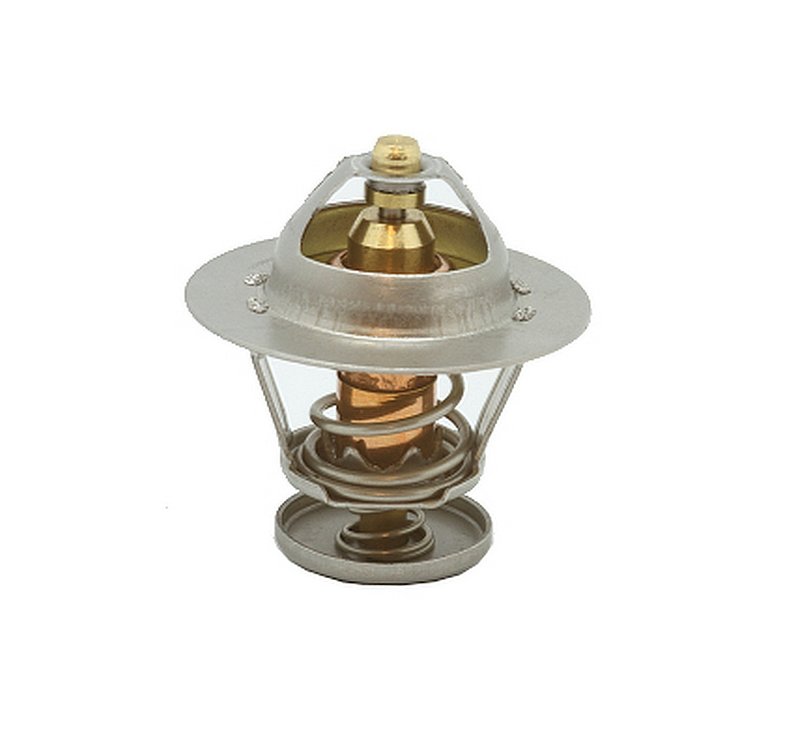

Calorstat TH5077.82 Engine Coolant Thermostat
OE Quality 60-Day Returns
Calorstat

Calorstat TH5077.82 Engine Coolant Thermostat

Brand Calorstat TH5077.82
Sealing Flange Outside Diameter 2.04
Height Between Flanges 1.33
Type Standard
Gasket Or Seal Included No
Start to Open Temperature 180.0
9813 1.1
9844 1
9852 1
9943 Yes
Fits Toyota · 4 vehicles

Standard thermostat. Provides reliable coolant temperature control for consistent engine operation.

180°F opening point. Opens at 180.0 degrees for precise temperature regulation.

Engine coolant thermostat for the cooling system.

Cross-references Motorad 215-180JV, Quality-Built 13978 and 2322-180 for the same application. See all 11.

$18.09Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $18.09
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Coolant Thermostat options

Engine Coolant Thermostat for Toyota 4Runner and Pickup

Calorstat TH5077.82 is a standard engine coolant thermostat set to begin opening at 180°F (82°C). It is built for direct replacement use in 1988-1989 Toyota 4Runner and 1988-1989 Toyota Pickup applications, helping maintain proper coolant flow and operating temperature.

Key Features

  • Standard engine coolant thermostat design
  • Start-to-open temperature: 180°F / 82°C
  • Sealing flange outside diameter: 2.04 in.
  • Height between flanges: 1.33 in.
  • Gasket or seal not included
  • Cross-references Motorad 215-180JV and Quality-Built 13978 for the same application

Product Details

Calorstat TH5077.82 is an engine coolant thermostat for Toyota cooling system service, specified for 1988-1989 Toyota 4Runner and 1988-1989 Toyota Pickup models. The 180°F opening temperature supports factory-style temperature control, while the listed flange dimensions help confirm housing fitment during replacement. This part number, TH5077.82, also appears in interchange listings for related aftermarket references.

Common Issues This Part Can Address

  • Engine running cooler or warmer than expected
  • Delayed coolant circulation after cold start
  • Temperature fluctuation during normal driving
  • Cooling system service on a Toyota 4Runner or Toyota Pickup
  • Replacement of a worn thermostat during thermostat housing maintenance

Installation Notes and Tips

Verify the thermostat dimensions and opening temperature before installation. Because no gasket or seal is included, confirm the correct sealing component is on hand for the repair. Inspect the thermostat housing, coolant condition, and mating surfaces before reassembly to support a proper seal and stable coolant control.

Quality Assurance

Calorstat TH5077.82 is a standard replacement thermostat built to match the specified application and temperature rating for Toyota cooling system service. The part number TH5077.82 and its interchange references help confirm selection for the listed 1988-1989 Toyota 4Runner and Toyota Pickup applications.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
1989Toyota4Runner3.0LV6Opening Temp: 82 C / 180 F
1989ToyotaPickup3.0LV6Opening Temp: 82 C / 180 F
1988Toyota4Runner3.0LV6Opening Temp: 82 C / 180 F
1988ToyotaPickup3.0LV6Opening Temp: 82 C / 180 F
Directly replaces or cross-references 11 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Motorad — 215-180JVQuality-Built — 139782322-1807215-180JV163418778800090048330070009004833019000900483302600090048330280009091603028000TH5077.82J
