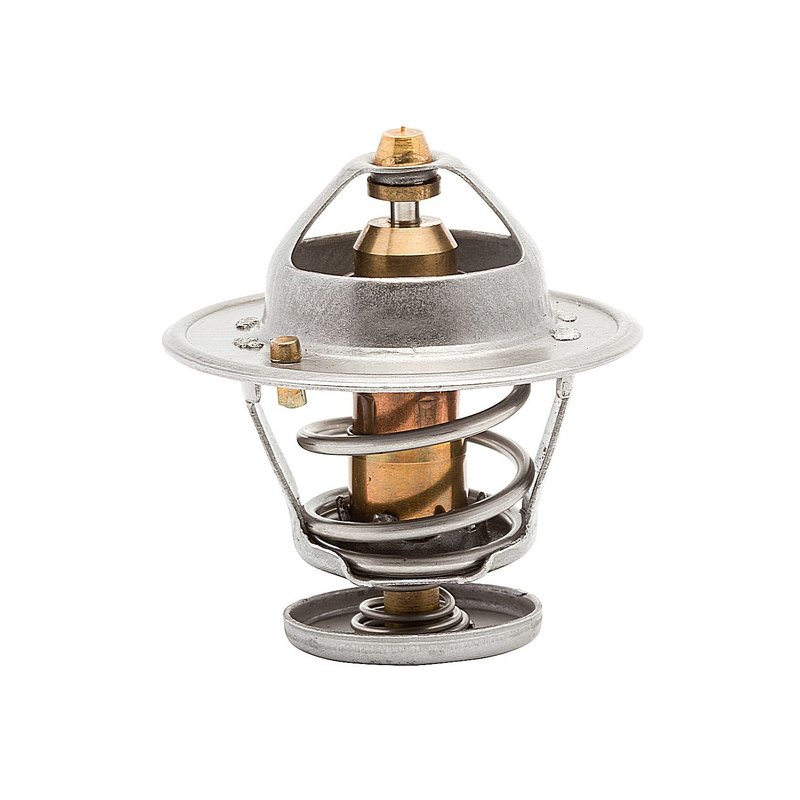

Calorstat TH6267.88 Engine Coolant Thermostat
| Brand | Calorstat TH6267.88 |
|---|---|
| Sealing Flange Outside Diameter | 2.04 |
| Height Between Flanges | 1.31 |
| Design | Off-set valve seat |
| Type | Standard |
| Gasket Or Seal Included | No |
| Start to Open Temperature | 190.0 |
| 9813 | 1.1 |
| 9844 | 1 |
| 9852 | 1 |
| 9943 | Yes |
| Fits | Honda · 13 vehicles |
Standard thermostat. Off-set valve seat design for consistent coolant flow control.
190°F opening temperature. Helps regulate engine coolant at the specified threshold.
Thermostat and housing category part for cooling system service.
Cross-references Bosch 13879, Four Seasons 33569 and Gates 33569S for the same application. See all 17.
Engine Coolant Thermostat for Honda Applications
Calorstat TH6267.88 is a standard engine coolant thermostat built for precise coolant flow control in select Honda cooling systems. It opens at 190°F (88°C) and uses an off-set valve seat design to support stable engine temperature regulation in Honda Civic and Honda Insight applications.
- Engine coolant thermostat for Belts and Cooling > Thermostat and Housing
- Standard design with off-set valve seat
- Start-to-open temperature: 190°F / 88°C
- Sealing flange outside diameter: 2.04 in.
- Height between flanges: 1.31 in.
- Gasket or seal not included
- Part number: TH6267.88
Fitment Details
- Fits 2006-2011 Honda Civic, N/A. Notes: Opening Temp: 88 C / 190 F
- Fits 2000-2006 Honda Insight, N/A. Notes: Opening Temp: 88 C / 190 F
This thermostat cross-references Stant 45879 for the same application.
How This Thermostat Is Used
- Restores proper coolant temperature regulation in Honda Civic and Honda Insight cooling systems
- Addresses overheating caused by a thermostat that sticks closed
- Addresses slow warm-up from a thermostat that sticks open
- Helps correct temperature fluctuation and unstable gauge readings
- Supports consistent engine operating temperature for daily driving
Installation Notes and Tips
Verify housing dimensions and thermostat orientation before installation. Because a gasket or seal is not included, reuse is not recommended unless the existing seal is serviceable and the housing design allows it. Confirm the 190°F opening specification matches the vehicle application before assembly.
Quality Assurance
Calorstat thermostats are built to meet application-specific cooling requirements with the correct opening temperature and dimensional fit for listed Honda models. Part number TH6267.88 is specified for direct replacement use in the confirmed applications above.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2011 | Honda | Civic | 1.3L | L4 | Opening Temp: 88 C / 190 F |
| 2010 | Honda | Civic | 1.3L | L4 | Opening Temp: 88 C / 190 F |
| 2009 | Honda | Civic | 1.3L | L4 | Opening Temp: 88 C / 190 F |
| 2008 | Honda | Civic | 1.3L | L4 | Opening Temp: 88 C / 190 F |
| 2007 | Honda | Civic | 1.3L | L4 | Opening Temp: 88 C / 190 F |
| 2006 | Honda | Civic | 1.3L | L4 | Opening Temp: 88 C / 190 F |
| 2006 | Honda | Insight | 1.0L | L3 | Opening Temp: 88 C / 190 F |
| 2005 | Honda | Insight | 1.0L | L3 | Opening Temp: 88 C / 190 F |
| 2004 | Honda | Insight | 1.0L | L3 | Opening Temp: 88 C / 190 F |
| 2003 | Honda | Insight | 1.0L | L3 | Opening Temp: 88 C / 190 F |
| 2002 | Honda | Insight | 1.0L | L3 | Opening Temp: 88 C / 190 F |
| 2001 | Honda | Insight | 1.0L | L3 | Opening Temp: 88 C / 190 F |
| 2000 | Honda | Insight | 1.0L | L3 | Opening Temp: 88 C / 190 F |
