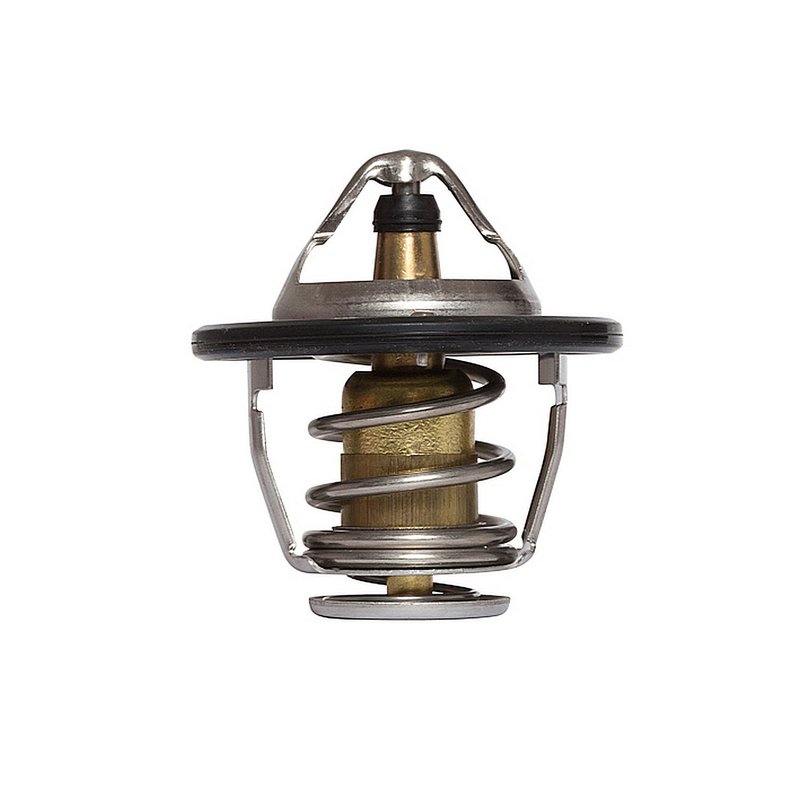

Calorstat TH6520.82J Engine Coolant Thermostat
OE Quality 60-Day Returns
Calorstat

Calorstat TH6520.82J Engine Coolant Thermostat

Brand Calorstat TH6520.82J
Sealing Flange Outside Diameter 2.36
Height Between Flanges 1.61
Type Standard
Gasket Or Seal Included Yes
Jiggle Pin Weep Hole Yes
Seal Type Gasket
Start to Open Temperature 180.0
Seal Material Rubber
9813 1.18
9841 1
9844 1
9852 1
9943 Yes
By-Pass Valve Diameter 30.0
Height, By-Pass Side 41.0
Valve-Seat Diameter 60.0
With Rubber valve
Fits Hyundai and Kia · 60 vehicles

Standard thermostat. Direct replacement style for straightforward cooling system service.

Gasket included. Comes with a rubber seal for a secure, leak-resistant fit.

Jiggle pin weep hole. Helps vent trapped air for smoother coolant flow.

Cross-references Carlson 15188, Dorman - HELP 34228 and Dorman - OE Solutions 635-180 for the same application. See all 18.

$22.40Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $22.40
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Coolant Thermostat options

Engine Coolant Thermostat for Hyundai and Kia

Calorstat TH6520.82J is an engine coolant thermostat for select Hyundai and Kia applications that call for an 82 C / 180 F opening temperature. It helps regulate coolant flow so the engine reaches and maintains operating temperature in normal driving conditions.

  • Standard engine coolant thermostat
  • Start to open temperature: 180 F / 82 C
  • Gasket included for sealing at installation
  • Jiggle pin weep hole for air bleeding
  • Rubber seal material and rubber valve construction
  • By-pass valve diameter: 30.0 mm
  • Valve-seat diameter: 60.0 mm
  • Sealing flange outside diameter: 2.36 in
  • Height between flanges: 1.61 in

Fitment Coverage

Compatible with select Hyundai Genesis Coupe, Hyundai Genesis, Hyundai Santa Fe, Hyundai Veracruz, Hyundai Azera, Hyundai Entourage, Hyundai Sonata, Kia Sedona, Kia Sorento, Kia Borrego, and Kia Amanti applications from 2006-2016. Fits 2010-2016 Hyundai Genesis Coupe, N/A; Fits 2009-2014 Hyundai Genesis, N/A; Fits 2014 Kia Sedona, N/A; Fits 2006-2012 Kia Sedona, N/A; Fits 2011-2013 Kia Sorento, N/A; Fits 2007-2009 Kia Sorento, N/A; Fits 2010-2012 Hyundai Santa Fe, N/A; Fits 2007-2012 Hyundai Veracruz, N/A; Fits 2006-2011 Hyundai Azera, N/A; Fits 2009-2011 Kia Borrego, N/A; Fits 2007-2010 Hyundai Entourage, N/A; Fits 2006-2010 Hyundai Sonata, N/A; Fits 2007-2009 Hyundai Santa Fe, N/A; Fits 2007-2009 Kia Amanti, N/A.

What This Thermostat Helps Address

  • Engine running too cool or taking too long to warm up
  • Temperature fluctuations during stop-and-go driving
  • Coolant flow control issues tied to a sticking thermostat
  • Overheating concerns caused by restricted thermostat operation
  • Service replacement for aging Hyundai Sonata or Kia Sorento cooling systems

Installation Notes and Tips

Verify the 82 C / 180 F opening temperature and compare the flange dimensions, bypass valve diameter, and valve-seat diameter before installation. Replace the thermostat with the included gasket, and use the jiggle pin weep hole to help purge trapped air during refill. This part cross-references Dorman - OE Solutions 635-180 and Gates 24555 for the same application.

Quality Assurance

Calorstat TH6520.82J is built as a standard replacement thermostat with a gasket seal and rubber valve construction for cooling-system service on the listed Hyundai and Kia vehicles. The part number TH6520.82J is also referenced in OE-style interchange listings for application matching.

Related reading

This part fits 60 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2016HyundaiGenesis Coupe3.8LV6Opening Temp: 82 C / 180 F
2015HyundaiGenesis Coupe3.8LV6Opening Temp: 82 C / 180 F
2014HyundaiGenesis3.8LV6Opening Temp: 82 C / 180 F
2014HyundaiGenesis Coupe3.8LV6Opening Temp: 82 C / 180 F
2014KiaSedona3.5LV6Opening Temp: 82 C / 180 F
2013HyundaiGenesis3.8LV6Opening Temp: 82 C / 180 F
2013HyundaiGenesis Coupe3.8LV6Opening Temp: 82 C / 180 F
2013KiaSorento3.5LV6Opening Temp: 82 C / 180 F
2012HyundaiGenesis3.8LV6Opening Temp: 82 C / 180 F
2012HyundaiGenesis Coupe3.8LV6Opening Temp: 82 C / 180 F
2012HyundaiSanta Fe3.5LV6Opening Temp: 82 C / 180 F
2012HyundaiVeracruz3.8LV6Opening Temp: 82 C / 180 F
2012KiaSedona3.5LV6Opening Temp: 82 C / 180 F
2012KiaSorento3.5LV6Opening Temp: 82 C / 180 F
2011HyundaiAzera3.8LV6Opening Temp: 82 C / 180 F
2011HyundaiGenesis3.8LV6Opening Temp: 82 C / 180 F
2011HyundaiGenesis Coupe3.8LV6Opening Temp: 82 C / 180 F
2011HyundaiSanta Fe3.5LV6Opening Temp: 82 C / 180 F
2011HyundaiVeracruz3.8LV6Opening Temp: 82 C / 180 F
2011KiaBorrego3.8LV6Opening Temp: 82 C / 180 F
2011KiaSedona3.5LV6Opening Temp: 82 C / 180 F
2011KiaSorento3.5LV6Opening Temp: 82 C / 180 F
2010HyundaiAzera3.8LV6Opening Temp: 82 C / 180 F
2010HyundaiEntourage3.8LV6Opening Temp: 82 C / 180 F
2010HyundaiGenesis3.8LV6Opening Temp: 82 C / 180 F
2010HyundaiGenesis Coupe3.8LV6Opening Temp: 82 C / 180 F
2010HyundaiSanta Fe3.5LV6Opening Temp: 82 C / 180 F
2010HyundaiSonata3.3LV6Opening Temp: 82 C / 180 F
2010HyundaiVeracruz3.8LV6Opening Temp: 82 C / 180 F
2010KiaBorrego3.8LV6Opening Temp: 82 C / 180 F
2010KiaSedona3.8LV6Opening Temp: 82 C / 180 F
2009HyundaiAzera3.8LV6Opening Temp: 82 C / 180 F
2009HyundaiEntourage3.8LV6Opening Temp: 82 C / 180 F
2009HyundaiGenesis3.8LV6Opening Temp: 82 C / 180 F
2009HyundaiSanta Fe3.3LV6OEM Recommended
2009HyundaiSonata3.3LV6Opening Temp: 82 C / 180 F
2009HyundaiVeracruz3.8LV6Opening Temp: 82 C / 180 F
2009KiaAmanti3.8LV6Opening Temp: 82 C / 180 F
2009KiaBorrego3.8LV6Opening Temp: 82 C / 180 F
2009KiaSedona3.8LV6Opening Temp: 82 C / 180 F
2009KiaSorento3.8LV6Opening Temp: 82 C / 180 F
2008HyundaiAzera3.8LV6Opening Temp: 82 C / 180 F
2008HyundaiEntourage3.8LV6Opening Temp: 82 C / 180 F
2008HyundaiSanta Fe3.3LV6OEM Recommended
2008HyundaiSonata3.3LV6Opening Temp: 82 C / 180 F
2008HyundaiVeracruz3.8LV6Opening Temp: 82 C / 180 F
2008KiaAmanti3.8LV6Opening Temp: 82 C / 180 F
2008KiaSedona3.8LV6Opening Temp: 82 C / 180 F
2008KiaSorento3.8LV6Opening Temp: 82 C / 180 F
2007HyundaiAzera3.8LV6Opening Temp: 82 C / 180 F
2007HyundaiEntourage3.8LV6Opening Temp: 82 C / 180 F
2007HyundaiSanta Fe3.3LV6OEM Recommended
2007HyundaiSonata3.3LV6Opening Temp: 82 C / 180 F
2007HyundaiVeracruz3.8LV6Opening Temp: 82 C / 180 F
2007KiaAmanti3.8LV6Opening Temp: 82 C / 180 F
2007KiaSedona3.8LV6Opening Temp: 82 C / 180 F
2007KiaSorento3.8LV6Opening Temp: 82 C / 180 F
2006HyundaiAzera3.8LV6Opening Temp: 82 C / 180 F
2006HyundaiSonata3.3LV6Opening Temp: 82 C / 180 F
2006KiaSedona3.8LV6Opening Temp: 82 C / 180 F
Directly replaces or cross-references 18 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Carlson — 15188Dorman - HELP — 34228Dorman - OE Solutions — 635-180Gates — 2455525500-3C10025500-3C1304618890916-0309790916-03118255003C100255003C130410181.82D82051190916030979091603118TH34882TH34882G1TX 177 82D
