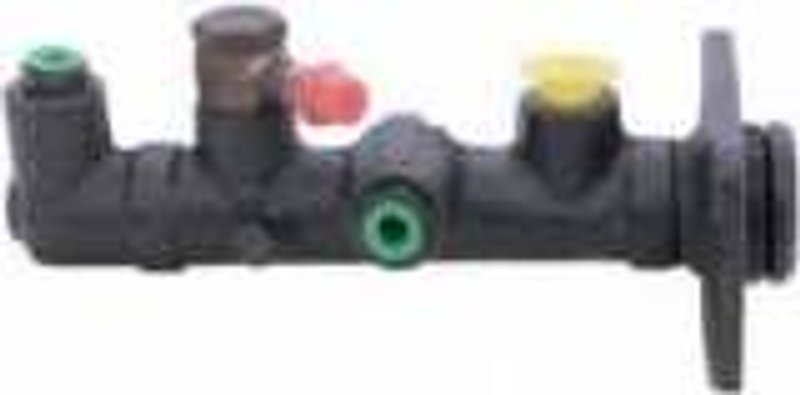

Cardone 11-2017 Brake Master Cylinder

Brake Master Cylinder for Toyota Pickup and 4Runner

Cardone 11-2017 is a remanufactured brake master cylinder built to match original equipment fit and performance. It is engineered for Toyota Pickup and Toyota 4Runner applications from 1979-1989, with a remote reservoir setup and 2-port configuration for the listed vehicles.

Cardone’s Brake Master Cylinder line focuses on OE-style replacement parts that are remanufactured, tested, and finished for dependable brake system operation. This part number, 11-2017, follows that approach with new seals and cups, a protective coating on cast-iron units, and computer testing for fit and function.

• Remanufactured OE-style brake master cylinder
• Fits 1979-1988 Toyota Pickup, N/A
• Fits 1984-1989 Toyota 4Runner, N/A
• Fits 1984 Toyota Pickup, N/A, except 3/4 ton
• 0.812 in. bore diameter
• Cast iron construction with gray finish
• 2 ports with M16 x 1.5 primary and secondary port sizes
• Remote reservoir design; reservoir not included
• Remote pipe included; material may be plastic or brass
• Computer tested for fit and function

This brake master cylinder is used to restore hydraulic pressure in the brake system on Toyota Pickup and 4Runner models when the original unit is worn, leaking, or bypassing. Part number 11-2017 is a direct-fit remanufactured replacement for the listed applications and is built to OE specifications for bore size, port layout, and mounting pattern.

• Brake pedal sinks or feels low due to internal bypass
• External fluid leakage from the master cylinder body or rear seal area
• Soft or spongy pedal caused by hydraulic pressure loss
• Uneven brake response after master cylinder wear or contamination
• Brake system service on Toyota Pickup and Toyota 4Runner models with remote reservoir plumbing

Installation notes: verify the vehicle’s brake fluid specification before filling, and use fresh fluid from a sealed container. Bench bleed the master cylinder before installation, and follow the correct bleeding procedure for the brake system. For step-bore style systems, depress the piston slowly and allow time between strokes rather than pumping rapidly. Inspect the booster push rod seal, brake hoses, calipers, and wheel cylinders if brake issues remain after replacement.

Quality assurance: Cardone remanufactures this master cylinder with new OE-quality seals and cups, micro-finished bores to reduce pitting-related failure, and vacuum-tested plastic reservoirs where applicable. The cast-iron housing receives a protective coating to help resist rust, and each unit is computer tested before release. This part cross-references A1 Cardone 11-2017 for the same application.
