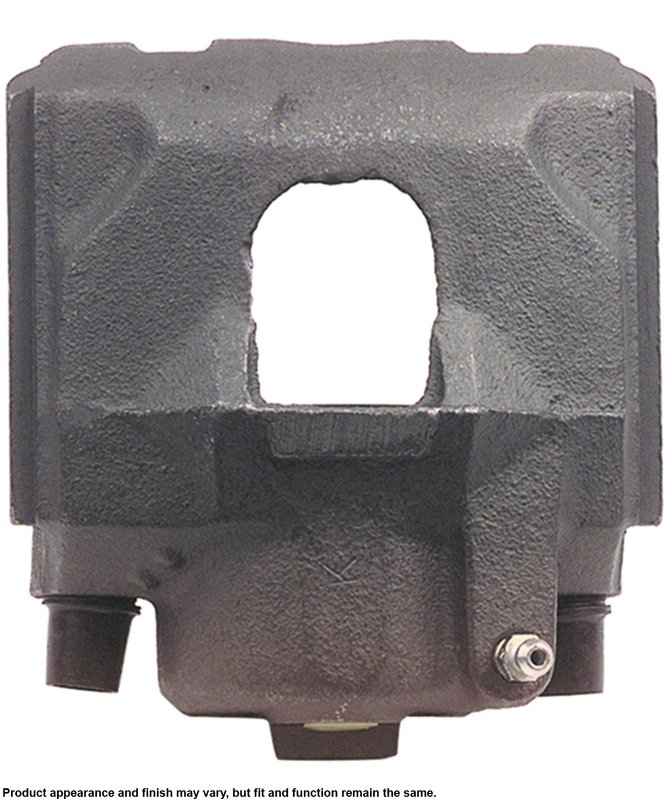

Cardone 18-4504 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper 18-4504

The Cardone Unloaded Caliper 18-4504 is a remanufactured disc brake caliper designed for reliable braking performance. Specifically engineered for Dodge and Plymouth minivans, including Caravan, Grand Caravan, Grand Voyager, and Voyager models, this caliper features a durable oil emulsion finish and a phenolic piston for effective heat resistance.

• Remanufactured disc brake caliper with oil emulsion finish
• Gray caliper color for corrosion resistance
• Includes caliper and hardware kit; mounting bolts not included
• Single phenolic piston with 2.356 inch (59.84 mm) diameter
• Compatible with Dodge Caravan, Grand Caravan, Grand Voyager, and Plymouth Voyager

Cardone Unloaded Caliper Product Line Details

The Cardone Unloaded Caliper line provides remanufactured brake calipers that come without brake pads installed, allowing for flexible installation with existing or aftermarket pads. This product line focuses on delivering reliable hydraulic brake components that meet or exceed original equipment specifications. The 18-4504 caliper maintains the integrity of the OE design, including the use of a phenolic piston to reduce heat transfer and improve brake system longevity.

Product Features and Specifications

This Cardone 18-4504 caliper is finished with an oil emulsion coating that helps protect against rust and corrosion, extending the service life of the brake component. The gray color finish is standard for this line, providing a clean and functional appearance. The caliper includes a single phenolic piston measuring 2.356 inches in diameter, which offers improved heat resistance compared to steel pistons. Installation hardware is included to facilitate mounting, though mounting bolts are not part of the package. This caliper is remanufactured to meet strict quality standards and is designed for use on specific Dodge and Plymouth minivan models.

Common Brake Issues Addressed by This Caliper

• Uneven braking or vehicle pulling to one side during stops
• Low brake pedal caused by air in the brake hydraulic system
• Brake squeal due to caliper or hardware wear
• Caliper piston sticking or seizing affecting brake performance
• Corrosion or damage to original caliper components

Installation Notes and Tips

When installing the Cardone 18-4504 caliper, use the included hardware kit for proper mounting. It is recommended to apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4, to maintain system integrity. Bleed the brake system thoroughly to remove any air that may cause a low brake pedal. Note that mounting bolts are not included and should be reused or replaced as needed.

Quality Assurance and Warranty

This remanufactured Cardone Unloaded Caliper 18-4504 undergoes rigorous testing to meet or exceed OEM standards. The phenolic piston material is selected for durability and heat resistance. Cardone provides a limited warranty on this caliper, covering defects in materials and workmanship under normal use. For specific warranty details, refer to Cardone’s official documentation.
