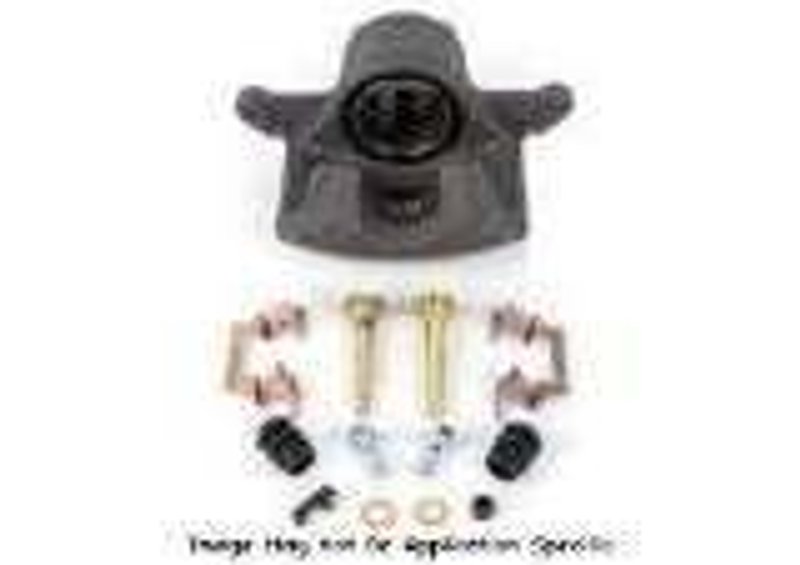

Cardone 18-4770S Disc Brake Caliper - Rear Right

Overview of Cardone Unloaded Caliper 18-4770S

The Cardone Unloaded Caliper 18-4770S is a remanufactured disc brake caliper designed specifically for Saturn models including L100, L200, L300, LS, LS1, LS2, LW1, LW2, LW200, and LW300. Engineered to meet OEM specifications, this caliper offers reliable braking performance with a durable oil emulsion finish in gray.

• Remanufactured disc brake caliper with steel pistons
• Includes caliper and hardware kit; mounting bolts not included
• Bleeder port size: M7x1.0; inlet port size: M10x1.0
• Caliper color: gray with oil emulsion finish for corrosion resistance
• Compatible with multiple Saturn models (L100, L200, L300, LS series, LW series)
• Two steel pistons with 1.375 inch (34.925 mm) diameter

Cardone Unloaded Caliper Product Line Details

The Unloaded Caliper line from Cardone provides remanufactured brake calipers that come without brake pads installed, allowing for flexible installation with aftermarket or OEM pads. This product line focuses on delivering reliable hydraulic brake components that meet or exceed original equipment standards. The 18-4770S model is part of this line, offering a quality remanufactured caliper with included hardware for ease of installation on compatible Saturn vehicles.

Product Description and Features

This Cardone 18-4770S disc brake caliper features two steel pistons measuring 1.375 inches in diameter, providing consistent braking force. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and extends service life. It includes a hardware kit for installation, though mounting bolts are not part of the package. The bleeder port and inlet port sizes are M7x1.0 and M10x1.0 respectively, matching OEM specifications for proper brake fluid flow and maintenance. This remanufactured caliper is designed to replace worn or damaged units on Saturn L100, L200, L300, LS, LS1, LS2, LW1, LW2, LW200, and LW300 models.

Common Applications and Issues Addressed

• Replacement for leaking or seized calipers causing brake fluid loss
• Fixes uneven brake pad wear due to caliper piston malfunction
• Resolves brake pull or vehicle pulling to one side during braking
• Addresses low brake pedal issues caused by caliper problems
• Eliminates brake squeal related to caliper hardware or piston issues

Installation Notes and Tips

• Use silicone grease on floating caliper mounting pins to ensure smooth operation
• Always use brake fluid recommended by the vehicle manufacturer (DOT 3 or DOT 4 as specified)
• Bleed the brake system thoroughly to remove air and prevent low pedal feel
• Verify bleeder and inlet port sizes (M7x1.0 and M10x1.0) for compatibility with existing brake lines
• New hardware is included, but mounting bolts must be reused or sourced separately

Quality Assurance and Warranty

This Cardone remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel pistons and oil emulsion finish contribute to durability and corrosion resistance. Installation hardware is included to facilitate proper mounting. While specific warranty details are not provided here, Cardone typically offers limited warranties on remanufactured brake components to ensure customer confidence and product reliability.
