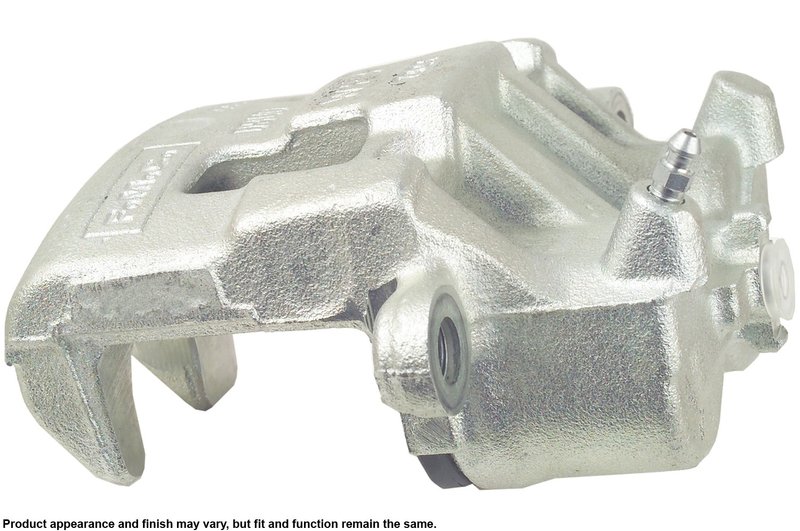

Cardone 18-5026 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper 18-5026

The Cardone Unloaded Caliper 18-5026 is a remanufactured disc brake caliper designed specifically for Ford Edge and Lincoln MKX models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with phenolic pistons
• Compatible with Ford Edge and Lincoln MKX vehicles
• Includes caliper and hardware kit; mounting bolts not included
• Features M8x1.5 bleeder port and M10x1.0 inlet port sizes
• Finished with oil emulsion coating for corrosion resistance
• Two 1.785 inch (45.339 mm) phenolic pistons for effective braking

About the Cardone Unloaded Caliper Product Line

The Cardone Unloaded Caliper line offers remanufactured brake calipers that come without brake pads, allowing for flexible installation with existing or aftermarket pads. This product line focuses on delivering reliable hydraulic brake components that meet or exceed OEM standards. The 18-5026 caliper is part of this line, providing a cost-effective solution for brake system repairs on select Ford and Lincoln models.

Detailed Product Description

This Cardone 18-5026 disc brake caliper features a phenolic piston material, which helps reduce heat transfer and corrosion inside the caliper. The caliper’s gray oil emulsion finish provides additional protection against rust and environmental wear. It includes a bleeder port sized M8x1.5 and an inlet port sized M10x1.0, compatible with the brake hydraulics of the Ford Edge and Lincoln MKX. The package contains the caliper and a hardware kit, though mounting bolts are not included. Designed with two pistons measuring 1.785 inches (45.339 mm) in diameter, this caliper ensures balanced and consistent braking force.

Common Applications and Issues Addressed

• Replacement for worn or leaking brake calipers on Ford Edge and Lincoln MKX
• Resolves symptoms of low brake pedal often caused by caliper malfunction
• Addresses uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper hardware or piston issues
• Restores proper brake fluid flow and pressure in the hydraulic system

Installation Notes and Tips

When installing the Cardone 18-5026 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be sourced separately if needed. Apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and prevent a low brake pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM performance standards. Cardone provides a warranty on this part, ensuring it is free from defects in materials and workmanship. Using this caliper helps maintain the safety and reliability of your Ford Edge or Lincoln MKX braking system.
