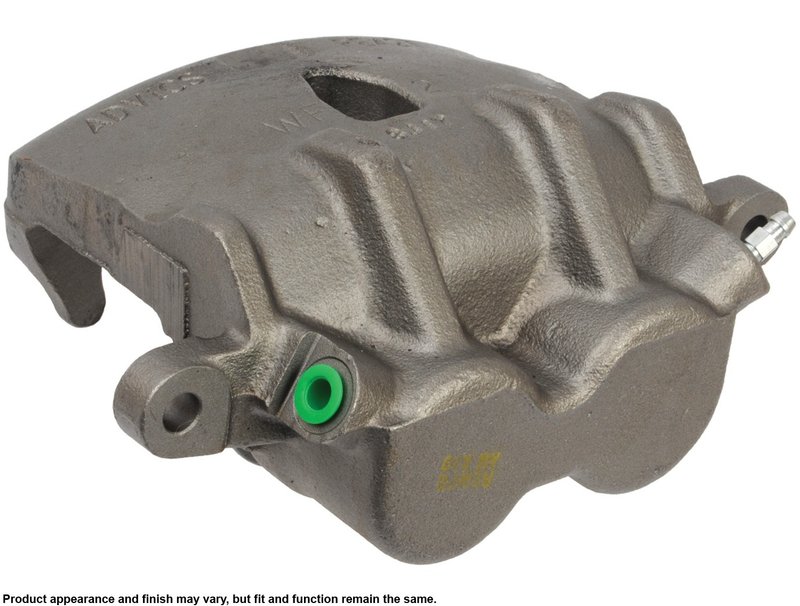

Cardone 18-5117 Disc Brake Caliper - Front Left or Front Right

Reliable Disc Brake Caliper for Cadillac CTS

The Cardone 18-5117 Unloaded Caliper is a remanufactured disc brake caliper designed specifically for Cadillac CTS models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures consistent braking performance and durability.

• Remanufactured disc brake caliper with steel pistons
• Includes caliper and hardware kit for installation
• Bleeder port size: M7x1.0 and inlet port size: M10x1.0
• Oil emulsion finish with gray color for corrosion resistance
• Compatible with Cadillac CTS vehicles
• Two 1.655 inch (42.037 mm) steel pistons for reliable braking force

About the Cardone Unloaded Caliper Product Line

The Cardone Unloaded Caliper line offers remanufactured brake calipers that come without brake pads, allowing for flexibility in pad selection. These calipers are rebuilt to meet strict quality standards and include necessary hardware kits for installation. The 18-5117 model maintains the original equipment specifications, including piston material and port sizes, ensuring proper fit and function for Cadillac CTS brake systems.

Product Details and Specifications

This Cardone 18-5117 caliper features a durable oil emulsion finish in gray, providing corrosion resistance suitable for various driving conditions. It is equipped with two steel pistons measuring 1.655 inches (42.037 mm) in diameter, which deliver consistent hydraulic pressure for effective braking. The bleeder port size is M7x1.0, and the inlet port size is M10x1.0, matching OEM requirements. Installation hardware is included, though mounting bolts are not provided. This remanufactured caliper does not include brake pads, allowing you to pair it with your preferred pad choice.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Cadillac CTS models
• Resolves issues with low brake pedal caused by air in the brake system
• Addresses uneven braking or vehicle pulling to one side during stops
• Eliminates brake squeal related to caliper malfunction
• Restores proper hydraulic pressure for improved brake response

Installation Notes and Tips

When installing the Cardone 18-5117 caliper, use the included hardware kit for secure mounting. Apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and prevent a low brake pedal. Note that mounting bolts are not included and should be reused or replaced as needed.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel piston construction and oil emulsion finish contribute to long-lasting performance. Cardone provides a limited warranty on this part, covering defects in materials and workmanship to ensure reliability for Cadillac CTS brake repairs.
