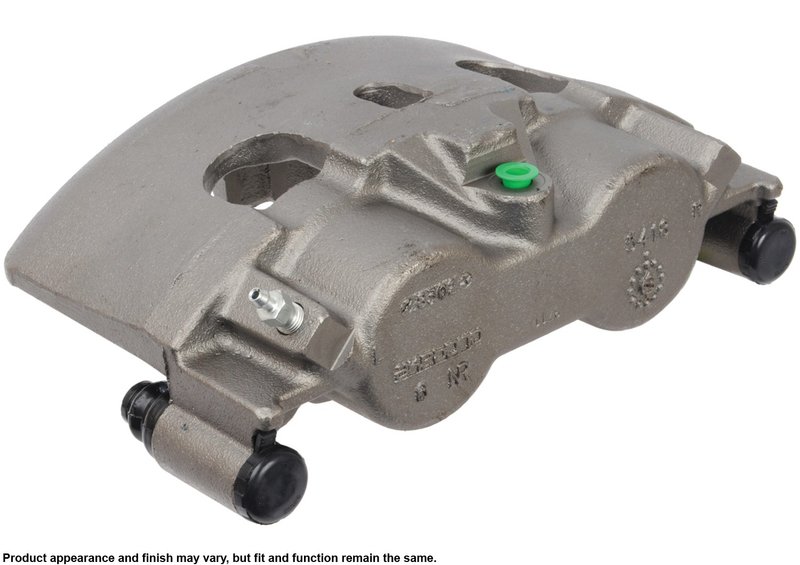

Cardone 18-5290 Disc Brake Caliper - Rear Left
Overview of Cardone Unloaded Caliper 18-5290
The Cardone Unloaded Caliper 18-5290 is a remanufactured disc brake caliper designed specifically for Chevrolet Express 3500 and GMC Savana 3500 models. Engineered to meet OEM specifications, this caliper ensures reliable braking performance and durability.
- Remanufactured disc brake caliper with phenolic pistons
- Includes caliper and hardware kit; mounting bolts not included
- Brake caliper finish: oil emulsion with gray color
- Bleeder port size: M10x1.0; inlet port size: M10x1.5
- Two 2.12-inch (53.848 mm) phenolic pistons for effective braking
About the Cardone Unloaded Caliper Product Line
The Cardone Unloaded Caliper line offers remanufactured brake calipers that come without brake pads installed, allowing for flexible installation with existing or aftermarket pads. This product line focuses on restoring brake caliper function with quality components such as phenolic pistons and includes necessary hardware kits for installation. The oil emulsion finish provides corrosion resistance suitable for heavy-duty applications like the Chevrolet Express 3500 and GMC Savana 3500.
Detailed Product Description
This Cardone 18-5290 disc brake caliper features two phenolic pistons measuring 2.12 inches in diameter, which help reduce heat transfer and improve brake system longevity. The caliper’s gray oil emulsion finish protects against corrosion and wear. It includes a hardware kit for installation, though mounting bolts are not part of the package. The bleeder port and inlet port sizes (M10x1.0 and M10x1.5 respectively) match OEM specifications for proper brake fluid flow and maintenance. Designed for use on Chevrolet Express 3500 and GMC Savana 3500 vehicles, this caliper supports consistent braking performance under demanding conditions.
Common Applications and Issues Addressed
- Replacement for worn or leaking brake calipers on Chevrolet Express 3500 and GMC Savana 3500
- Resolves symptoms of low brake pedal often caused by air in the brake system
- Addresses uneven braking or vehicle pulling to one side during braking
- Helps eliminate brake squeal related to caliper malfunction
- Restores proper brake fluid flow and pressure with correct bleeder and inlet port sizes
Installation Notes and Tips
- Use silicone grease on floating caliper mounting pins to ensure smooth operation
- Always use brake fluid recommended by the vehicle manufacturer (DOT 3 or DOT 4 as specified)
- New hardware is included, but verify if mounting bolts are required separately
- Ensure proper bleeding of the brake system to avoid low pedal issues
- Do not interchange phenolic pistons with steel pistons unless specified by OEM
Quality Assurance and Warranty
This Cardone remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The phenolic pistons and oil emulsion finish contribute to durability and corrosion resistance. Installation hardware is included to facilitate proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship, ensuring reliable performance for Chevrolet Express 3500 and GMC Savana 3500 brake systems.
| Brand | Cardone |
|---|---|
| Part Number | 18-5290 |
| Position | Unloaded Caliper, Rear Left |
| Bleeder Port Size | M10x1.0 |
| Brake Caliper Finish | Oil Emulsion |
| Caliper Color | Gray |
| E-Waste | No |
| Inlet Port Size | M10x1.5 |
| Installation Hardware Included | Yes |
| Mounting Bolts Included | No |
| Package Contents | Caliper; Hardware Kit |
| Pads Included | No |
| Piston Material | Phenolic |
| Piston Size (OD) (in) | 2.12 |
| Piston Size (OD) (mm) | 53.848 |
| Product Condition | Remanufactured |
This part fits 24 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2020 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2019 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2019 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2018 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2018 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2017 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2017 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2016 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2016 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2015 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2015 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2014 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2014 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2013 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2013 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2012 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2012 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2011 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2011 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2010 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2010 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2009 | Chevrolet | Express 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
| 2009 | GMC | Savana 3500 | Cutaway Van | Rear Left | Dual rear wheels only with phenolic piston, no mounting bracket included, comes with installation hardware.; Unloaded Caliper |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
