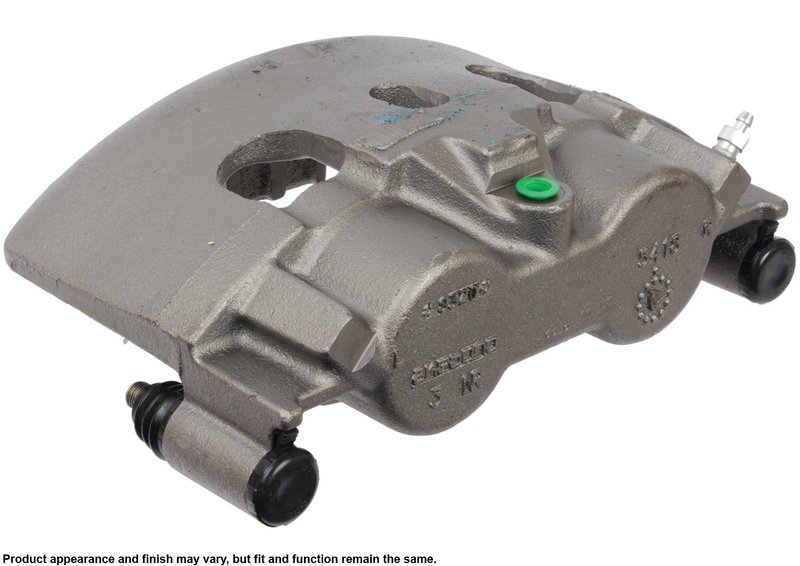

Cardone 18-5291 Disc Brake Caliper - Rear Right

Overview of Cardone Unloaded Caliper 18-5291

The Cardone Unloaded Caliper 18-5291 is a remanufactured disc brake caliper designed specifically for Chevrolet Express 3500 and GMC Savana 3500 models. Engineered to meet OE specifications, this caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with phenolic pistons
• Includes caliper and hardware kit; mounting bolts not included
• Brake caliper finish: oil emulsion with gray color
• Bleeder port size: M10x1.0; inlet port size: M10x1.5
• Two 2.12-inch (53.848 mm) phenolic pistons for effective braking
• Compatible with Chevrolet Express 3500 and GMC Savana 3500

Cardone Unloaded Caliper Product Line Details

The Cardone Unloaded Caliper product line offers remanufactured brake calipers that come without brake pads, allowing for flexible installation with existing or preferred brake pads. This line focuses on delivering reliable hydraulic brake components that meet or exceed original equipment standards. The 18-5291 caliper is part of this line, providing a quality remanufactured option for heavy-duty vans like the Chevrolet Express 3500 and GMC Savana 3500.

Technical Description and Features

This Cardone 18-5291 disc brake caliper features a phenolic piston material, which helps reduce heat transfer and corrosion compared to steel pistons. The caliper is finished with an oil emulsion coating in gray, providing corrosion resistance and durability. It includes a bleeder port sized M10x1.0 and an inlet port sized M10x1.5, compatible with standard brake lines for these vehicle models. The caliper comes with a hardware kit for installation, though mounting bolts are not included. The two pistons, each measuring 2.12 inches in diameter, ensure balanced braking force for the Chevrolet Express 3500 and GMC Savana 3500.

Common Applications and Problem Solving

• Replacement for worn or leaking brake calipers on Chevrolet Express 3500 and GMC Savana 3500
• Resolves issues related to low brake pedal caused by caliper malfunction or air in the brake system
• Addresses uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal caused by caliper or mounting pin issues
• Restores proper hydraulic pressure and brake fluid flow in brake hydraulics

Installation Notes and Tips

• Use silicone grease on floating caliper mounting pins to ensure smooth operation
• Always use brake fluid recommended by the original equipment manufacturer (OEM)
• New hardware is included with the caliper, but mounting bolts must be sourced separately
• Bleed the brake system thoroughly to remove air and prevent low brake pedal issues
• Do not interchange phenolic pistons with steel pistons unless specified by OEM

Quality Assurance and Warranty

This Cardone remanufactured caliper undergoes rigorous testing to meet OE standards for fit, form, and function. The phenolic pistons and oil emulsion finish contribute to long-lasting performance and corrosion resistance. Installation hardware is included to facilitate proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship, ensuring confidence in the replacement part for Chevrolet Express 3500 and GMC Savana 3500 vehicles.
