Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

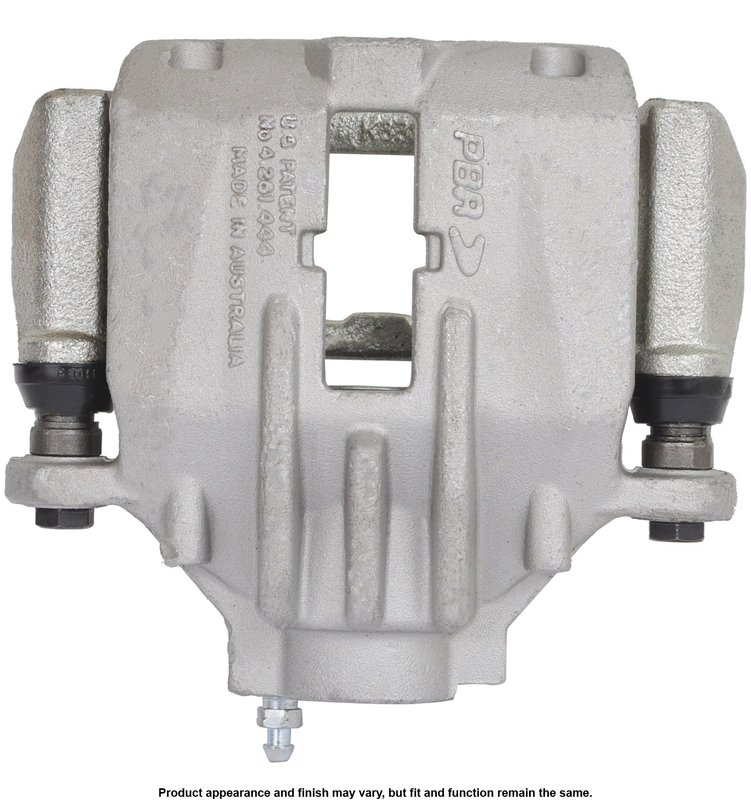

Cardone 18-B4698 Disc Brake Caliper - Rear Left
| Brand | Cardone 18-B4698 |
|---|---|
| Position | Rear Left |
| Bleeder Port Size | M10x1.0 |
| Brake Caliper Finish | Oil emulsion |
| Caliper Color | Gray |
| E-Waste | No |
| Inlet Port Size | M10x1.0 |
| Installation Hardware Included | Yes |
| Mounting Bolts Included | No |
| Package Contents | Caliper; bracket; hardware kit |
| Pads Included | No |
| Piston Material | Aluminum |
| Piston Quantity | 1 |
| Piston Size (OD) (in) | 1.772 |
| Piston Size (OD) (mm) | 45.0088 |
| Product Condition | Remanufactured |
| Product line | Unloaded Caliper w/Bracket |
| Fits | Cadillac and Chevrolet · 24 vehicles |
Remanufactured OE part. Delivers a precise fit with original-equipment engineering.
Pressure-tested performance. Built for consistent braking and dependable operation.
Complete installation kit. Includes new hardware and a bracket where applicable.
Cross-references Cadillac 88955504, Chevrolet 12530685 and Chevrolet 88895130 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Left Brake Caliper for Corvette and XLR
Cardone 18-B4698 is a remanufactured unloaded disc brake caliper with bracket for rear left applications. It is built for direct replacement on select Chevrolet Corvette and Cadillac XLR models, with OE-style fitment and pressure-tested performance.
Key Features
- Remanufactured Original Equipment-style caliper for accurate vehicle fit
- Includes bracket where applicable for a complete rear left brake service
- Aluminum piston with a 1.772 in. / 45.0088 mm bore size
- New high-temperature EPDM rubber seals for extended service life
- New bleeder screw, banjo bolt where applicable, and protective port caps
- Rust-inhibiting finish with gray oil emulsion coating
- New stainless steel hardware clips and mounting pins where applicable
- Pressure-tested for consistent brake performance
Product Details
The Cardone Unloaded Caliper w/Bracket line focuses on OE-style replacement parts that restore braking function without requiring a loaded caliper assembly. Part number 18-B4698 is a rear left disc brake caliper with a 1-piston aluminum design, M10x1.0 inlet and bleeder ports, and included bracket and hardware kit. It is remanufactured using premium replacement components and treated with a rust inhibitor to help maintain the original equipment finish.
This part cross-references Cadillac 88955504 and Chevrolet 12530685 for the same application. Search terms such as rear left brake caliper for 2004-2009 Cadillac XLR and rear left brake caliper for 1997-2004 Chevrolet Corvette match the confirmed vehicle coverage for this part number 18-B4698.
What It Helps Fix
- Brake drag or uneven rear wheel braking
- Leaking caliper seals or fluid seepage
- Corrosion on the caliper body or piston area
- Soft or inconsistent rear brake pedal response caused by caliper wear
- Noise or poor braking performance from a worn rear left caliper
Installation Notes
Compatible With 1997-2004 Chevrolet Corvette, rear left; 2004-2009 Cadillac XLR, rear left; 2005-2010 Chevrolet Corvette, rear left; 2011 Chevrolet Corvette, rear left; 2012 Chevrolet Corvette, rear left; and 2012-2013 Chevrolet Corvette, rear left. Confirm the GM brake code and piston type listed on the vehicle service information sticker before ordering. Use the correct OE-specified brake fluid, and bleed the system thoroughly after installation. Silicone grease is used on floating caliper mounting pins.
Quality Assurance
Cardone remanufactures this caliper to rigorous quality and performance standards, then pressure-tests each unit before release. New internal seals, hardware components, and protective port caps are used to support reliable installation and service life.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Chevrolet | Corvette | — | — | — | Rear Left | GM Brake Code JL9; with Soft Ride Suspension ( (FE1) ); with Metal Piston; Supplied with Mounting Bracket; GM Brake Codes are on the "Service Parts Identification" Sticker; Option Codes are on the Service Parts Identification Sticker; Installation Hardware Included; Unloaded Caliper w/Bracket |
| 2012 | Chevrolet | Corvette | — | — | — | Rear Left | GM Brake Code JL9; with Soft Ride Suspension ( (FE1) ); with Metal Piston; Supplied with Mounting Bracket; GM Brake Codes are on the "Service Parts Identification" Sticker; Option Codes are on the Service Parts Identification Sticker; Installation Hardware Included; Unloaded Caliper w/Bracket |
| 2012 | Chevrolet | Corvette | — | — | — | Rear Left | GM Brake Code J55; with Soft Ride Suspension ( (FE1) ); with Metal Piston; Supplied with Mounting Bracket; GM Brake Codes are on the "Service Parts Identification" Sticker; Option Codes are on the Service Parts Identification Sticker; Installation Hardware Included; Unloaded Caliper w/Bracket |
| 2011 | Chevrolet | Corvette | Base | 6.2L | V8 | Rear Left | Except Heavy Duty Brakes; with Metal Piston; Supplied with Mounting Bracket; Installation Hardware Included; Unloaded Caliper w/Bracket |
| 2010 | Chevrolet | Corvette | — | — | — | Rear Left | GM Brake Code JL9; with Metal Piston; Supplied with Mounting Bracket; GM Brake Codes are on the "Service Parts Identification" Sticker; Installation Hardware Included; Unloaded Caliper w/Bracket |
| 2009 | Cadillac | XLR | — | 4.6L | V8 | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 2009 | Chevrolet | Corvette | — | — | — | Rear Left | GM Brake Code JL9; with Metal Piston; Supplied with Mounting Bracket; GM Brake Codes are on the "Service Parts Identification" Sticker; Installation Hardware Included; Unloaded Caliper w/Bracket |
| 2008 | Cadillac | XLR | — | 4.6L | V8 | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 2008 | Chevrolet | Corvette | — | — | — | Rear Left | GM Brake Code JL9; with Metal Piston; Supplied with Mounting Bracket; GM Brake Codes are on the "Service Parts Identification" Sticker; Installation Hardware Included; Unloaded Caliper w/Bracket |
| 2007 | Cadillac | XLR | — | 4.6L | V8 | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 2007 | Chevrolet | Corvette | — | — | — | Rear Left | GM Brake Code JL9; with Metal Piston; Supplied with Mounting Bracket; GM Brake Codes are on the "Service Parts Identification" Sticker; Installation Hardware Included; Unloaded Caliper w/Bracket |
| 2006 | Cadillac | XLR | — | 4.6L | V8 | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 2006 | Chevrolet | Corvette | — | — | — | Rear Left | GM Brake Code JL9; with Metal Piston; Supplied with Mounting Bracket; GM Brake Codes are on the "Service Parts Identification" Sticker; Installation Hardware Included; Unloaded Caliper w/Bracket |
| 2005 | Cadillac | XLR | — | — | — | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 2005 | Chevrolet | Corvette | — | — | — | Rear Left | GM Brake Code JL9; with Metal Piston; Supplied with Mounting Bracket; GM Brake Codes are on the "Service Parts Identification" Sticker; Installation Hardware Included; Unloaded Caliper w/Bracket |
| 2004 | Cadillac | XLR | — | — | — | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 2004 | Chevrolet | Corvette | — | — | — | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 2003 | Chevrolet | Corvette | — | — | — | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 2002 | Chevrolet | Corvette | — | — | — | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 2001 | Chevrolet | Corvette | — | — | — | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 2000 | Chevrolet | Corvette | — | — | — | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 1999 | Chevrolet | Corvette | — | — | — | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 1998 | Chevrolet | Corvette | — | — | — | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| 1997 | Chevrolet | Corvette | — | — | — | Rear Left | Metal piston, mounting bracket, and installation hardware included for easy assembly.; Unloaded Caliper w/Bracket |
| No rows match your filter. | |||||||
