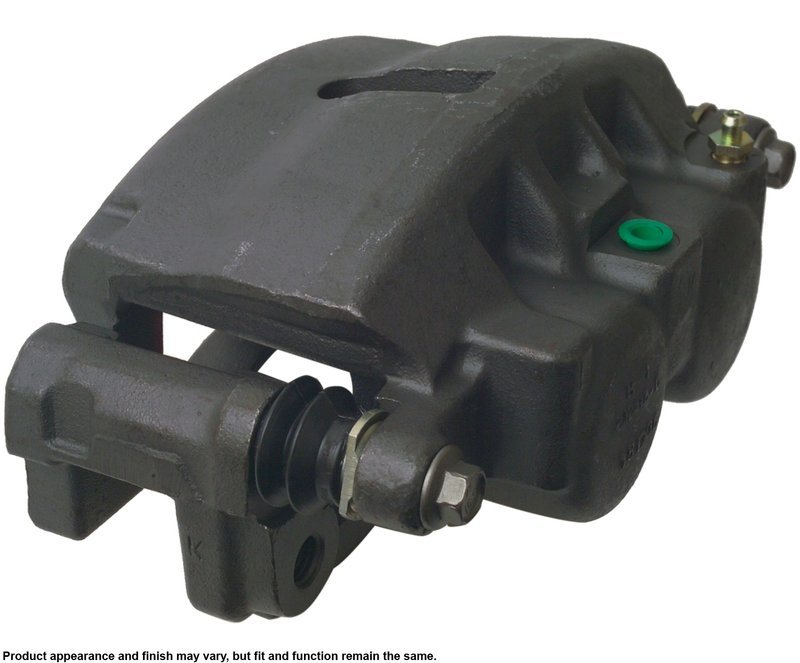

Cardone 18-B5005A Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 18-B5005A

The Cardone Unloaded Caliper w/Bracket 18-B5005A is a remanufactured disc brake caliper designed for select Buick, Chevrolet, and GMC models. Engineered to meet OE specifications, this caliper provides reliable braking performance for vehicles like the Envoy, Rainier, and Trailblazer.

• Remanufactured disc brake caliper with bracket included
• Phenolic piston material with two 1.89 inch (48.006 mm) pistons
• Oil emulsion brake caliper finish in gray color
• Includes installation hardware kit (mounting bolts not included)
• Bleeder port size M10x1.0 and inlet port size M10x1.5

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary mounting bracket and hardware kit for installation. This line is designed to simplify brake system repairs by providing a ready-to-install caliper assembly without brake pads, allowing for flexibility in pad selection. The 18-B5005A model fits specific GM SUVs and trucks, ensuring compatibility and ease of replacement.

Technical Description and Features

This Cardone disc brake caliper features phenolic pistons, which help reduce heat transfer to the brake fluid, minimizing the risk of brake fade. The caliper is finished with an oil emulsion coating in gray, providing corrosion resistance and durability. It includes two pistons with an outer diameter of 1.89 inches (48.006 mm), suitable for the braking requirements of the Buick Envoy, Chevrolet Trailblazer, and GMC Rainier. The bleeder port and inlet port sizes are M10x1.0 and M10x1.5 respectively, matching OEM specifications for proper brake line connections.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Buick Envoy, Chevrolet Trailblazer, and GMC Rainier
• Resolves issues with uneven braking or vehicle pulling to one side during braking
• Addresses symptoms of low brake pedal often caused by caliper malfunction or air in the brake system
• Eliminates brake squeal related to caliper hardware or piston problems
• Restores proper brake fluid sealing and caliper piston movement

Installation Notes and Tips

This caliper comes with a complete hardware kit for installation; however, mounting bolts are not included and must be sourced separately. Use silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly after installation to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

The Cardone 18-B5005A is a remanufactured part that meets or exceeds OEM standards for fit, form, and function. It undergoes rigorous testing to ensure reliability and performance. Installation hardware is included to facilitate proper mounting. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
