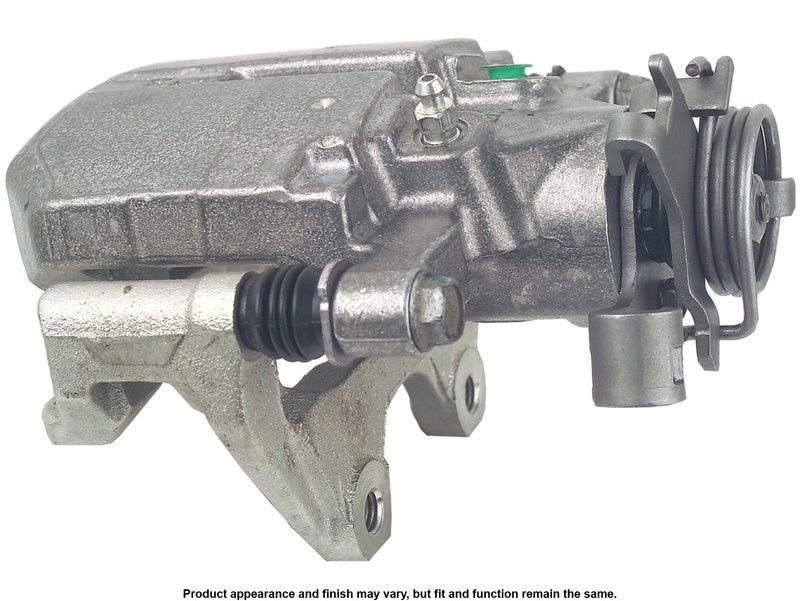

Cardone 18-B5014 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket 18-B5014

The Cardone Unloaded Caliper w/Bracket 18-B5014 is a remanufactured disc brake caliper designed specifically for Buick DTS and Cadillac Lucerne models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit for installation
• Bleeder port size: M10x1.0; inlet port size: M10x1.5
• Caliper color: gray with oil emulsion finish for corrosion resistance
• Compatible with Buick DTS and Cadillac Lucerne vehicles
• Part number 18-B5014 for precise fitment

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This configuration simplifies installation by providing all essential components except mounting bolts, which are not included. The unloaded design means brake pads are not included, allowing for flexibility in pad selection. This product line is engineered to restore braking function while maintaining OEM standards for fit and finish.

Technical Description and Features

This disc brake caliper features a single steel piston with an outer diameter of 1.62 inches (41.148 mm), providing consistent clamping force for effective braking. The caliper’s oil emulsion finish in gray offers protection against corrosion and wear. The bleeder port and inlet port sizes (M10x1.0 and M10x1.5 respectively) are designed to match OEM specifications, ensuring compatibility with the vehicle’s brake hydraulic system. Installation hardware is included to facilitate proper mounting, though mounting bolts must be sourced separately.

Common Applications and Problem Solving

• Replaces worn or leaking calipers on Buick DTS and Cadillac Lucerne
• Addresses symptoms of low brake pedal often caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side
• Eliminates brake squeal related to caliper malfunction
• Restores proper brake fluid pressure and pedal feel

Installation Notes and Tips

When installing the Cardone 18-B5014 caliper, use the included hardware kit for secure mounting. Apply silicone grease to floating caliper mounting pins as recommended to ensure smooth operation. Always use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and restore proper pedal height. Note that mounting bolts are not included and should be reused or replaced as needed.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for performance and durability. Cardone provides a limited warranty covering defects in materials and workmanship, offering assurance of product reliability when installed according to manufacturer guidelines.
