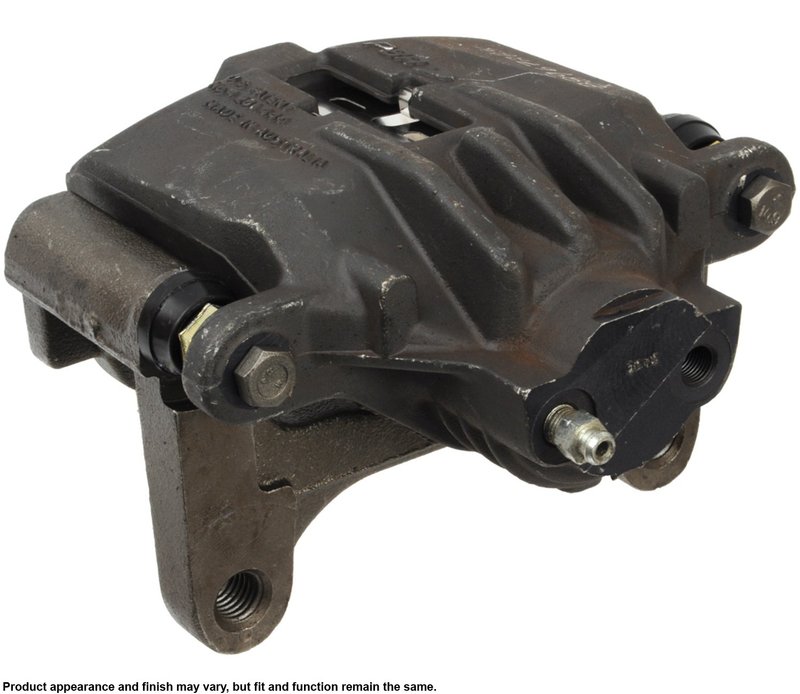

Cardone 18-B5036 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket 18-B5036

The Cardone Unloaded Caliper w/Bracket 18-B5036 is a remanufactured disc brake caliper designed for select Cadillac and Chevrolet models, including the Corvette and XLR. Engineered to meet OEM specifications, this caliper provides reliable braking performance with a durable oil emulsion finish and aluminum piston construction.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Compatible with Cadillac Corvette and Chevrolet XLR models
• Single aluminum piston with 1.651 inch (41.94 mm) diameter
• Oil emulsion gray finish for corrosion resistance
• Bleeder and inlet port size: M10x1.0
• Installation hardware included; mounting bolts not included

Cardone Unloaded Caliper w/Bracket Product Line Details

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware for installation. This line is designed to simplify brake system repairs by providing a ready-to-install caliper assembly without brake pads, allowing for flexibility in pad selection. The 18-B5036 part number is part of this line, ensuring compatibility and quality for Cadillac and Chevrolet disc brake systems.

Technical Specifications and Features

This Cardone caliper features a single aluminum piston measuring 1.651 inches in diameter, which helps reduce weight while maintaining strength and heat dissipation. The caliper is finished with an oil emulsion coating in gray to resist corrosion and extend service life. Both the bleeder and inlet ports use an M10x1.0 thread size, matching OEM brake hydraulic connections. The package includes the caliper, bracket, and a hardware kit for installation, though mounting bolts are not included. It is important to use the recommended brake fluid type as specified by the vehicle manufacturer to maintain optimal brake system performance.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Cadillac Corvette and Chevrolet XLR
• Resolves issues with uneven brake pad wear or pulling to one side during braking
• Addresses symptoms of low brake pedal often caused by air in the brake lines
• Eliminates brake squeal related to caliper malfunction or hardware wear
• Restores proper brake hydraulic pressure and pedal feel

Installation Notes and Tips

When installing the Cardone 18-B5036 caliper, ensure the use of silicone grease on floating caliper mounting pins to maintain smooth operation. Always bleed the brake system thoroughly to remove air and restore proper pedal height. Use brake fluid recommended by the original equipment manufacturer, typically DOT 3 or DOT 4, and avoid mixing fluid types. New hardware is included with the caliper, but mounting bolts must be reused or sourced separately. Verify port thread sizes (M10x1.0) for compatibility with existing brake lines.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The aluminum piston and oil emulsion finish contribute to durability and corrosion resistance. Cardone provides a limited warranty on this part, covering defects in materials and workmanship under normal use. For specific warranty terms, refer to Cardone's official documentation.
