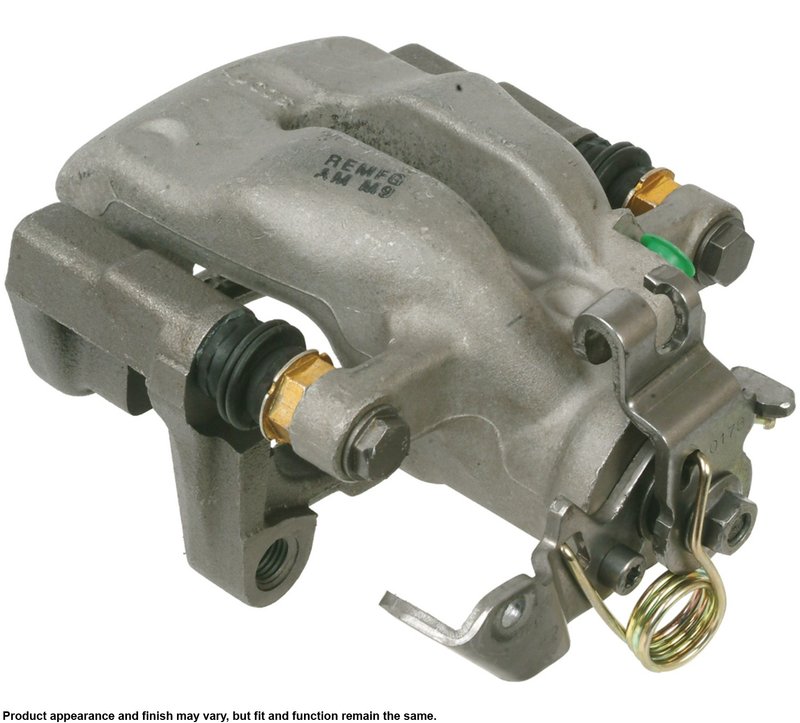

Cardone 18-B5113 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket 18-B5113

The Cardone Unloaded Caliper w/Bracket 18-B5113 is a remanufactured disc brake caliper designed specifically for Saturn Astra models. Engineered with a steel piston and finished with an oil emulsion coating, this caliper ensures reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with bracket included
• Steel piston with 1.501 inch (38.13 mm) outer diameter
• Oil emulsion brake caliper finish in gray color
• Includes installation hardware kit (mounting bolts not included)
• Bleeder port size M10x1.0 and inlet port size M10x1.5
• Compatible with Saturn Astra models

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary mounting bracket and hardware kit for installation. This line is designed to provide a cost-effective replacement option that meets original equipment specifications, focusing on durability and ease of installation. The 18-B5113 part is part of this line, ensuring compatibility and quality for Saturn Astra brake systems.

Technical Description and Features

This disc brake caliper features a single steel piston measuring 1.501 inches in diameter, providing consistent hydraulic pressure for effective braking. The caliper is coated with an oil emulsion finish in gray, which helps resist corrosion and wear over time. The bleeder port and inlet port sizes are M10x1.0 and M10x1.5 respectively, matching OEM specifications for proper brake fluid flow and maintenance. The package includes the caliper, bracket, and a hardware kit for installation, although mounting bolts are not included.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Saturn Astra vehicles
• Resolves issues with low brake pedal caused by air in the brake system
• Addresses uneven braking or vehicle pulling to one side
• Eliminates brake squeal related to caliper malfunction
• Restores proper brake fluid pressure and pedal feel

Installation Notes and Tips

When installing the Cardone 18-B5113 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be sourced separately if needed. It is recommended to use the brake fluid type specified by the vehicle manufacturer. Applying silicone grease on floating caliper mounting pins can help maintain smooth caliper movement and prevent noise. Bleed the brake system thoroughly to remove any air and ensure proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a warranty on this part to cover defects in materials and workmanship, offering assurance of its reliability and performance on Saturn Astra vehicles.
